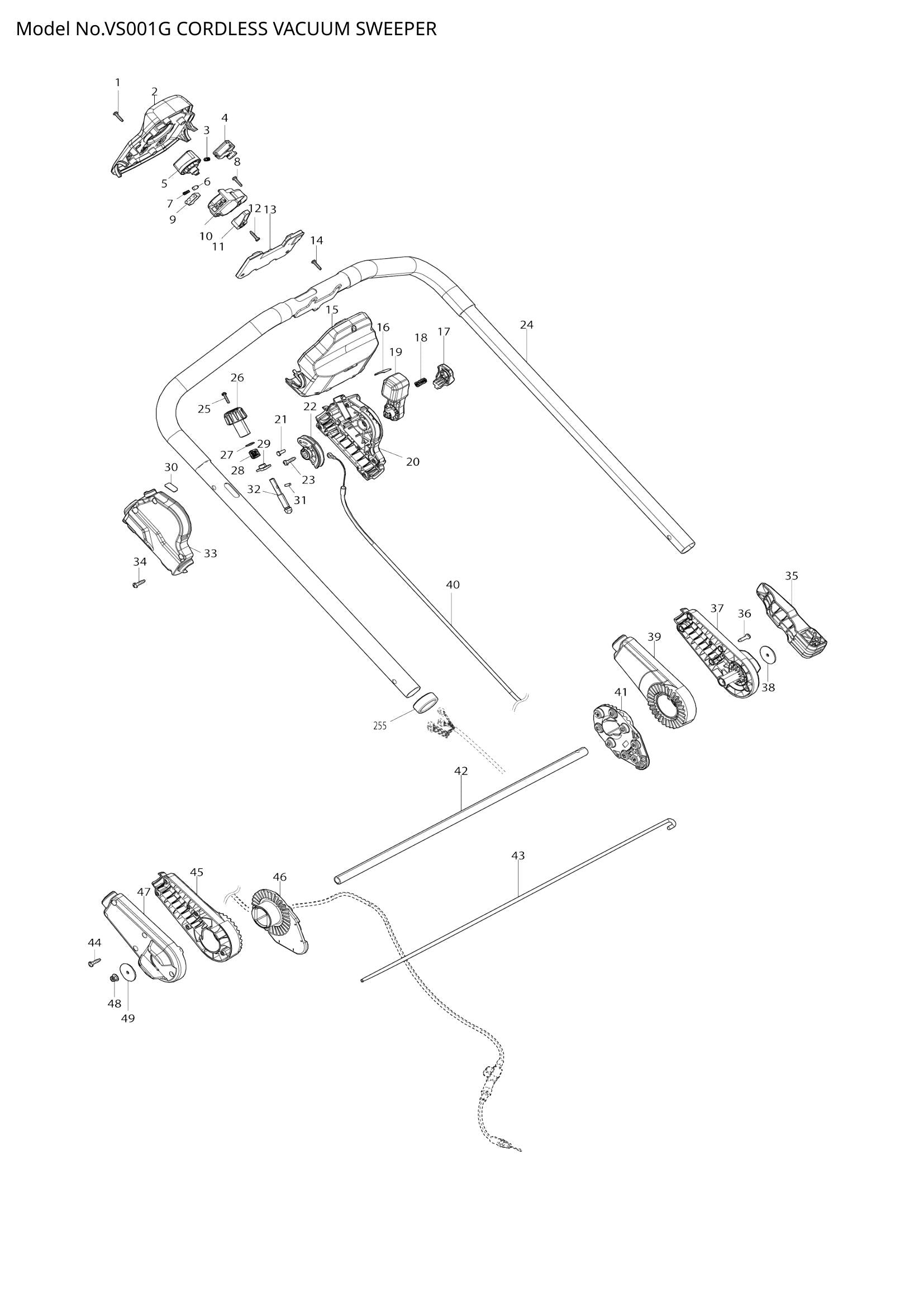

Exploded View – VS001G

Regular price: Price: €0,00
Regular price: List Price:
Sale price: Price: €0,00
Unit price: per

Quantity

Position 001 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 002 – SWITCH CASE SET (SKU: 1830P2-4)
Position 003 – COMPRESSION SPRING 4 (SKU: 232386-6)
Position 004 – LOCK OFF BUTTON (SKU: 413U45-9)
Position 005 – SWITCH DIAL (SKU: 413U44-1)
Position 006 – PLUNGER CAP (SKU: 347B85-0)
Position 007 – COMPRESSION SPRING 2.4 (SKU: 233188-3)
Position 008 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 009 – SWITCH UNIT (SKU: 632V26-2)
Position 010 – SWITCH LEVER CASE (SKU: 413U43-3)
Position 011 – SWITCH LEVER (SKU: 413U46-7)
Position 012 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 013 – SWTCH CIRCUIT (SKU: 620J57-1)
Position 014 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 015 – SWITCH CASE SET (SKU: 1830P2-4)
Position 016 – OPERATIONAL INDICATION LAB (SKU: 8074D9-3)
Position 017 – BUTTON (SKU: 413U51-4)
Position 018 – COMPRESSION SPRING 5 (SKU: 234013-1)
Position 019 – SIDE BRUSH LEVER (SKU: 413U50-6)
Position 020 – LEVER CASE SET (SKU: 1830T9-8)
Position 021 – FLAT FILLISTER HEAD PIN 4 (SKU: 256A47-0)
Position 022 – CABLE GUIDE (SKU: 413U49-1)
Position 023 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 024 – HANDLE (SKU: 327C57-7)
Position 025 – PAN HEAD SCREW M3X16 (SKU: 911028-2)
Position 026 – THUMB SCREW DIAL (SKU: 413U48-3)
Position 027 – FLAT WASHER 6 (SKU: 941151-9)
Position 028 – COMPRESSION SPRING 11 (SKU: 232840-0)
Position 029 – WELD NUT M8 TYPE T (SKU: 252335-7)
Position 030 – OPERATIONAL INDICATION LAB (SKU: 8074E1-6)
Position 031 – PIN 3 (SKU: 256255-7)
Position 032 – DIAL SHAFT M8 (SKU: 327C58-5)
Position 033 – LEVER CASE SET (SKU: 1830T9-8)
Position 034 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 035 – HANDLE LEVER ASSEMBLY (SKU: 122F51-0)
Position 036 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 037 – HANDLE CAM SET (SKU: 1830G6-3)
Position 038 – FLAT WASHER 5 (SKU: 267136-0)
Position 039 – HANDLE CAM SET (SKU: 1830G6-3)
Position 040 – LINK CABLE B (SKU: 162C92-6)
Position 041 – HANDLE CAM B (SKU: 413U40-9)
Position 042 – HANDLE PIPE (SKU: 327C59-3)
Position 043 – HANDLE LEVER LINK M5 (SKU: 327C60-8)
Position 044 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 045 – HANDLE CAM SET (SKU: 1830G6-3)
Position 046 – HANDLE CAM B (SKU: 413U40-9)
Position 047 – HANDLE CAM SET (SKU: 1830G6-3)
Position 048 – COLLARED HEX.LOCK NUT M5-8 (SKU: 252286-4)
Position 049 – FLAT WASHER 5 (SKU: 267136-0)
Position 050 – PAN HEAD SCREW M3X8 (SKU: 911007-0)
Position 051 – FLAT WASHER 3 (SKU: 253821-1)
Position 052 – MAIN BRUSH DIAL (SKU: 413U60-3)
Position 053 – PIN 3 (SKU: 268182-6)
Position 054 – BATTERY COVER (SKU: 413U57-2)
Position 055 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 056 – TOP COVER ASSEMBLY (SKU: 137135-5)
Position 057 – OPERATIONAL INDICATION LAB (SKU: 8074E3-2)
Position 059 – TOP COVER PLATE (SKU: 347B86-8)
Position 060 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 061 – LATCH (SKU: 413U58-0)
Position 062 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 063 – BATTERY HOOK BASE (SKU: 413U59-8)
Position 064 – COMPRESSION SPRING 8 (SKU: 234391-9)
Position 065 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 066 – LEAF SPRING (SKU: 232818-3)
Position 067 – VS001G NAME PLATE (SKU: 8143U6-5)
Position 068 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 069 – POWER SUPPLY CORD UNIT (SKU: 699233-8)
Position 070 – BATTERY HOLDER SET (SKU: 1830F8-2)
Position 071 – TERMINAL UNIT (SKU: 632R99-1)
Position 072 – BATTERY HOLDER SET (SKU: 1830F8-2)
Position 073 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 074 – CONTROLLER (SKU: 620J56-3)
Position 075 – SEAL B (SKU: 422A72-5)
Position 076 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 077 – HOOK (SKU: 162C93-4)
Position 078 – SPONGE CASE ASSEMBLY (SKU: 137060-0)
Position 079 – SPONGE SHEET (SKU: 422B41-2)
Position 080 – SEAL A (SKU: 422A71-7)
Position 082 – DUST CONTAINER ASSEMBLY (SKU: 137059-5)
Position 083 – TAPPING SCREW 5X20 (SKU: 266021-4)
Position 084 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 085 – DUCT UPPER (SKU: 413U13-2)
Position 086 – PRE FILTER (SKU: 162C89-5)
Position 088 – SEAL RING B (SKU: 422A68-6)
Position 089 – SEAL RING A (SKU: 422A69-4)
Position 090 – FILTER HOLDER ASSMBLY (SKU: 137057-9)
Position 091 – MOTOR COMPLETE (SKU: 141S69-0)
Position 092 – MOTOR COVER (SKU: 413U12-4)
Position 093 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 094 – LEAD UNIT (SKU: 638A81-6)
Position 095 – DUCT LOWER COMPLETE (SKU: 141S67-4)
Position 096 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 097 – HANDLE COVER (SKU: 413U04-3)
Position 098 – LED CIRCUIT (SKU: 620J60-2)
Position 099 – RUBBER CAP (SKU: 422A66-0)
Position 100 – REFLECTOR (SKU: 413U05-1)
Position 101 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 102 – LENS (SKU: 413U06-9)
Position 103 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 104 – TUBE COMPLETE (SKU: 162C91-8)
Position 105 – BRUSH PLATE LINK (SKU: 327C55-1)
Position 106 – PLATE (SKU: 346525-3)
Position 107 – SIDE COVER SET (SKU: 1830T8-0)
Position 108 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 109 – SIDE LIP L (SKU: 413U02-7)
Position 110 – PAN HEAD SCREW M4X16 (SKU: 911129-6)
Position 111 – SIDE COVER SET (SKU: 1830T8-0)
Position 112 – SIDE LIP R (SKU: 413U01-9)
Position 113 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 114 – PAN HEAD SCREW M4X16 (SKU: 911129-6)
Position 115 – INDICATION LABEL (SKU: 8074E5-8)
Position 116 – REAR LIP (SKU: 413U03-5)
Position 117 – PAN HEAD SCREW M4X16 (SKU: 911129-6)
Position 118 – PAN HEAD SCREW M4X16 (SKU: 911129-6)
Position 119 – FRONT LIP (SKU: 413U00-1)
Position 120 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 121 – SILENCER SET (SKU: 1830G2-1)
Position 122 – SUPPORT RING (SKU: 422376-9)
Position 123 – FAN COVER (SKU: 161804-6)
Position 124 – HEX. NUT M6 (SKU: 252268-6)
Position 125 – WASHER 6 (SKU: 322407-3)
Position 126 – FAN 94 (SKU: 241851-4)
Position 127 – FLANGE (SKU: 313062-2)
Position 128 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 129 – FAN BASE (SKU: 456736-3)
Position 130 – ROTOR (SKU: 619517-8)
Position 131 – STATOR (SKU: 629C31-4)
Position 132 – CONTROLLER B (SKU: 620J58-9)
Position 133 – TAPPING SCREW PT 2X6 (SKU: 266490-9)
Position 134 – FLAT HEAD SCREW M3X6 (SKU: 652069-6)
Position 135 – MOTOR HOUSING SET (SKU: 1830G7-1)
Position 136 – MOTOR HOUSING SET (SKU: 1830G7-1)
Position 137 – LEAD UNIT (SKU: 632V04-2)
Position 138 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 139 – SUPPORT A (SKU: 424837-5)
Position 140 – SILENCER SET (SKU: 1830G2-1)
Position 141 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 142 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 143 – CABLE PLATE (SKU: 347B83-4)
Position 144 – CAP (SKU: 422A89-8)
Position 145 – ROLLER COVER (SKU: 413U29-7)
Position 146 – LINK CABLE A (SKU: 162C90-0)
Position 147 – LINK CABLE ROLLER (SKU: 413U28-9)
Position 148 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 149 – PIN 5 (SKU: 256186-0)
Position 150 – FLAT WASHER 8 (SKU: 941202-8)
Position 151 – RETAINING RING (EXT) S-8 (SKU: 961004-6)
Position 152 – ROLLER (SKU: 413U26-3)
Position 154 – PAN HEAD SCREW M4X20 (SKU: 911137-7)
Position 155 – FLAT WASHER 4 (SKU: 267491-0)
Position 156 – PULLEY HOLDER (SKU: 347B84-2)
Position 157 – SLEEVE 4 (SKU: 257A22-9)
Position 158 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 159 – GUIDE PULLEY 6.2-19.7 (SKU: 222211-9)
Position 160 – ROUND BELT 6-860 (SKU: 225110-4)
Position 161 – BALL BEARING 6809LLB (SKU: 211293-6)
Position 162 – ROUND PULLEY 6.2-149.6 (SKU: 222210-1)
Position 163 – BALL BEARING 6808LLB (SKU: 210229-2)
Position 164 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 165 – PIN 3 (SKU: 256267-0)
Position 166 – SIDE BRUSH SHAFT (SKU: 327C56-9)
Position 167 – COMPRESSION SPRING 14 (SKU: 232841-8)
Position 168 – FLAT WASHER 10 (SKU: 941252-3)
Position 169 – STOP RING E-7 (SKU: 961013-5)
Position 171 – BRUSH LOCK (SKU: 413U27-1)
Position 173 – STOP RING E-7 (SKU: 961013-5)
Position 174 – SIDE BRUSH REPAIR SET (SKU: 1830S6-7)
Position 175 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 176 – MOTOR CASE SET (SKU: 1830G8-9)
Position 177 – ROTOR (SKU: 619826-5)
Position 178 – LEAD UNIT (SKU: 632V03-4)
Position 179 – FLAT HEAD SCREW M3X6 (SKU: 652069-6)
Position 180 – STATOR (SKU: 629C30-6)
Position 181 – CONTROLLER B (SKU: 620J59-7)
Position 182 – TAPPING SCREW PT 2X6 (SKU: 266490-9)
Position 183 – GEAR ASSEMBLY (SKU: 122F46-3)
Position 184 – MOTOR CASE SET (SKU: 1830G8-9)
Position 185 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 186 – PULLEY SHAFT R (SKU: 413U20-5)
Position 187 – BALL BEARING 6804LLU (SKU: 211333-0)
Position 188 – BEARING HOLDER R (SKU: 413U19-0)
Position 189 – PULLEY SHAFT F (SKU: 413U22-1)
Position 190 – DIAL SHAFT (SKU: 327C53-5)
Position 191 – HEX. FLANGE LOCK NUT M6-10 (SKU: 252301-4)
Position 192 – DIAL BASE (SKU: 347B81-8)
Position 193 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 194 – FLAT WASHER 8 (SKU: 253139-0)
Position 195 – STOP RING E-6 (SKU: 961012-7)
Position 196 – BRUSH PLATE R (SKU: 347B78-7)
Position 197 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 198 – PAN HEAD SCREW M4X14 (SKU: 911123-8)
Position 199 – COLLARED SLEEVE 4C (SKU: 257A19-8)
Position 200 – TENSION PLATE (SKU: 347B79-5)
Position 201 – TENSION SPRING 9 (SKU: 232839-5)
Position 202 – TAPPING SCREW 4X18 (SKU: 251599-0)
Position 203 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 204 – HEIGHT ADJUST PLATE (SKU: 347B80-0)
Position 205 – HEIGHT INDICATOR (SKU: 413U23-9)
Position 206 – RUBBER RING 8 (SKU: 262212-5)
Position 207 – FLAT WASHER 8 (SKU: 253139-0)
Position 208 – COLLARED SLEEVE 4B (SKU: 257A20-3)
Position 209 – KEY 5 (SKU: 254220-0)
Position 210 – PAN HEAD SCREW M4X30 (SKU: 911159-7)
Position 211 – RETAINING RING (EXT) S-12 (SKU: 961052-5)
Position 212 – PULLEY 14-33.6 (SKU: 222206-2)
Position 213 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 214 – PULLEY 17.5-33.6 (SKU: 222208-8)
Position 215 – BALL BEARING 6804LLU (SKU: 211333-0)
Position 217 – COLLARED SLEEVE 4A (SKU: 257A18-0)
Position 218 – ROUND PULLEY 6.2-45.7 (SKU: 222209-6)
Position 219 – BALL BEARING 698DDW (SKU: 211166-3)
Position 220 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 221 – PULLEY 17-26.0 (SKU: 222207-0)
Position 222 – BODY COMPLETE (SKU: 141V27-4)
Position 223 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 224 – TAPPING SCREW 4X18 (SKU: 251599-0)
Position 225 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 226 – BRUSH PLATE L (SKU: 347B82-6)
Position 227 – BRUSH SHAFT (SKU: 327C54-3)
Position 228 – BALL BEARING 6900DDW (SKU: 210069-8)
Position 229 – COMPRESSION SPRING 12 (SKU: 234245-0)
Position 230 – FLAT WASHER 10 (SKU: 267047-9)
Position 231 – SLEEVE 17 (SKU: 257A21-1)
Position 232 – STOP RING E-7 (SKU: 961013-5)
Position 233 – BALL BEARING 6800LLU (SKU: 211485-7)
Position 234 – BEARING HOLDER L (SKU: 413U24-7)
Position 235 – MAIN BRUSH REPAIR SET (SKU: 1830S5-9)
Position 236 – CASTER PLATE (SKU: 347B77-9)
Position 237 – CASTER 100 (SKU: 162C86-1)
Position 238 – HEX. BOLT M8X30 (SKU: 921452-1)
Position 239 – TIRE PLATE R (SKU: 162D12-6)
Position 240 – TAPPING SCREW 5X20 (SKU: 266021-4)
Position 241 – PAN HEAD SCREW M4X6 (SKU: 911103-4)
Position 242 – EARTH LINE 90 (SKU: 649153-6)
Position 243 – REAR TIRE (SKU: 413U08-5)
Position 244 – H.S. BUTTON HEAD BOLT M5X16 (SKU: 265487-5)
Position 245 – FLAT WASHER 20 (SKU: 267380-9)
Position 246 – BALL BEARING 6904LLU (SKU: 211323-3)
Position 247 – RETAINING RING S-20 (SKU: 961060-6)
Position 248 – REAR TIRE CAP (SKU: 413U09-3)
Position 249 – TIRE PLATE L (SKU: 162D13-4)
Position 250 – TAPPING SCREW 5X20 (SKU: 266021-4)
Position 251 – H.S. BUTTON HEAD BOLT M5X16 (SKU: 265487-5)
Position 252 – DUST CONTAINER SHAFT (SKU: 327C51-9)
Position 253 – H.S. BUTTON HEAD BOLT M5X16 (SKU: 265487-5)
Position 254 – SHAFT PLATE (SKU: 347C05-0)
Position 255 – LINE FILTER (SKU: 688289-6)

Item added to your cart

Your cart is empty

Have an account?

Exploded View – VS001G

Exploded View – VS001G

Customer Reviews

Country/region

Language

Country/region

Exploded View – VS001G

Exploded View – VS001G

Customer Reviews

SIGN UP AND SAVE 10%
