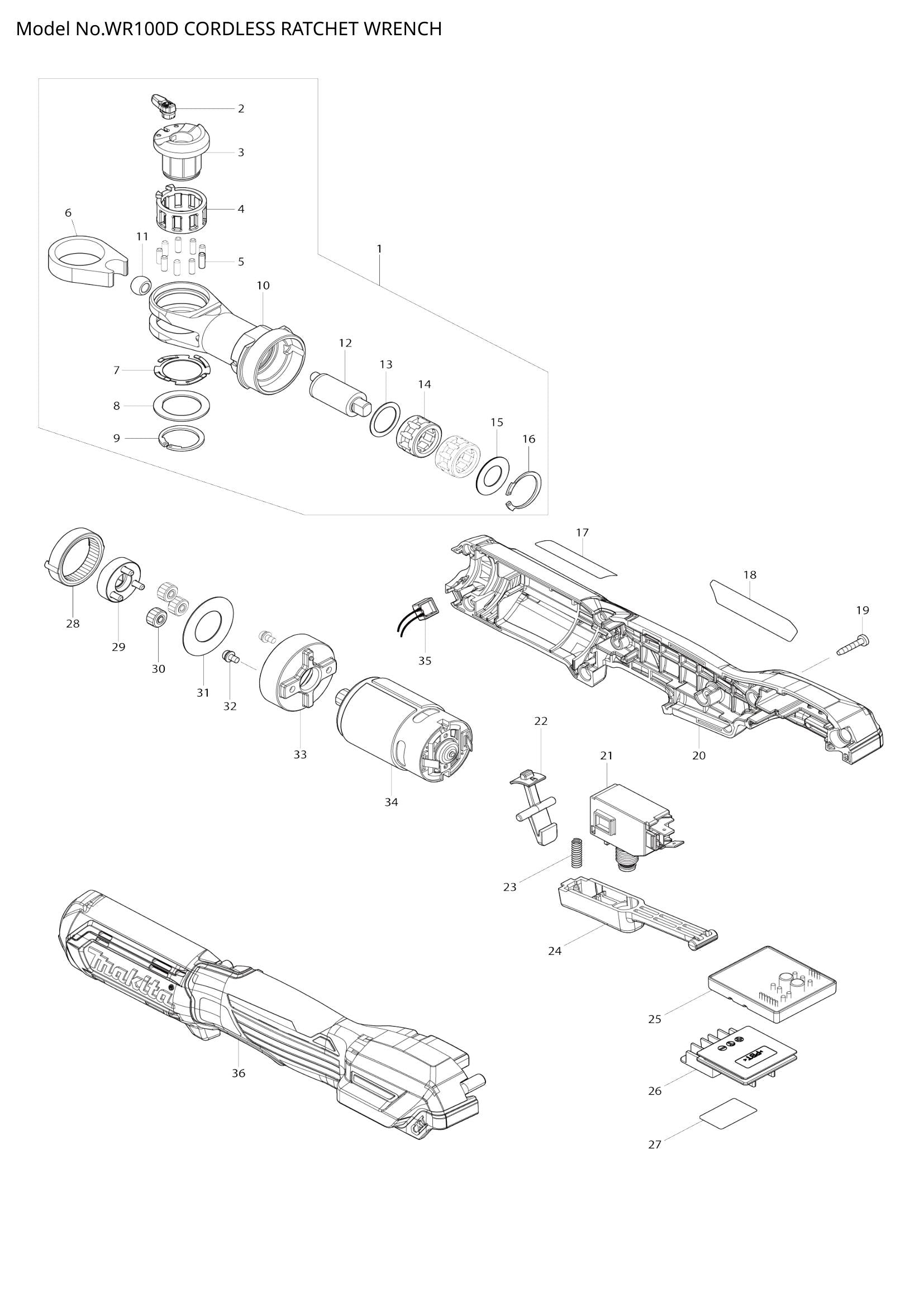

Exploded View – WR100D

Quantity

Position 018 – WR100D NAME PLATE (SKU: 855X38-2)
Position 019 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 020 – HOUSING SET (SKU: 183L81-2)
Position 021 – SWITCH C3JW-6BM-PN (SKU: 651391-8)
Position 022 – LOCK LEVER (SKU: 459422-5)
Position 023 – COMPRESSION SPRING 4 (SKU: 232353-1)
Position 024 – SWITCH LEVER (SKU: 459421-7)
Position 025 – CONTROLLER (SKU: 620A96-7)
Position 026 – TERMINAL (SKU: 644813-5)
Position 027 – WR100D SERIAL NO. LABEL (SKU: 855X44-7)
Position 028 – INTERNAL GEAR 41 (SKU: 226897-1)
Position 029 – CARRIER COMPLETE (SKU: 140K71-2)
Position 030 – SPUR GEAR 14 (SKU: 226898-9)
Position 031 – FLAT WASHER 18 (SKU: 267235-8)
Position 032 – P.H.SCREW M3X6 WITH WR (SKU: 265A38-0)
Position 033 – INTERNAL GEAR CASE (SKU: 310953-8)
Position 034 – DC MOTOR (SKU: 629413-2)
Position 035 – LED CIRCUIT (SKU: 620B10-9)
Position 036 – HOUSING SET (SKU: 183L81-2)
