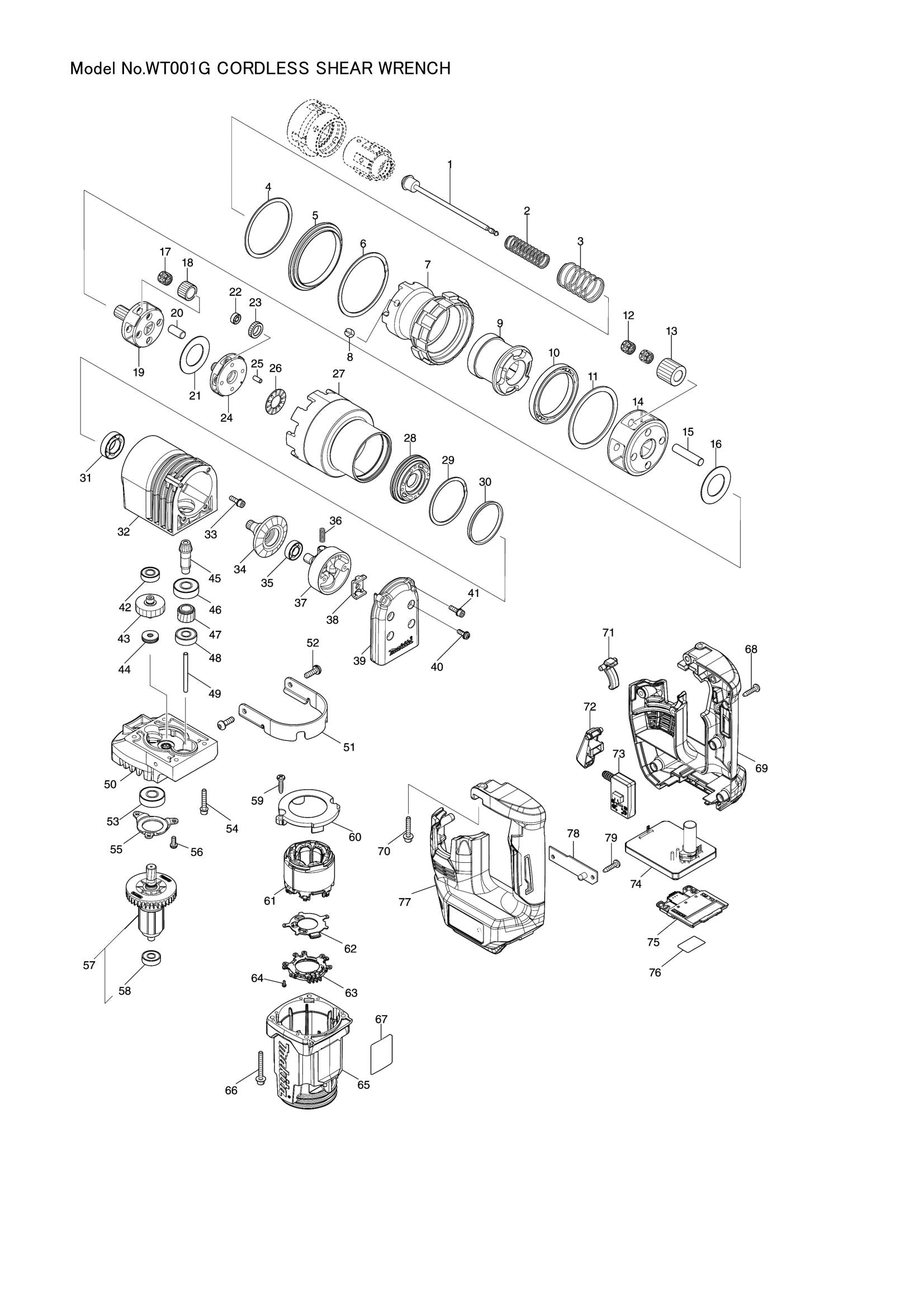

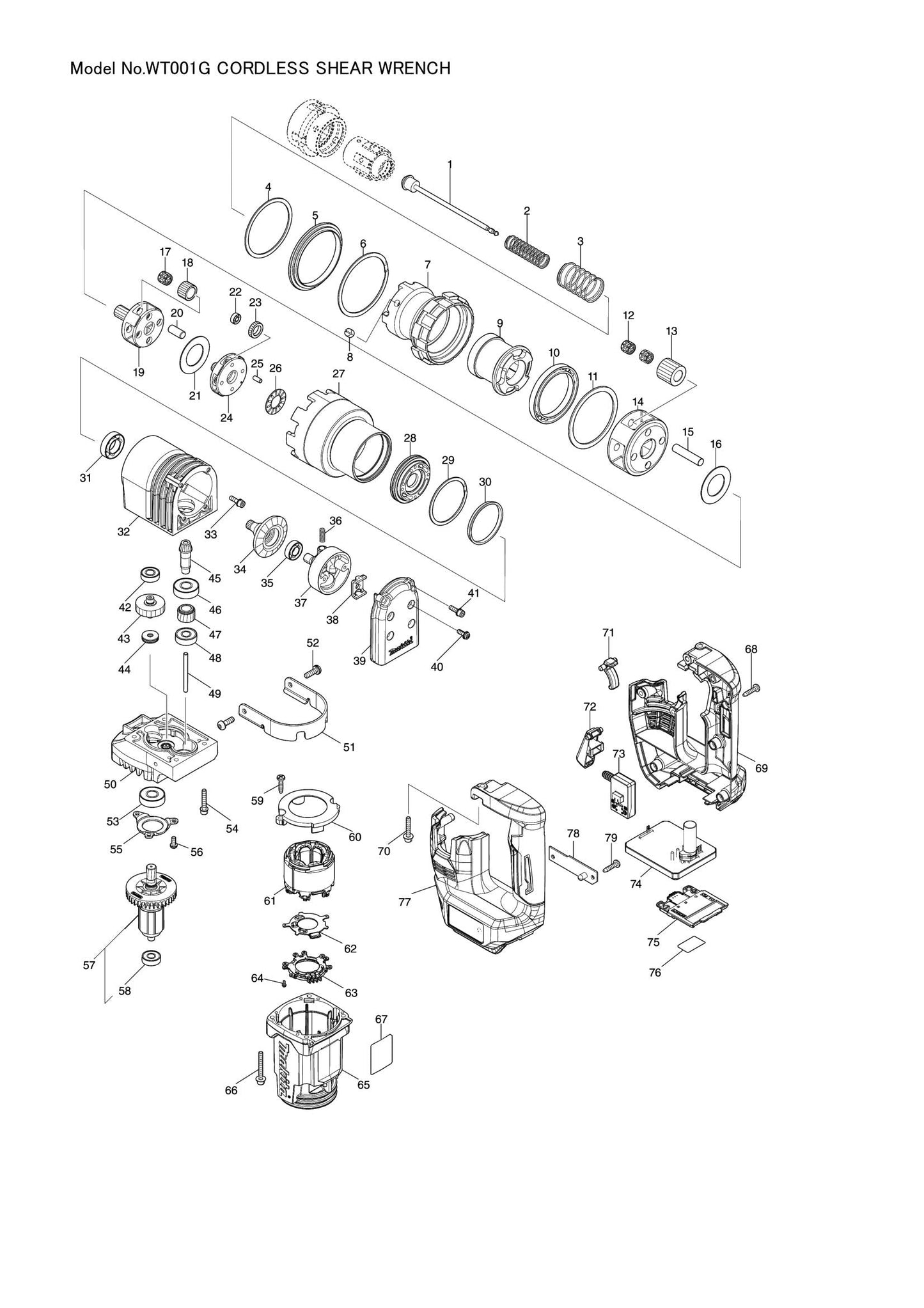

• WT001G exploded view

Exploded View – WT001G

Exploded View – WT001G

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – CHIP ROD (SKU: 165074-9)
  • Position 002 – COMPRESSION SPRING 13 (SKU: 233087-9)
  • Position 003 – COMPRESSION SPRING 25 (SKU: 234143-8)
  • Position 004 – SPIRO LOCK WASHER 62 (SKU: 257941-3)
  • Position 005 – SPACER (SKU: 327C72-1)
  • Position 006 – SPIRO LOCK WASHER 70 (SKU: 257940-5)
  • Position 007 – OUTER SUPPORT (SKU: 327C74-7)
  • Position 009 – INNER SUPPORT COMPLETE (SKU: 153872-3)
  • Position 010 – BALL BEARING 6810 (SKU: 211611-8)
  • Position 011 – FLAT WASHER 60 (SKU: 267282-9)
  • Position 012 – NEEDLE CAGE 810 (SKU: 212954-1)
  • Position 013 – SPUR GEAR 20 (SKU: 227117-6)
  • Position 014 – CARRIER (SKU: 310147-5)
  • Position 015 – PIN 8 (SKU: 256228-0)
  • Position 016 – WASHER 2542 (SKU: 216207-0)
  • Position 017 – NEEDLE CAGE 810 (SKU: 212954-1)
  • Position 018 – SPUR GEAR 25 (SKU: 226270-5)
  • Position 019 – SPUR GEAR 11 (SKU: 226275-5)
  • Position 020 – PIN 8 (SKU: 256227-2)
  • Position 021 – WASHER 2542 (SKU: 216207-0)
  • Position 022 – BALL BEARING 694 (SKU: 211044-7)
  • Position 023 – SPUR GEAR 25 (SKU: 226269-0)
  • Position 024 – SPUR GEAR 14 (SKU: 226273-9)
  • Position 025 – PIN 4 (SKU: 256226-4)
  • Position 026 – THRUST NEEDLE GAUGE 1528 (SKU: 216403-0)
  • Position 027 – INTERNAL GEAR 53-66 (SKU: 227118-4)
  • Position 028 – BRACKET (SKU: 327C73-9)
  • Position 029 – SPIRO LOCK WASHER 52 (SKU: 257929-3)
  • Position 030 – RING 44 (SKU: 257186-3)
  • Position 031 – BALL BEARING 6902 (SKU: 211221-1)
  • Position 032 – GEAR CASE COMPLETE (SKU: 141T01-0)
  • Position 034 – GEAR 14-41 (SKU: 226812-5)
  • Position 035 – BALL BEARING 699 (SKU: 211082-9)
  • Position 036 – COMPRESSION SPRING 4 (SKU: 233098-4)
  • Position 037 – ROD SUPPORTER (SKU: 312E62-9)
  • Position 038 – STOPPER PLATE (SKU: 344062-1)
  • Position 039 – REAR COVER (SKU: 413T74-6)
  • Position 040 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
  • Position 042 – BALL BEARING 698VV (SKU: 210013-5)
  • Position 043 – HELICAL GEAR 30 (SKU: 226651-3)
  • Position 045 – SPIRAL BEVEL GEAR 12 (SKU: 226711-1)
  • Position 046 – BALL BEARING 6000LLB (SKU: 211097-6)
  • Position 047 – HELICAL GEAR 18 (SKU: 226476-5)
  • Position 048 – BALL BEARING 608LLB (SKU: 211031-6)
  • Position 049 – PIN 4 (SKU: 256225-6)
  • Position 050 – GEAR HOUSING COMPLETE (SKU: 141T00-2)
  • Position 051 – HOOK (SKU: 347B90-7)
  • Position 053 – BALL BEARING 6000LLB (SKU: 211097-6)
  • Position 055 – BEARING RETAINER (SKU: 344470-6)
  • Position 057 – ROTOR ASS'Y (SKU: 519831-1)
  • Position 058 – BALL BEARING 607LB (SKU: 211023-5)
  • Position 059 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 060 – BAFFLE PLATE (SKU: 458306-4)
  • Position 061 – STATOR (SKU: 629C12-8)
  • Position 062 – CONTROLLER B (SKU: 620K96-7)
  • Position 063 – LEAD UNIT (SKU: 638A32-9)
  • Position 064 – PAN HEAD SCREW M2X6 (SKU: 652119-7)
  • Position 065 – MOTOR HOUSING (SKU: 458302-2)
  • Position 067 – WT001G NAME PLATE (SKU: 8141X7-2)
  • Position 068 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 069 – HANDLE SET (SKU: 1830C8-1)
  • Position 070 – H.S.H.BOLT M4X25 WITH WG (SKU: 922149-5)
  • Position 072 – SWITCH LEVER (SKU: 458303-0)
  • Position 073 – SWITCH C3XA-3PSPM-1 (SKU: 650033-1)
  • Position 074 – CONTROLLER (SKU: 620M98-5)
  • Position 075 – TERMINAL UNIT (SKU: 632P64-8)
  • Position 076 – WT001G SERIAL NO. LABEL (SKU: 8141Y7-9)
  • Position 077 – HANDLE SET (SKU: 1830C8-1)
  • Position 078 – LED CIRCUIT (SKU: 620809-0)
  • Position 079 – TAPPING SCREW 4X18 (SKU: 265995-6)
