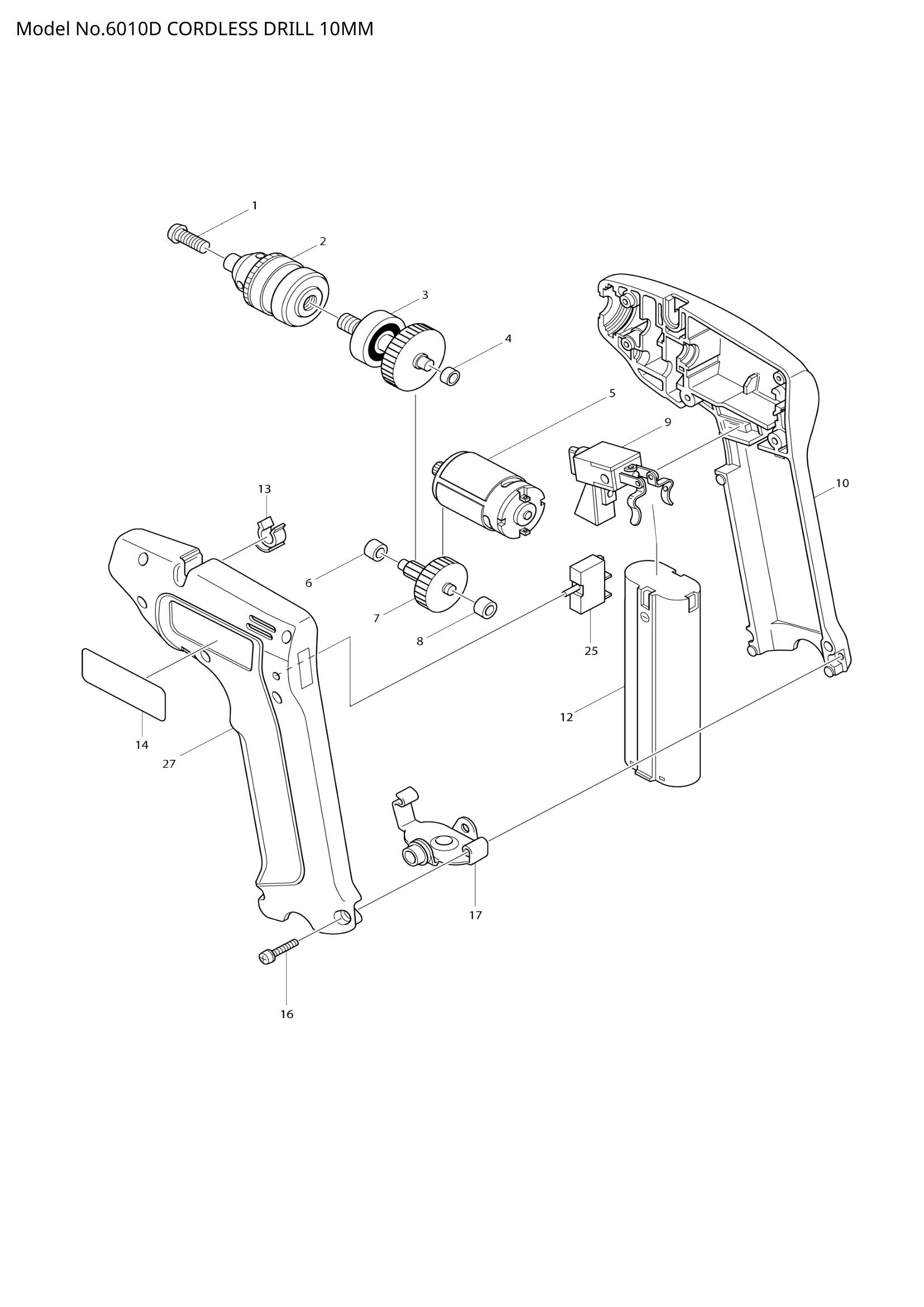

6010D exploded view

Roll over image to zoom in Click on image to zoom

6010D exploded view

Position 004 – PLANE BEARING 5 (SKU: 214017-9)
Position 006 – PLANE BEARING 3 (SKU: 214016-1)
Position 007 – GEAR COMPLETE 13-58 (SKU: 226048-6)
Position 008 – PLANE BEARING 3 (SKU: 214016-1)
Position 013 – HOLDER 6 (SKU: 411640-3)
Position 014 – NAME PLATE 6010D (SKU: 815285-3)
Position 016 – PAN HEAD SCREW M4X22 (SKU: 911143-2)
Position 402 – BATTERY COVER (SKU: 414938-7)
