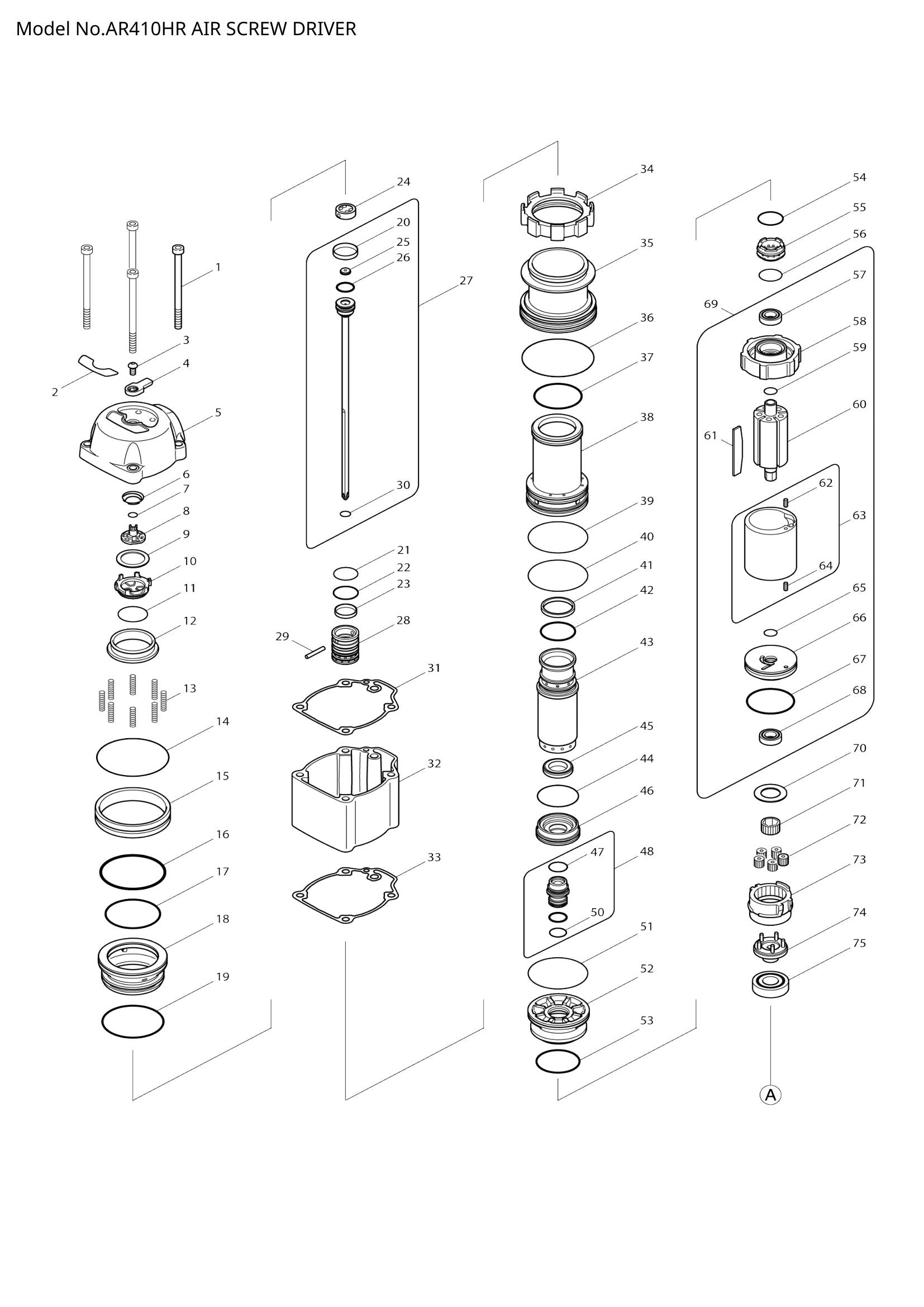

Exploded View – AR410HR

Share this product

Position 001 – HEX SOCKET HEAD BOLT M5X80 (SKU: 266431-5)
Position 002 – INDICATION LABEL (SKU: 816897-5)
Position 003 – H.S. BUTTON HEAD BOLT M4X8 (SKU: 266430-7)
Position 004 – KNOB (SKU: 450334-5)
Position 005 – TOP CAP (SKU: 318233-6)
Position 006 – CONICALCOMPRESSION SPRING (SKU: 233962-9)
Position 007 – O-RING 6 (SKU: 213045-1)
Position 008 – CHANGE VALVE (SKU: 162263-7)
Position 009 – FLAT WASHER 19 (SKU: 267365-5)
Position 010 – REAR CUSHION (SKU: 424149-6)
Position 011 – O RING 22 (SKU: 213373-4)
Position 012 – SEAL RING (SKU: 424072-5)
Position 013 – COMPRESSION SPRING 4 (SKU: 234079-1)
Position 014 – O-RING 54 (SKU: 213496-8)
Position 015 – CYLINDER STAY (SKU: 331851-3)
Position 016 – O RING 47 (SKU: 213145-7)
Position 017 – O RING 40 (SKU: 213143-1)
Position 018 – HEAD VALVE (SKU: 450306-0)
Position 019 – O-RING 45 (SKU: 213144-9)
Position 020 – RUBBER RING 16 (SKU: 262146-2)
Position 021 – O RING 17 (SKU: 213265-7)
Position 022 – O RING 18 (SKU: 213275-4)
Position 023 – RUBBER RING 16 (SKU: 262145-4)
Position 024 – PISTON CAP (SKU: 324951-6)
Position 025 – REAR CUSHION (SKU: 424151-9)
Position 026 – O-RING 11 (SKU: 213140-7)
Position 028 – MAIN PISTON (SKU: 325592-1)
Position 029 – PIN 3 (SKU: 268227-0)
Position 030 – O RING 7 (SKU: 213026-5)
Position 031 – TOP CAP GASKET (SKU: 162260-3)
Position 033 – TOP CAP GASKET (SKU: 162260-3)
Position 034 – CYLINDER SEAL (SKU: 424073-3)
Position 035 – OUTER CYLINDER (SKU: 450304-4)
Position 036 – O-RING 54 (SKU: 213496-8)
Position 037 – O-RING 31.5 (SKU: 213497-6)
Position 038 – SEPARATER (SKU: 450303-6)
Position 039 – O-RING 45 (SKU: 213495-0)
Position 040 – O-RING 45 (SKU: 213495-0)
Position 041 – RUBBER RING 23 (SKU: 262140-4)
Position 042 – O-RING 25 (SKU: 213987-9)
Position 043 – CYLINDER (SKU: 331845-8)
Position 044 – O-RING 30 (SKU: 213989-5)
Position 045 – CUSHION RING (SKU: 424171-3)
Position 046 – CUSHION GUIDE (SKU: 324949-3)
Position 047 – O-RING 12.5 (SKU: 213185-5)
Position 048 – FRONT CUSHION ASS'Y (SKU: 135211-9)
Position 050 – O RING 12 (SKU: 213118-0)
Position 051 – O-RING 45 (SKU: 213495-0)
Position 052 – OUTER SEPARATER (SKU: 450302-8)
Position 053 – O-RING 31.5 (SKU: 213990-0)
Position 054 – O RING 17 (SKU: 213261-5)
Position 055 – INNER SEPARATER (SKU: 450301-0)
Position 056 – O RING 16 (SKU: 213223-3)
Position 057 – BALL BEARING 689ZZ (SKU: 211099-2)
Position 058 – UPPER DRUM CAP (SKU: 450300-2)
Position 059 – O RING 9 (SKU: 213062-1)
Position 060 – ROTOR (SKU: 324855-2)
Position 061 – BLADE (SKU: 413117-4)
Position 062 – SPRING PIN 2.5-5 (SKU: 258024-2)
Position 063 – DRUM ASSY (SKU: 135193-5)
Position 064 – SPRING PIN 2.5-5 (SKU: 258024-2)
Position 065 – O RING 9 (SKU: 213062-1)
Position 066 – LOWER DRUM CAP (SKU: 450299-1)
Position 067 – O-RING 35 (SKU: 213991-8)
Position 068 – BALL BEARING 689ZZ (SKU: 211099-2)
Position 069 – AIR MOTOR ASS'Y (SKU: 135194-3)
Position 070 – FLAT WASHER 15 (SKU: 267215-4)
Position 071 – SPUR GEAR 21 (SKU: 227186-7)
Position 072 – SPUR GEAR 10 (SKU: 227187-5)
Position 073 – INTERNAL SPUR GEAR 44 (SKU: 227185-9)
Position 074 – CARRIER COMPLETE (SKU: 158512-8)
Position 075 – BALL BEARING 6001LLU (SKU: 211138-8)
Position 076 – HEX. SOCKET HEAD BOLT M5X30 (SKU: 922252-2)
Position 077 – PLUG (SKU: 243106-3)
Position 078 – CAP 9 (SKU: 286281-2)
Position 079 – CONICAL COMPRESSION SPRING (SKU: 233961-1)
Position 080 – SHEET PACKING (SKU: 424075-9)
Position 081 – INLET CAP ASSY (SKU: 135190-1)
Position 082 – O-RING 25 (SKU: 213987-9)
Position 083 – FILTER (SKU: 413119-0)
Position 084 – INLET CAP SPACER (SKU: 450311-7)
Position 085 – INLET CAP GASKET (SKU: 162261-1)
Position 086 – O RING 14 (SKU: 213162-7)
Position 087 – O RING 14 (SKU: 213154-6)
Position 088 – INLET FILTER (SKU: 413124-7)
Position 089 – PIPE 13 (SKU: 331803-4)
Position 090 – O RING 14 (SKU: 213162-7)
Position 091 – HOUSING SET (SKU: 188677-2)
Position 093 – PAN.HD.SCREW M5X22 (SKU: 265176-2)
Position 094 – HOOK (SKU: 419843-3)
Position 095 – HEX. NUT M5 (SKU: 931202-6)
Position 096 – HOOK BASE (SKU: 162255-6)
Position 097 – SPRING PIN 3-28 (SKU: 951075-1)
Position 098 – MAKITA ROGO LABEL R (SKU: 819330-6)
Position 099 – STOP RING E-4 (SKU: 961011-9)
Position 100 – MAKITA ROGO LABEL L (SKU: 819331-4)
Position 101 – INDICATION LABEL (SKU: 816918-3)
Position 102 – STEEL BALL 4 (SKU: 216008-6)
Position 103 – COMPRESSION SPRING 3 (SKU: 231236-2)
Position 104 – LOCK PIN 6 (SKU: 162189-3)
Position 105 – RETAINING RING R-24 (SKU: 962103-7)
Position 106 – CUP WASHER (SKU: 345781-2)
Position 107 – COMPRESSION SPRING 10 (SKU: 234046-6)
Position 108 – COMPRESSION SPRING 9 (SKU: 234045-8)
Position 109 – RUBBER RING 14 (SKU: 262123-4)
Position 110 – O-RING 19 (SKU: 213971-4)
Position 112 – URETHANE RING 4 (SKU: 262130-7)
Position 113 – O RING 8 (SKU: 213007-9)
Position 114 – COMPRESSION SPRING 3 (SKU: 234042-4)
Position 115 – FEEDING CLAW (SKU: 310246-3)
Position 116 – PIN 4.5 (SKU: 268193-1)
Position 117 – DRIVER GUIDE COMPLETE (SKU: 158515-2)
Position 118 – DRIVER GUIDE GASKET (SKU: 162262-9)
Position 119 – HEX. SOCKET HEAD BOLT M5X16 (SKU: 266086-6)
Position 120 – CONTACT ARM COVER (SKU: 451254-6)
Position 121 – HEX. SOCKET HEAD BOLT M5X12 (SKU: 922212-4)
Position 122 – LOCK PIN (SKU: 310217-0)
Position 123 – COMPRESSION SPRING 5 (SKU: 234003-4)
Position 124 – DOOR (SKU: 419814-0)
Position 125 – URETHANE RING 3 (SKU: 262120-0)
Position 126 – URETHANE RING 3 (SKU: 262120-0)
Position 127 – PIN 4 (SKU: 268174-5)
Position 128 – HEX. SOCKET HEAD BOLT M5X28 (SKU: 922246-7)
Position 129 – FLAT WASHER 5 (SKU: 267343-5)
Position 130 – PIN 5 (SKU: 256774-3)
Position 131 – STOP RING E-4 (SKU: 961011-9)
Position 132 – MAGAZINE ASS'Y (SKU: 135259-1)
Position 133 – MAGAZINE CAP COMPLETE (SKU: 158909-1)
Position 134 – TRIGGER VALVE GUIDE (SKU: 450788-6)
Position 135 – O RING 18 (SKU: 213275-4)
Position 136 – PILOT VALVE (SKU: 450310-9)
Position 137 – O-RING 11 (SKU: 213134-2)
Position 138 – O-RING 8 (SKU: 213984-5)
Position 139 – O-RING 8 (SKU: 213985-3)
Position 140 – O-RING 2 (SKU: 213986-1)
Position 141 – COMPRESSION SPRING 3 (SKU: 234081-4)
Position 143 – O RING 3 (SKU: 213034-6)
Position 144 – O-RING 13.5 (SKU: 213187-1)
Position 145 – O RING 20 (SKU: 213310-8)
Position 146 – TRIGGER VALVE CASE (SKU: 450308-6)
Position 147 – IDLER (SKU: 344265-7)
Position 148 – TRIGGER (SKU: 450344-2)
Position 149 – SPRING PIN 2.5-16 (SKU: 258004-8)
Position 150 – SPRING PIN 3-28 (SKU: 951075-1)
Position 151 – HOLDER (SKU: 450314-1)
Position 152 – SPRING PIN 3-28 (SKU: 951075-1)
Position 153 – COMPRESSION SPRING 6 (SKU: 234044-0)
Position 154 – STOPPER (SKU: 310247-1)
Position 155 – ADJUSTER SHAFT (SKU: 324745-9)
Position 156 – COMPRESSION SPRING 2 (SKU: 233491-2)
Position 157 – STEEL BALL 2.3 (SKU: 216031-1)
Position 158 – ADJUSTER COMPLETE (SKU: 158747-1)
Position 159 – SPRING PIN 2-14 (SKU: 951010-9)
Position 160 – SPRING PIN 2-14 (SKU: 951010-9)
Position 161 – ADJUSTER PIECE (SKU: 310201-5)
Position 163 – TORSION SPRING 4 (SKU: 233511-2)
Position 164 – CHUCK (SKU: 310222-7)
Position 165 – URETHANE WASHER (SKU: 261118-4)
Position 166 – CHUCK (SKU: 310221-9)
Position 167 – TORSION SPRING 4 (SKU: 233511-2)
Position 168 – CONTACT TOP (SKU: 310220-1)
Position 169 – PIN 3.5 (SKU: 268173-7)
Position 170 – NOSE ADAPTER (SKU: 424005-0)
Position 171 – AIR LEAK REPAIR SET (SKU: 194738-8)
Position 173 – TRIGGER VALVE ASS'Y (SKU: 135212-7)
