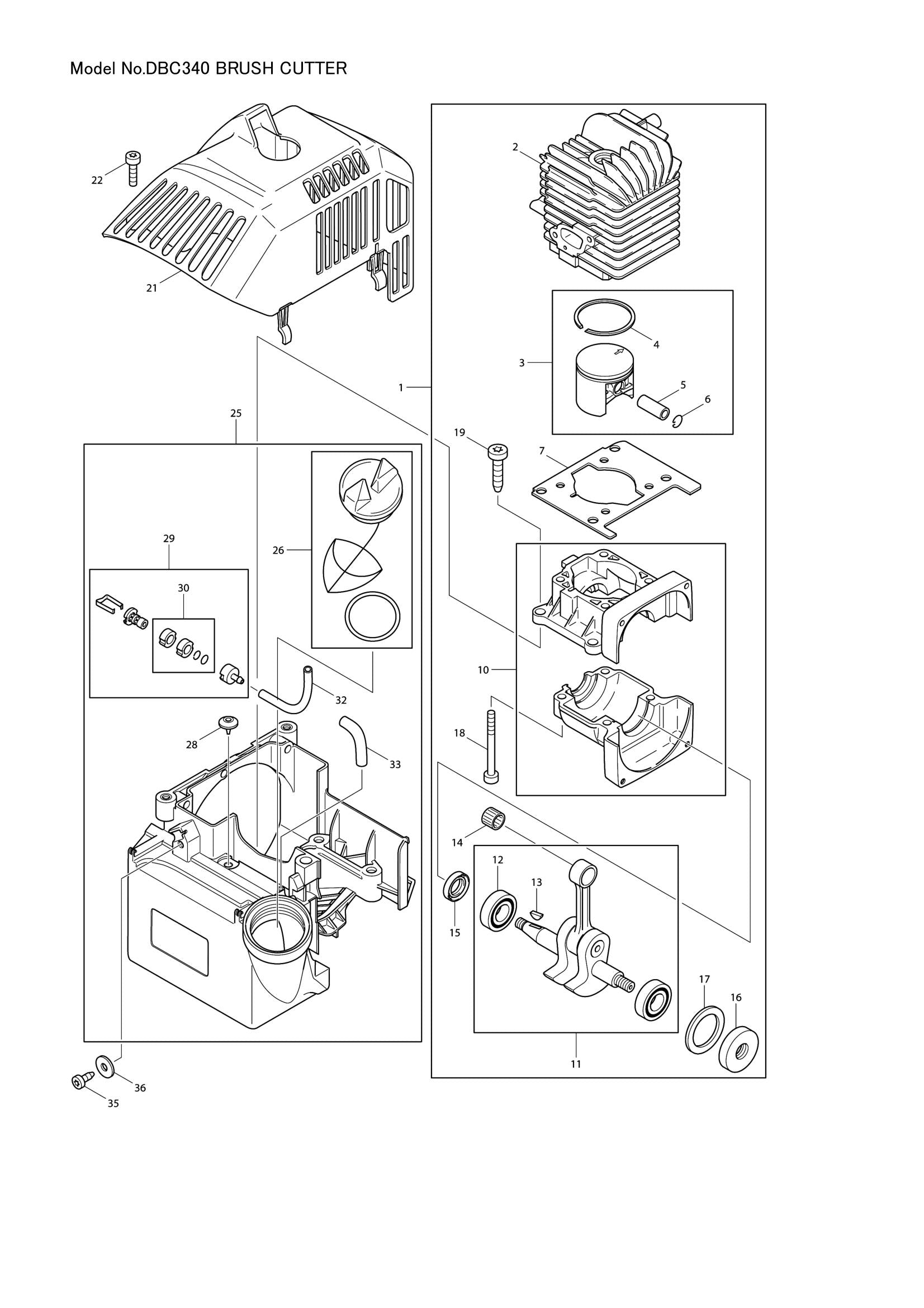

Exploded View – DBC340

Share this product

Position 001 – SHORT BLOCK 33ML (SKU: 384100100)
Position 002 – CYLINDER 37MM (SKU: 384131011)
Position 003 – PISTON ASSY. (SKU: 957132384)
Position 004 – PISTON RING 37MM (SKU: 021132030)
Position 005 – PISTON PIN (SKU: 385132030)
Position 006 – SPRING RING (SKU: 385132040)
Position 007 – GASKET (SKU: 965527010)
Position 010 – CRANKCASE ASSY. (SKU: 385111100)
Position 011 – CRANK SHAFT ASSY (SKU: 385120100)
Position 012 – BALLBEARING 6201 (SKU: 960102129)
Position 013 – KEY (SKU: 939620371)
Position 014 – NEEDLE CAGE (SKU: 962211033)
Position 015 – OIL SEAL 12 (SKU: 962900057)
Position 016 – RADIAL RING (SKU: 962900024)
Position 017 – DISC (SKU: 900006217)
Position 019 – SCREW 6.7X30 (SKU: 913467304)
Position 021 – HOOD (SKU: 387118011)
Position 025 – MOTOR HOUSING CPL. (SKU: 387110101)
Position 026 – FUELTANK PLUG CPT. (SKU: 010114090)
Position 033 – FUEL TUBE L=1M (SKU: 965452470)
Position 035 – SCREW 4.7X13 (SKU: 913447134)
Position 036 – DISC (SKU: 924805300)
Position 037 – CLUTCH CASE ASSY. (SKU: 387217600)
Position 038 – SCREW 6.7X25 (SKU: 913467254)
Position 039 – CLAMPING RING (SKU: 965903080)
Position 041 – CLUTCH SHOE,SET (SKU: 010181000)
Position 042 – SPRING (SKU: 385184020)
Position 043 – FLYWHEEL (SKU: 385141011)
Position 044 – SPRING WASHER 8X17 (SKU: 928308001)
Position 046 – IGNITION COIL (SKU: 385143030)
Position 048 – EARTHING TERMINAL (SKU: 965605411)
Position 050 – PLUG CAP WITH SPRING (SKU: 385147100)
Position 052 – STARTER (SKU: 387160101)
Position 054 – STARTER GRIP (SKU: 957404691)
Position 055 – MAIN SPRING (SKU: 387163010)
Position 056 – CABLE DRUM (SKU: 387162020)
Position 057 – SCREW (SKU: 385161010)
Position 058 – WASHER 5 (SKU: 387161030)
Position 059 – STARTER RATCHET BASE (SKU: 387166050)
Position 063 – LABEL (SKU: 980114217)
Position 065 – MUFFLER COMPLETE (SKU: 385174101)
Position 066 – MUFFLER GASKET (SKU: 965527040)
Position 067 – COOLING PLATE (SKU: 385174011)
Position 069 – CARBURETOR INSULATOR (SKU: 385131050)
Position 070 – SCREW M5X70 (SKU: 900105704)
Position 072 – CARBURETOR GASKET (SKU: 965527020)
Position 073 – CHOKE LEVER (SKU: 031150730)
Position 075 – HEX. NUT M5 (SKU: 920205000)
Position 076 – AIR FILTER GASKET (SKU: 965527060)
Position 077 – AIR FILTER (SKU: 385173100)
Position 078 – COVER (SKU: 387118020)
Position 079 – SLOTTED CAP NUT M5 (SKU: 001118062)
Position 080 – CARBURETOR CPL. (SKU: 387151000)
Position 081 – PUMP COVER (SKU: 021151160)
Position 082 – IDLE STOP SCREW (SKU: 001151400)
Position 083 – PRESSURE SPRING (SKU: 021151230)
Position 084 – SCREW (SKU: 118151190)
Position 085 – PUMP DIAPHRAGM,SET (SKU: 957151010)
Position 086 – DIAPHRAGM COVER (SKU: 021151120)
Position 087 – SCREW (SKU: 118151020)
Position 088 – METERING DIAPHRAGM ,SET (SKU: 957151020)
Position 089 – THROTTLE SHAFT (SKU: 385151040)
Position 090 – SPRING (SKU: 371151310)
Position 091 – THROTTLE SHUTTER (SKU: 001151680)
Position 092 – SCREW (SKU: 118151060)
Position 093 – SHAFT CLIP (SKU: 108151350)
Position 094 – SCREW (SKU: 118151020)
Position 095 – CHOKE SHAFT ASSY (SKU: 387151100)
Position 096 – CHOKE SHUTTER (SKU: 001151350)
Position 097 – LOCKING BALL (SKU: 118151170)
Position 098 – LOCKING SPRING (SKU: 118151160)
Position 099 – MAIN ADJUSTMENT SCREW(H) (SKU: 001151420)
Position 100 – SPRING(H) (SKU: 021151530)
Position 102 – SPRING (SKU: 021151480)
Position 103 – SCREEN (SKU: 021151180)
Position 104 – SET OF CONTROL PARTS (SKU: 957150040)
Position 105 – CLAMPING HOLDER (SKU: 387310030)
Position 108 – HANDLE HOLDER (SKU: 387310620)
Position 109 – ORIFICE PLATE (SKU: 385316010)
Position 111 – LABEL (SKU: 980114327)
Position 114 – CLAMPING PIECE (SKU: 387310610)
Position 116 – CLAMPING RING (SKU: 965903080)
Position 121 – OPERATING LEVER ASSY. (SKU: 369313202)
Position 122 – BOWDEN CABLE CPL. (SKU: 385726070)
Position 123 – HANDLE (SKU: 385310161)
Position 124 – HANDLE HALF,RIGHT,CPL (SKU: 369313290)
Position 125 – HANDLE HALF,LEFT (SKU: 369313080)
Position 126 – THROTTLE LEVER (SKU: 369311080)
Position 127 – THROTTLE RETUNE SPRING (SKU: 369311071)
Position 128 – SHORT CIRCUIT SWITCH (SKU: 975001210)
Position 130 – CLAMPING RING (SKU: 965903080)
Position 132 – GRIP LEFT (SKU: 387311100)
Position 135 – MAIN PIPE ASSY (SKU: 010261030)
Position 136 – DRIVE SHAFT (SKU: 387228030)
Position 137 – LABEL (SKU: 980114148)
Position 138 – LABEL (SKU: 980114148)
Position 140 – PROTECTION HOOD SET (SKU: 010341202)
Position 141 – PLATE (SKU: 385341021)
Position 143 – LINE CUTTER (SKU: 957341010)
Position 144 – FLANGE PLATE (SKU: 387341030)
Position 146 – GEAR CPL. (SKU: 387200201)
Position 149 – GASKET (SKU: 963604306)
Position 150 – SPACER RING (SKU: 387228020)
Position 152 – WINDING PREVENTER (SKU: 387224050)
Position 154 – RECEIVE WASHER (SKU: 387224011)
Position 155 – PRESSURE DISC (SKU: 387224020)
Position 156 – BLADE NUT M10X1.25LH (SKU: 387228040)
