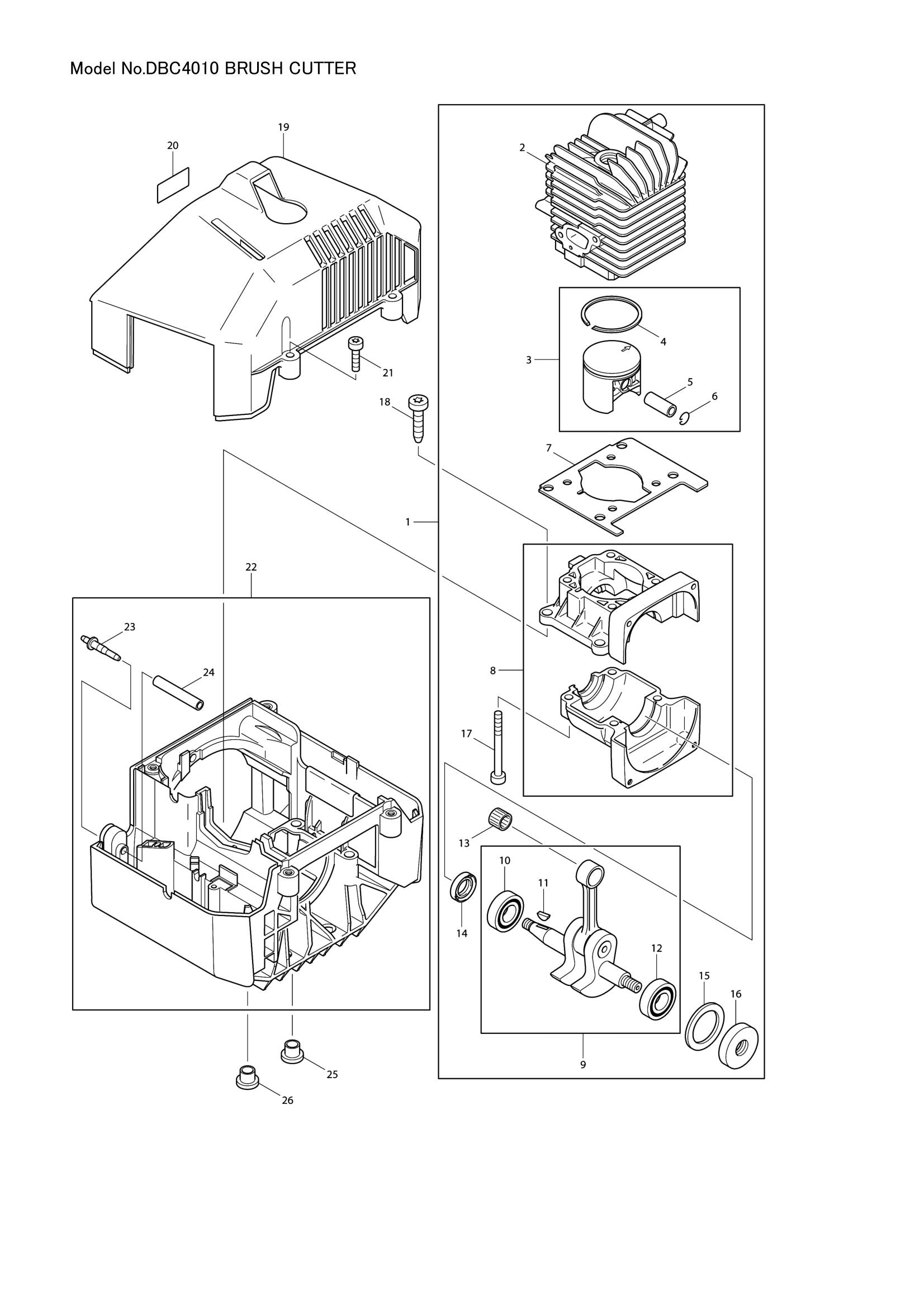

Exploded View – DBC4010

Share this product

Position 001 – SHORT BLOCK 40ML (SKU: 385100100)
Position 002 – CYLINDER 40ML (SKU: 385131011)
Position 003 – PISTON ASSY 40MM (SKU: 385132000)
Position 004 – PISTON RING 40MM (SKU: 021132230)
Position 005 – PISTON PIN (SKU: 385132030)
Position 006 – SPRING RING (SKU: 385132040)
Position 007 – GASKET (SKU: 965527010)
Position 008 – CRANKCASE ASSY. (SKU: 385111100)
Position 009 – CRANK SHAFT ASSY (SKU: 385120100)
Position 010 – BALLBEARING 6201 (SKU: 960102129)
Position 011 – KEY (SKU: 939620371)
Position 012 – BALLBEARING 6201 (SKU: 960102129)
Position 013 – NEEDLE CAGE (SKU: 962211033)
Position 014 – OIL SEAL 12 (SKU: 962900057)
Position 015 – DISC (SKU: 900006217)
Position 016 – RADIAL RING (SKU: 962900024)
Position 018 – SCREW 6.7X30 (SKU: 913467304)
Position 019 – HOOD (SKU: 385118011)
Position 022 – MOTOR HOUSING (SKU: 386110011)
Position 023 – NIPPLE (SKU: 001131020)
Position 024 – TUBE (SKU: 965452060)
Position 025 – PLUG (SKU: 965404240)
Position 026 – PLUG (SKU: 965404240)
Position 027 – CLUTCH CASE ASSY (SKU: 385217000)
Position 029 – CLAMPING RING (SKU: 965903061)
Position 031 – SCREW 6.7X25 (SKU: 913467254)
Position 032 – CLUTCH SHOE,SET (SKU: 010181000)
Position 033 – SPRING (SKU: 385184020)
Position 034 – FLYWHEEL (SKU: 385141011)
Position 035 – SPRING WASHER 8X17 (SKU: 928308001)
Position 037 – IGNITION COIL (SKU: 385143030)
Position 038 – EARTHING TERMINAL (SKU: 965605411)
Position 041 – IGNITION CABLE L=1M (SKU: 970310200)
Position 042 – PLUG CAP WITH SPRING (SKU: 385147100)
Position 044 – STARTER ASSY (SKU: 385160103)
Position 045 – STARTER ROPE (SKU: 387164010)
Position 046 – STARTER GRIP (SKU: 957404691)
Position 047 – STARTER REPAIR SET (SKU: 957160385)
Position 048 – CABLE DRUM (SKU: 385162020)
Position 049 – REWIND SPRING (SKU: 385163100)
Position 050 – STARTER WHEEL (SKU: 385166040)
Position 053 – LABEL (SKU: 980114147)
Position 057 – MUFFLER (SKU: 957174385)
Position 059 – MUFFLER GASKET (SKU: 965527040)
Position 060 – COOLING PLATE (SKU: 385174011)
Position 062 – CARBURETOR INSULATOR (SKU: 385131071)
Position 064 – CARBURETOR GASKET (SKU: 965527020)
Position 065 – ADJUSTING GUIDE (SKU: 385154010)
Position 066 – CHOKE LEVER (SKU: 028150740)
Position 067 – CHOKE LINKAGE (SKU: 385150030)
Position 068 – SPRING SHACKLE (SKU: 385150020)
Position 069 – SCREW 3.5X13 (SKU: 915135130)
Position 070 – ALMINUM HEX. LONG NUT M5 (SKU: 001173060)
Position 071 – AIR FILTER GASKET (SKU: 965527060)
Position 072 – AIR FILTER (SKU: 385173100)
Position 073 – AIR FILTER ELEMENT COVER (SKU: 385118060)
Position 075 – CARBURETOR CPL (SKU: 385151001)
Position 076 – PUMP COVER (SKU: 021151160)
Position 077 – IDLE STOP SCREW (SKU: 001151400)
Position 078 – PRESSURE SPRING (SKU: 021151230)
Position 079 – SCREW (SKU: 118151190)
Position 080 – PUMP DIAPHRAGM,SET (SKU: 957151010)
Position 081 – DIAPHRAGM COVER (SKU: 021151120)
Position 082 – SCREW (SKU: 118151020)
Position 083 – SCREW (SKU: 118151020)
Position 084 – METERING DIAPHRAGM ,SET (SKU: 957151020)
Position 085 – THROTTLE SHAFT (SKU: 385151040)
Position 086 – SPRING (SKU: 371151310)
Position 087 – THROTTLE SHUTTER (SKU: 001151680)
Position 088 – SCREW (SKU: 118151060)
Position 089 – SCREW (SKU: 118151060)
Position 090 – SHAFT CLIP (SKU: 108151350)
Position 091 – CHOKE SHAFT ASSY (SKU: 385151020)
Position 092 – CHOKE SHUTTER (SKU: 001151350)
Position 093 – LOCKING BALL (SKU: 118151170)
Position 094 – LOCKING SPRING (SKU: 118151160)
Position 095 – SPRING(H) (SKU: 021151530)
Position 096 – SPRING (SKU: 021151480)
Position 097 – SCREEN (SKU: 021151180)
Position 098 – SET OF CONTROL PARTS (SKU: 957150040)
Position 099 – MAIN ADJUSTMENT SCREW(H) (SKU: 001151420)
Position 101 – TANK ASSY (SKU: 385114611)
Position 103 – TUBE (SKU: 965452060)
Position 104 – TANK PLUG CPL (SKU: 010114045)
Position 105 – SUCTION HEAD COMPLETE (SKU: 963601420)
Position 106 – SUCTION HEAD (SKU: 963601150)
Position 107 – DISC (SKU: 928605500)
Position 108 – FUEL LINE (SKU: 965452480)
Position 109 – CLAMPING PIECE (SKU: 385310631)
Position 111 – WASHER M6 (SKU: 924106400)
Position 112 – HEX. NUT M6 (SKU: 920206000)
Position 113 – INSERTING PLATE (SKU: 385365010)
Position 115 – ORIFICE PLATE (SKU: 385316010)
Position 117 – LABEL DBC4010 (SKU: 980114672)
Position 118 – OPERATING LEVER ASSY. (SKU: 369313202)
Position 119 – BOWDEN CABLE CPL. (SKU: 385726070)
Position 120 – HANDLE (SKU: 385310161)
Position 121 – HANDLE HALF,RIGHT,CPL (SKU: 369313290)
Position 122 – HANDLE HALF,LEFT (SKU: 369313080)
Position 123 – THROTTLE LEVER (SKU: 369311080)
Position 124 – THROTTLE RETUNE SPRING (SKU: 369311071)
Position 125 – SHORT CIRCUIT SWITCH (SKU: 975001210)
Position 127 – CLAMPING RING (SKU: 965903080)
Position 129 – RETAINING CLIP (SKU: 385176010)
Position 131 – RUBBER BUSH (SKU: 965401018)
Position 132 – GRIP LEFT (SKU: 387311100)
Position 133 – CLAMPING HOLDER SET (SKU: 957310610)
Position 134 – HEX. SCREW M8X55 (SKU: 900108555)
Position 135 – DISC 8.4 (SKU: 924108400)
Position 138 – MAIN PIPE ASSY (SKU: 010261020)
Position 139 – DRIVE SHAFT (SKU: 385228030)
Position 140 – CAUTION LABEL (SKU: 980114628)
Position 141 – LABEL (SKU: 980114148)
Position 142 – LABEL (SKU: 980114119)
Position 143 – PROTECTION HOOD ASSY (SKU: 010341612)
Position 145 – PLATE (SKU: 385341021)
Position 146 – LINE CUTTER (SKU: 957341010)
Position 147 – PROTECTION HOOD CPL 200 (SKU: 010341630)
Position 149 – GEAR HEAD ASSY (SKU: 385200203)
Position 150 – SPINDLE LOCK PARTS SET (SKU: 957385272)
Position 151 – OIL SEAL (SKU: 962900055)
Position 153 – GASKET (SKU: 963604084)
Position 156 – SPACER RING 15 (SKU: 385228020)
Position 157 – WINDING PREVENTER (SKU: 385224410)
Position 158 – RECEIVE WASHER (SKU: 385224012)
Position 159 – CLAMP WASHER (SKU: 385224022)
Position 160 – BLADE NUT M12X1.5LH (SKU: 385228041)
Position 161 – BLADE CUP (SKU: 385218020)
