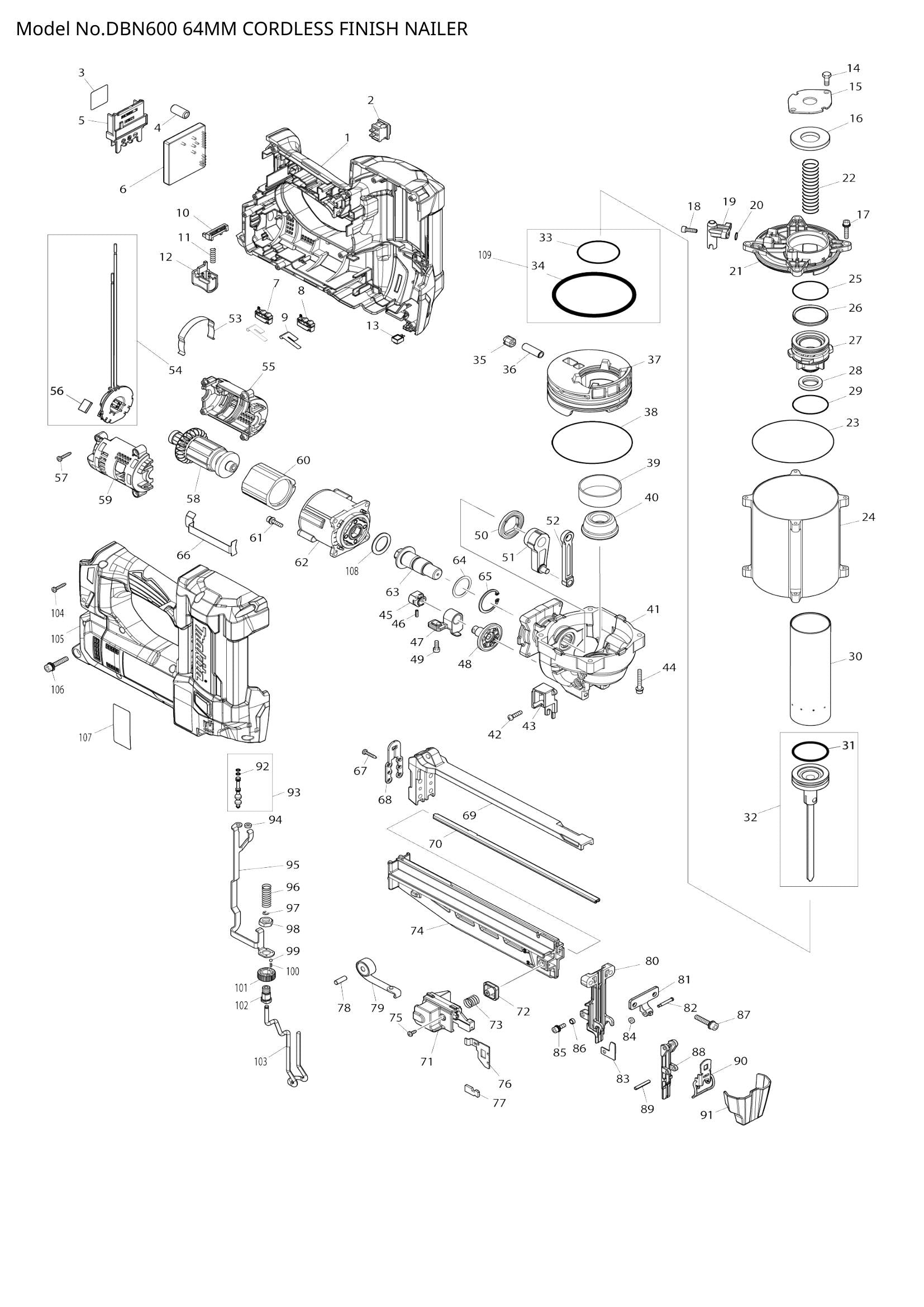

Name: Exploded View – DBN600
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – HOUSING SET (SKU: 183J18-7)
Position 002 – SWITCH SLE6A2-33 (SKU: 651533-4)
Position 003 – DBN600 SERIAL NO. LABEL (SKU: 853V47-3)
Position 004 – LINE FILTER (SKU: 688161-2)
Position 005 – TERMINAL (SKU: 643860-3)
Position 006 – CONTROLLER (SKU: 620581-4)
Position 007 – SWITCH UNIT (SKU: 632L06-8)
Position 008 – SWITCH UNIT (SKU: 632L07-6)
Position 009 – LEAF SPRING (SKU: 232409-0)
Position 010 – TRIGGER LOCK (SKU: 458070-7)
Position 011 – COMPRESSION SPRING 5 (SKU: 231372-4)
Position 012 – TRIGGER (SKU: 458071-5)
Position 013 – LED CIRCUIT (SKU: 620582-2)
Position 014 – HEX.BOLT M5X12 (SKU: 265660-7)
Position 015 – SPRING BRACKET (SKU: 347293-1)
Position 016 – REAR CUSHION (SKU: 422214-5)
Position 017 – HEX. SOCKET HEAD BOLT M5X18 (SKU: 265853-6)
Position 018 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922117-8)
Position 020 – O RING 6 (SKU: 213017-6)
Position 022 – COMPRESSION SPRING 15 (SKU: 232405-8)
Position 023 – O RING 85 (SKU: 213803-5)
Position 026 – D-RING 34 (SKU: 424536-9)
Position 027 – HEAD VALVE (SKU: 458062-6)
Position 028 – CUSHION "P" (SKU: 421551-4)
Position 031 – O RING 34 (SKU: 213475-6)
Position 032 – DRIVER ASS'Y (SKU: 135945-4)
Position 033 – O RING 42 (SKU: 213558-2)
Position 034 – O RING 80 (SKU: 213863-7)
Position 035 – STOPPER (SKU: 458074-9)
Position 037 – MAIN PISTON (SKU: 458061-8)
Position 038 – O RING 80 (SKU: 213757-6)
Position 039 – RUBBER RING (SKU: 422215-3)
Position 040 – FRONT CUSHION (SKU: 424440-2)
Position 041 – CRANK CASE COMPLETE (SKU: 144883-9)
Position 042 – PAN HEAD SCREW M4X16 WITH (SKU: 265638-0)
Position 043 – ADJUSTER BASE (SKU: 458063-4)
Position 044 – H. S. HEAD BOLT M4X28 WITH W (SKU: 251578-8)
Position 045 – HOLDER COMPLETE (SKU: 144758-2)
Position 046 – SPRING PIN 2.5-9 (SKU: 258018-7)
Position 047 – BRACKET (SKU: 458064-2)
Position 048 – SPUR GEAR 44 (SKU: 221583-9)
Position 049 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922118-6)
Position 050 – SPUR GEAR 44 (SKU: 221584-7)
Position 051 – CRANK COMPLETE (SKU: 144760-5)
Position 052 – CONROD (SKU: 310840-1)
Position 053 – LEAF SPRING (SKU: 232408-2)
Position 054 – BRUSH HOLDER ASS'Y (SKU: 539233-5)
Position 055 – MOTOR HOUSING SET (SKU: 183H57-5)
Position 057 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 058 – ARMATURE (SKU: 619456-2)
Position 059 – MOTOR HOUSING SET (SKU: 183H57-5)
Position 060 – YOKE UNIT (SKU: 638989-8)
Position 061 – HEX. SOCKET HEAD BOLT M4X16 (SKU: 266437-3)
Position 062 – GEAR ASSY (SKU: 126683-9)
Position 063 – SHAFT (SKU: 327030-9)
Position 064 – FLAT WASHER 22 (SKU: 267108-5)
Position 065 – RETAINING RING R-28 (SKU: 962106-1)
Position 066 – PLATE (SKU: 347287-6)
Position 067 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 068 – END PLATE (SKU: 347292-3)
Position 069 – MAGAZINE END (SKU: 458065-0)
Position 070 – NAIL RAIL (SKU: 347289-2)
Position 071 – PUSHER LEVER (SKU: 458072-3)
Position 072 – BUTTON (SKU: 458073-1)
Position 073 – COMPRESSION SPRING 9 (SKU: 232407-4)
Position 074 – MAGAZINE (SKU: 458066-8)
Position 075 – TAPPING SCREW 3X8 (SKU: 266492-5)
Position 076 – PUSHER (SKU: 347290-7)
Position 077 – STOPPER (SKU: 347291-5)
Position 078 – PIN 5 (SKU: 268225-4)
Position 079 – SPIRAL SPRING COMPLETE (SKU: 141005-2)
Position 080 – DRIVER GUIDE (SKU: 310804-5)
Position 081 – PLATE (SKU: 310806-1)
Position 082 – FLAT FILLISTER HD.PIN 3 (SKU: 256378-1)
Position 083 – GUIDE PLATE (SKU: 347294-9)
Position 084 – URETHANE WASHER (SKU: 261118-4)
Position 085 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 266273-7)
Position 086 – SLEEVE 4 (SKU: 257754-2)
Position 087 – HEX. SOCKET HEAD BOLT M5X25 (SKU: 922243-3)
Position 088 – DOOR (SKU: 310805-3)
Position 089 – SPRING PIN 3-22 (SKU: 258033-1)
Position 090 – LATCH (SKU: 161781-2)
Position 091 – LATCH COVER (SKU: 458067-6)
Position 092 – O RING 3 (SKU: 213044-3)
Position 093 – VALVE STEM ASS'Y (SKU: 135946-2)
Position 094 – URETHANE RING 3 (SKU: 262054-7)
Position 095 – ARM (SKU: 347288-4)
Position 096 – COMPRESSION SPRING 9 (SKU: 232406-6)
Position 097 – STOP RING E-3 (SKU: 961017-7)
Position 098 – HEX. NUT M8 (SKU: 931403-6)
Position 099 – STEEL BALL 3 (SKU: 216019-1)
Position 100 – COMPRESSION SPRING 2 (SKU: 233491-2)
Position 101 – ADJUSTER DIAL (SKU: 452909-6)
Position 102 – ADJUSTER SHAFT (SKU: 327033-3)
Position 103 – CONTACT TOP (SKU: 327032-5)
Position 104 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 105 – HOUSING SET (SKU: 183J18-7)
Position 106 – PAN HEAD SCREW M5X28 (SKU: 911248-8)
Position 107 – DBN600 NAME PLATE (SKU: 853V44-9)
Position 108 – FLAT WASHER 23 (SKU: 267148-3)
Position 109 – REPAIR O RINGS FOR MAIN PIST (SKU: 199165-4)
