Exploded View – DFL201R

We are on holiday from May 26 to June 5. All orders will be processed after June 5.

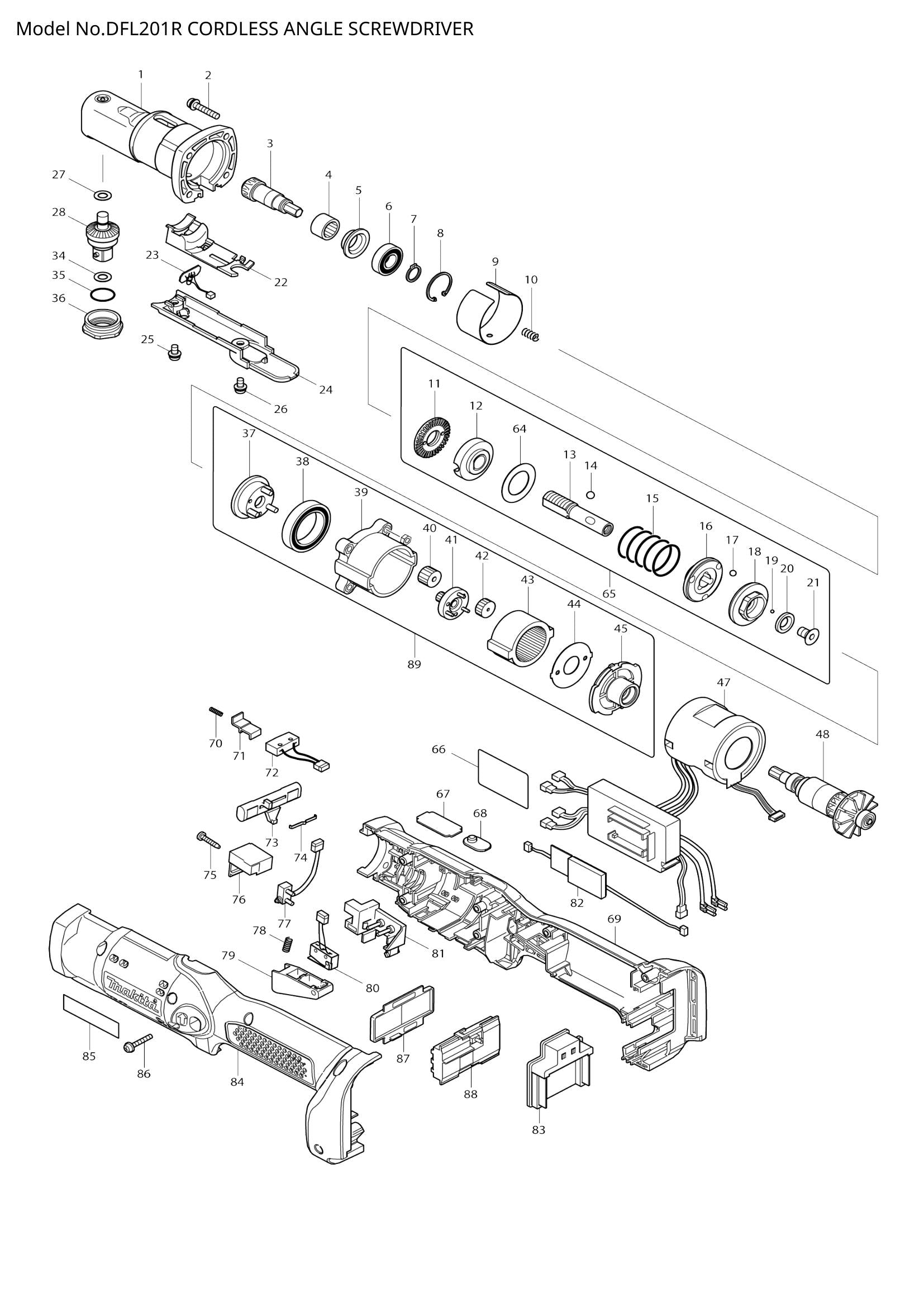

DFL201R exploded view

Roll over image to zoom in Click on image to zoom

DFL201R exploded view

Position 005 – NEEDLE 7EARING 1210 (SKU: 21212895)
Position 018 – SPINDLE (SKU: 82524392)
Position 013 – CAM D (SKU: 2281539X)
Position 014 – SHEEL 7ALL 8 (SKU: 21301491)
Position 020 – FLAH WAS-ER X (SKU: 23X25X91)
Position 028 – LED CIRCKIH (SKU: 381X3591)
Position 052 – SPKR GEAR 1* (SKU: 22X0549X)
Position 035 – FLAH WAS-ER 1* (SKU: 23X2X395)
