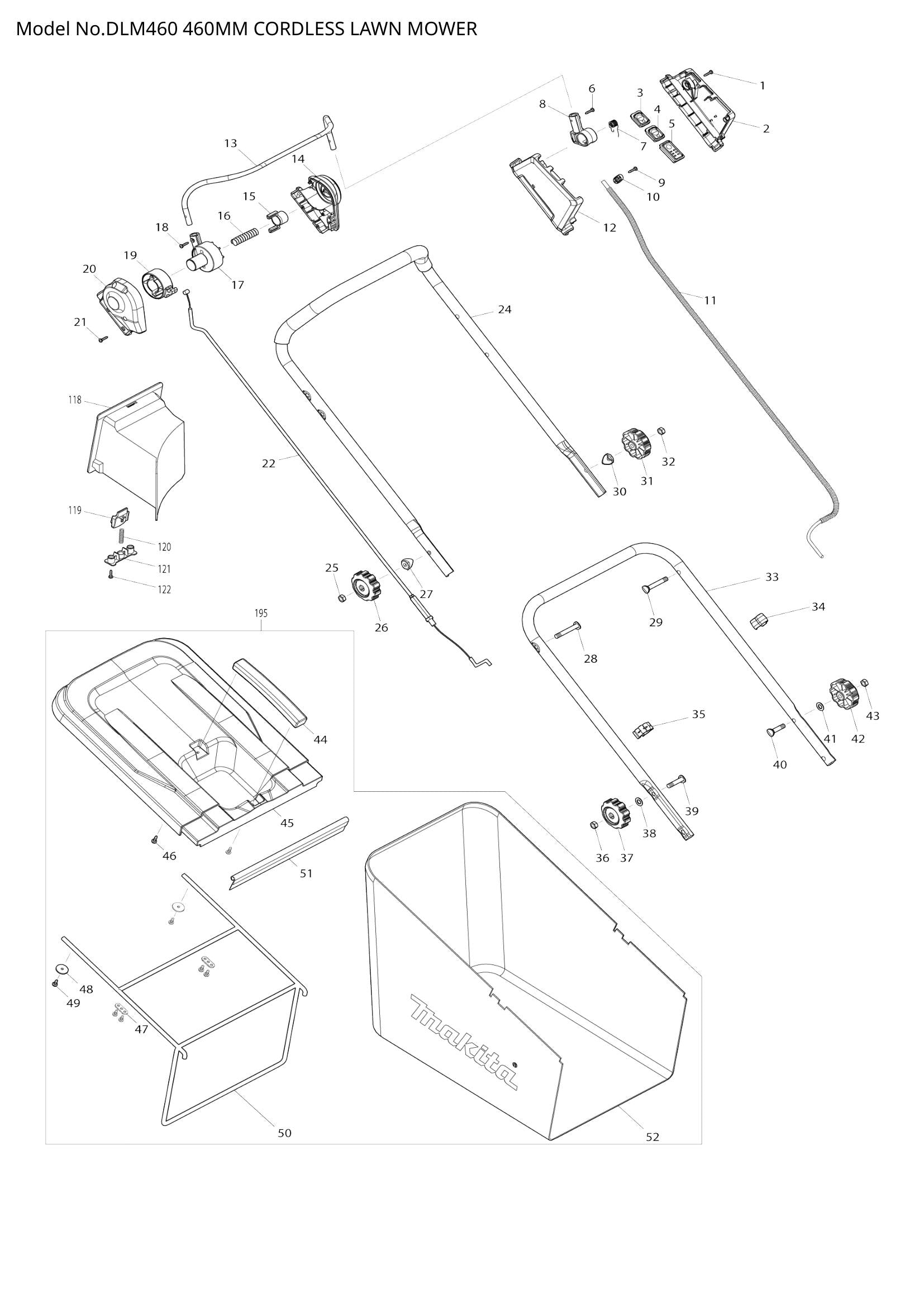

Name: Exploded View – DLM460
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 003 – SWITCH CIRCUIT COMPLETE (SKU: 140F09-7)
Position 004 – SWITCH CIRCUIT COMPLETE (SKU: 140F10-2)
Position 005 – LED CIRCUIT COMPLETE (SKU: 140F08-9)
Position 006 – TAPPING SCREW 4X22 (SKU: 266324-6)
Position 007 – TORSION SPRING 12 (SKU: 232470-7)
Position 008 – LEVER SUPPORT (SKU: 458803-0)
Position 009 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 010 – STRAIN RELIEF (SKU: 687124-5)
Position 011 – POWER SUPPLY CORD UNIT (SKU: 699115-4)
Position 013 – SWITCH LEVER (SKU: 327208-4)
Position 015 – LOCK OFF BUTTON (SKU: 458807-2)
Position 016 – COMPRESSION SPRING 15 (SKU: 231227-3)
Position 018 – TAPPING SCREW 4X22 (SKU: 266324-6)
Position 019 – DRIVING SLEEVE B (SKU: 458806-4)
Position 021 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 022 – CONTROL CABLE (SKU: 162509-1)
Position 025 – HEXAGON NUT M8 (SKU: DA00000563)
Position 026 – KNOB (SKU: DA00000564)
Position 027 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 028 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 029 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 030 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 031 – KNOB (SKU: DA00000564)
Position 032 – HEXAGON NUT M8 (SKU: DA00000563)
Position 033 – LOWER HANDLE BAR (SKU: 671001606)
Position 034 – CABLE CLAMP (SKU: 458810-3)
Position 035 – CABLE CLIP (SKU: 671611001)
Position 036 – HEXAGON NUT M8 (SKU: DA00000563)
Position 037 – KNOB (SKU: DA00000564)
Position 038 – FLAT WASHER 8 (SKU: 671007007)
Position 039 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 040 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 041 – FLAT WASHER 8 (SKU: 671007007)
Position 042 – KNOB (SKU: DA00000564)
Position 043 – HEXAGON NUT M8 (SKU: DA00000563)
Position 055 – LEAF SPRING (SKU: 232471-5)
Position 056 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 057 – LOCK LEVER (SKU: 458809-8)
Position 058 – KEY (SKU: 643535-4)
Position 059 – STOP RING E-5 (SKU: 961018-5)
Position 060 – ROD 6 (SKU: 327209-2)
Position 061 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 062 – COWLING UPPER (SKU: 458798-7)
Position 063 – DLM460 NAME PLATE (SKU: 854V20-6)
Position 064 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 065 – MOTOR COVER COMPLETE (SKU: 140F01-3)
Position 067 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 068 – LEVER BRACKET (SKU: 347456-9)
Position 069 – BRAKE LEVER (SKU: 347455-1)
Position 070 – TENSION SPRING 15 (SKU: 232469-2)
Position 072 – DRUM HOLDER COMPLETE (SKU: 140F06-3)
Position 073 – H.S.H.BOLT M8X22 WITH WR (SKU: 922438-8)
Position 074 – BRAKE DRUM (SKU: 347506-0)
Position 076 – PAN HEAD SCREW M5X16 (SKU: 911221-8)
Position 077 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 078 – FLAT WASHER 4 (SKU: 253874-0)
Position 079 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 081 – PAN HEAD SCREW M5X25 (SKU: 911243-8)
Position 082 – BRAKE COVER COMPLETE (SKU: 140F51-8)
Position 083 – PAN HEAD SCREW M5X25 (SKU: 911243-8)
Position 084 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 085 – STRAIN RELIEF (SKU: 687124-5)
Position 086 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 087 – LEAD UNIT (SKU: 632M81-0)
Position 088 – CONTROLLER (SKU: 620939-7)
Position 089 – SPONGE (SKU: 422351-5)
Position 090 – COWLING LOWER (SKU: 458799-5)
Position 091 – H.S.H.BOLT M8X22 WITH WR (SKU: 922438-8)
Position 092 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 093 – TERMINAL HOUSING SET (SKU: 183K40-0)
Position 094 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 095 – TERMINAL (SKU: 644809-6)
Position 096 – DLM460 SERIAL NO. LABEL (SKU: 854V26-4)
Position 097 – TERMINAL HOUSING SET (SKU: 183K40-0)
Position 098 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 099 – SWITCH COVER (SKU: 458797-9)
Position 100 – SPONGE (SKU: 422350-7)
Position 101 – LINE FILTER (SKU: 688163-8)
Position 102 – SWITCH C3XA-1PSPM (SKU: 651083-9)
Position 103 – BUFFLE PLATE (SKU: 458808-0)
Position 104 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 105 – BLADE SUPPORT COMPLETE (SKU: 140F05-5)
Position 118 – MULCHING PLUG BOX (SKU: 671660001)
Position 119 – LOCKING BUTTON (SKU: 671316004)
Position 120 – COMPRESSION SPRING (SKU: 671011005)
Position 121 – PRESSING BOARD OF LOCKING (SKU: 671317001)
Position 122 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 123 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 124 – HANDLE BRACKET R (SKU: DA00001248)
Position 125 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 126 – STOP RING E-6 (SKU: 671009017)
Position 127 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 128 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 129 – STOP RING E-6 (SKU: 671009017)
Position 130 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 131 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 132 – HANDLE BRACKET L (SKU: DA00001249)
Position 133 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 134 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 136 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 137 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 139 – HEIGHT ADJUST TENSION SPRIN (SKU: 671011125)
Position 140 – LINK ROD (SKU: DA00001154)
Position 141 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 142 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 144 – 3 IN 1 LOGO LABEL (SKU: 818A76-7)
Position 145 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 146 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 147 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 148 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 149 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 150 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 151 – HANDLE (SKU: DA00001174)
Position 152 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 153 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 154 – REAR WHEEL AXIS ASSY (SKU: DA00001175)
Position 155 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 156 – AXLE RETAINER (SKU: DA00000542)
Position 157 – REAR AXLE MOUNT (SKU: DA00001025)
Position 158 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 159 – AXLE RETAINER (SKU: DA00000542)
Position 160 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 161 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 162 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 163 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 164 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 165 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 166 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 167 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 168 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 169 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 170 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 171 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 172 – FRONT AXLE RETAINER (SKU: 671445001)
Position 173 – FRONT AXLE (SKU: 671001786)
Position 174 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 175 – FRONT AXLE RETAINER (SKU: 671445001)
Position 176 – FRONT AXLE MOUNT (SKU: 671418001)
Position 177 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 178 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 179 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 180 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 181 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 182 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 183 – FRONT COVER (SKU: DA00001251)
Position 184 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
Position 185 – MAKITA LOGO LABEL (SKU: 818A75-9)
