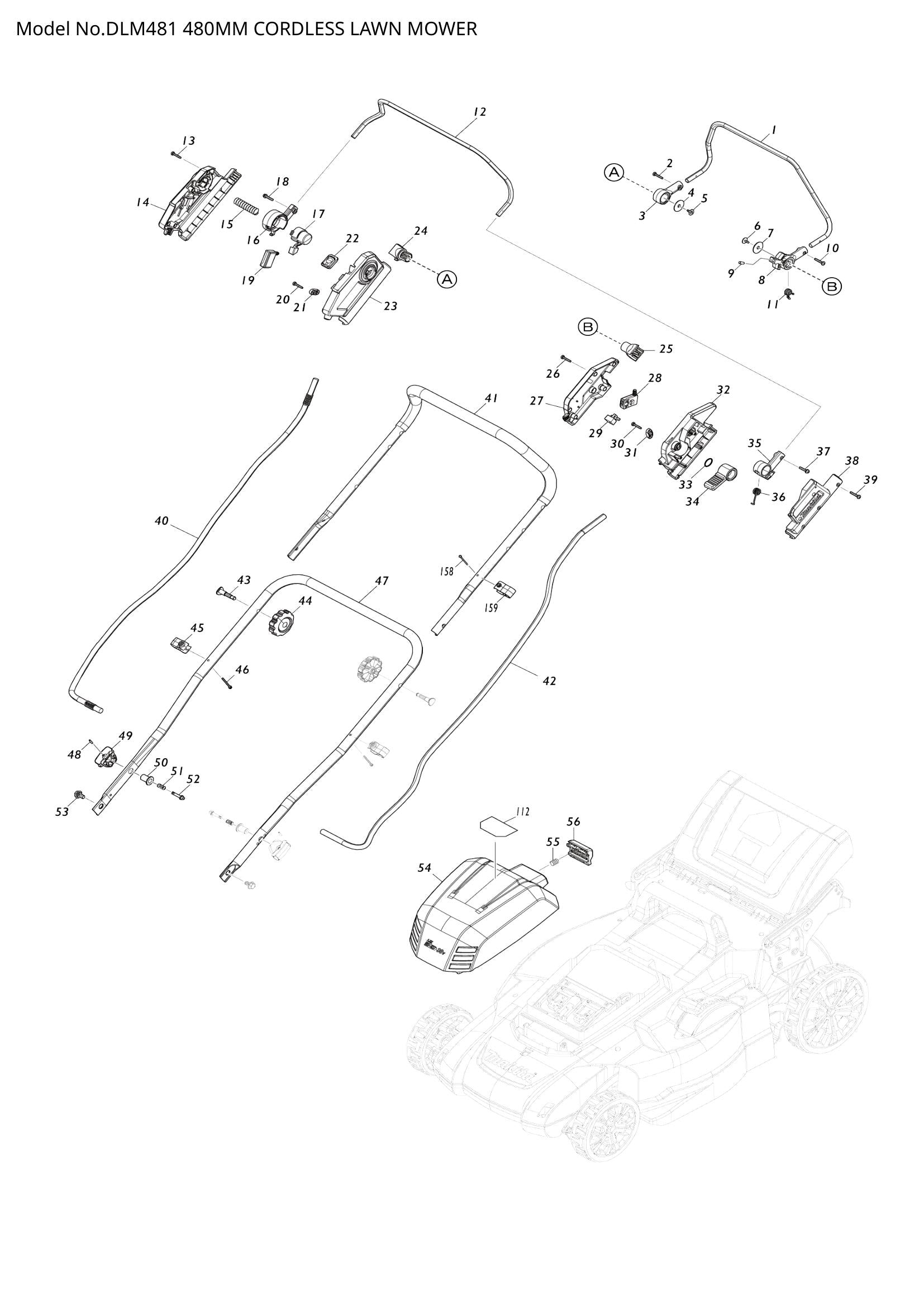

Name: Exploded View – DLM481
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – DRIVING LEVER (SKU: 327425-6)
Position 002 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
Position 003 – DRIVING LEVER SUPPORT R (SKU: 459858-8)
Position 004 – FLAT WASHER 8 (SKU: 253814-8)
Position 005 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 006 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 007 – FLAT WASHER 8 (SKU: 253814-8)
Position 008 – DRIVING LEVER SUPPORT L (SKU: 413B10-4)
Position 009 – PIN 5 (SKU: 268225-4)
Position 010 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
Position 011 – TORSION SPRING 12 (SKU: 232566-4)
Position 012 – SWITCH LEVER (SKU: 327424-8)
Position 013 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 014 – SWITCH BOX SET (SKU: 183V30-9)
Position 015 – COMPRESSION SPRING 15 (SKU: 231227-3)
Position 016 – SWITCH LEVER SUPPORT R (SKU: 413A99-6)
Position 017 – LOCK OFF BUTTON (SKU: 413B00-7)
Position 018 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
Position 019 – SWITCH C3XA-1PSPM (SKU: 651083-9)
Position 020 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 022 – SWITCH CIRCUIT COMPLETE (SKU: 141H35-1)
Position 023 – SWITCH BOX SET (SKU: 183V30-9)
Position 024 – DRIVING LEVER HOLDER (SKU: 413A98-8)
Position 025 – DRIVING LEVER HOLDER (SKU: 413A98-8)
Position 026 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 027 – LEVER BOX SET (SKU: 183U35-3)
Position 028 – SWITCH C3XA-1PSPM (SKU: 651083-9)
Position 029 – SUB CONTROLLER (SKU: 620415-1)
Position 030 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 032 – LEVER BOX C (SKU: 413A95-4)
Position 033 – O-RING 18 (SKU: 213A12-2)
Position 034 – SPEED LEVER (SKU: 413B01-5)
Position 035 – SWITCH LEVER SUPPORT L (SKU: 459863-5)
Position 036 – TORSION SPRING 12 (SKU: 232575-3)
Position 037 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
Position 038 – LEVER BOX SET (SKU: 183U35-3)
Position 039 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 040 – POWER SUPPLY CORD UNIT (SKU: 699184-5)
Position 041 – HANDLE UPPER (SKU: 327871-3)
Position 042 – POWER SUPPLY CORD UNIT (SKU: 699185-3)
Position 043 – FLAT HEAD BOLT M8X50 (SKU: 265C08-1)
Position 044 – THUMB NUT M8 (SKU: 265C06-5)
Position 045 – CLAMP (SKU: 413944-9)
Position 046 – PAN HEAD SCREW M4X35 (SKU: 911163-6)
Position 047 – HANDLE LOWER ASSEMBLY (SKU: 122A73-0)
Position 048 – SPRING PIN 2.5-16 (SKU: 258004-8)
Position 049 – KNOB (SKU: 413943-1)
Position 050 – LOCK HOLDER (SKU: 327877-1)
Position 051 – COMPRESSION SPRING 8 (SKU: 234121-8)
Position 052 – LOCK PIN (SKU: 327876-3)
Position 053 – HEX. BOLT M8 (SKU: 265C07-3)
Position 055 – COMPRESSION SPRING 7 (SKU: 231037-8)
Position 056 – LOCK LEVER (SKU: 413B03-1)
Position 061 – TORSION SPRING 8 (SKU: 232721-8)
Position 062 – ROD 6 (SKU: 327874-7)
Position 063 – HANDLE BRACKET R (SKU: 347867-8)
Position 064 – TAPPING SCREW 5X30 (SKU: 266553-1)
Position 065 – TAPPING SCREW FRANGE 5X20 (SKU: 265C05-7)
Position 067 – HANDLE BRACKET L (SKU: 347866-0)
Position 068 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 069 – TERMINAL HOUSING SET (SKU: 183N35-1)
Position 070 – TERMINAL (SKU: 644809-6)
Position 071 – TERMINAL HOUSING SET (SKU: 183N35-1)
Position 072 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 073 – DLM481 SERIAL NO. LABEL (SKU: 8114F4-1)
Position 074 – DLM481 NAME PLATE (SKU: 8114F1-7)
Position 075 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 076 – REAR GRIP (SKU: 413938-4)
Position 077 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 078 – COWLING COMPLETE (SKU: 141J45-0)
Position 079 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 080 – HEIGHT ADJUST PLATE (SKU: 162993-0)
Position 081 – KEY (SKU: 643535-4)
Position 083 – HEIGHT ADJUST LEVER GRIP (SKU: 413939-2)
Position 084 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 085 – STRAIN RELIEF (SKU: 687123-7)
Position 086 – STRAIN RELIEF (SKU: 687051-6)
Position 087 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 088 – LEAD COVER (SKU: 413B08-1)
Position 089 – POWER SUPPLY CORD UNIT (SKU: 699182-9)
Position 090 – DECK REAR COVER (SKU: 413924-5)
Position 091 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 092 – CONTROLLER (SKU: 620G77-7)
Position 093 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 094 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 095 – MOTOR COVER (SKU: 413B05-7)
Position 096 – DC MOTOR (SKU: 629A90-6)
Position 097 – MOTOR BRACKET COMPLETE (SKU: 141H61-0)
Position 098 – HEX. SOCKET HEAD BOLT M8X16 (SKU: 922422-3)
Position 099 – BAFFLE PLATE (SKU: 459853-8)
Position 100 – TAPPING SCREW 4X14 (SKU: 266385-6)
Position 101 – H.S.H.BOLT M8X30 WITH WG (SKU: 265C22-7)
Position 102 – FAN 170 (SKU: 240229-8)
Position 103 – BLADE SUPPORT 480 (SKU: 313393-9)
Position 104 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 105 – BLADE 480 SET (SKU: 191V97-3)
Position 107 – DECK (SKU: 413A61-1)
Position 108 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 109 – HOOK PLATE (SKU: 347870-9)
Position 110 – TENSION SPRING 17 (SKU: 232717-9)
Position 111 – HEX. FLANGE LOCK NUT M6-10 (SKU: 252301-4)
Position 112 – INDICATION LABEL (SKU: 8046H7-8)
Position 113 – FLAT WASHER 8 (SKU: 253731-2)
Position 114 – CONNECTING ROD R (SKU: 347873-3)
Position 115 – CONNECTING ROD F (SKU: 347872-5)
Position 116 – FLAT WASHER 8 (SKU: 253731-2)
Position 118 – FLAT WASHER 8 (SKU: 267281-1)
Position 119 – ROD HOLDER (SKU: 313389-0)
Position 120 – HEIGHT ADJUST LEVER (SKU: 327872-1)
Position 121 – TORSION SPRING 9 (SKU: 232715-3)
Position 122 – ROD 7 (SKU: 327873-9)
Position 123 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 124 – PLATE (SKU: 347869-4)
Position 125 – HEX. FLANGE HEAD BOLT M8X12 (SKU: 265324-3)
Position 126 – TIRE 180 COMPLETE (SKU: 141E34-5)
Position 127 – BALL BEARING 6001DDW (SKU: 210163-6)
Position 128 – FRONT SHAFT (SKU: 162991-4)
Position 129 – PLATE (SKU: 347869-4)
Position 130 – TAPPING SCREW 4X20 (SKU: 266424-2)
Position 131 – HEX. FLANGE LOCK NUT M6-10 (SKU: 252301-4)
Position 132 – HEX. FLANGE HEAD BOLT M8X12 (SKU: 265324-3)
Position 133 – BALL BEARING 6001DDW (SKU: 210163-6)
Position 134 – TIRE 230 COMPLETE (SKU: 141F63-4)
Position 135 – SPUR GEAR 49 (SKU: 227913-2)
Position 136 – TAPPING SCREW FLANGE 4X12 (SKU: 265B00-1)
Position 137 – PAN HEAD SCREW M5X10 (SKU: 911208-0)
Position 138 – WHEEL CAP (SKU: 413B06-5)
Position 139 – RETAINING RING (EXT) S-12 (SKU: 961052-5)
Position 140 – SPUR GEAR 11 (SKU: 227912-4)
Position 141 – HEX. SOCKET C.S.H. SCREW M5X1 (SKU: 251951-2)
Position 142 – BALL BEARING 6001DDW (SKU: 210163-6)
Position 143 – REAR SHAFT HOLDER (SKU: 313390-5)
Position 144 – REAR SHAFT (SKU: 162992-2)
Position 145 – HEX. FLANGE LOCK NUT M6-10 (SKU: 252301-4)
Position 146 – CLAMP 19 (SKU: 347865-2)
Position 147 – TAPPING SCREW 5X30 (SKU: 266553-1)
Position 148 – DRIVE UNIT (SKU: 122B04-5)
Position 149 – BRACKET (SKU: 347887-2)
Position 150 – TAPPING SCREW 5X16 (SKU: 266388-0)
Position 151 – TAPPING SCREW 5X30 (SKU: 266553-1)
Position 152 – POLYOLEFIN TUBE (SKU: 683A20-1)
Position 158 – PAN HEAD SCREW M4X35 (SKU: 911163-6)
Position 159 – CLAMP (SKU: 413944-9)
