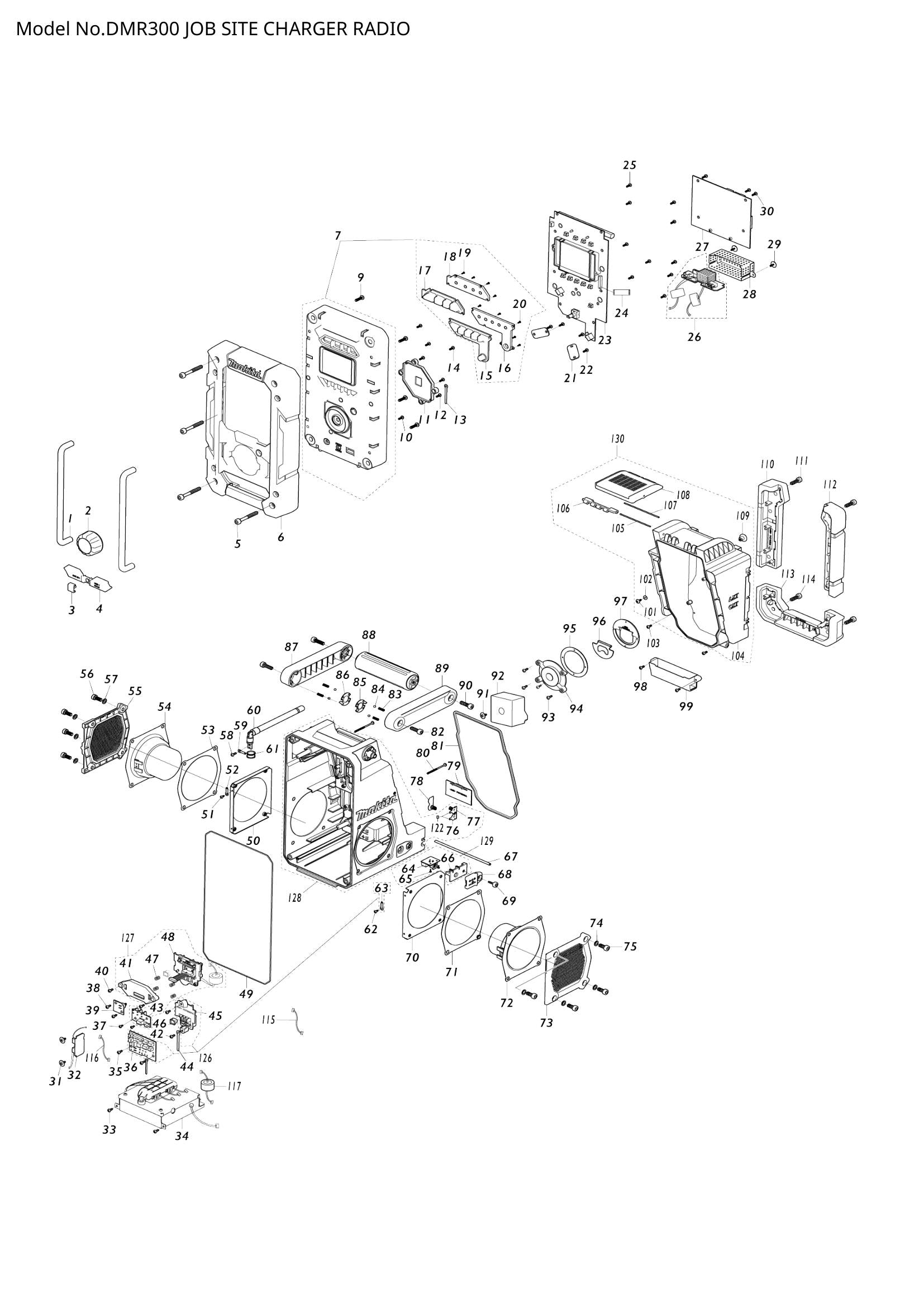

Name: Exploded View – DMR300
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – FRONT BAR (SKU: TC00000001)
Position 002 – VOLUME KNOB (SKU: TC00000002)
Position 003 – USB COVER HOLDER (SKU: TC00000003)
Position 004 – USB COVER (SKU: TC00000004)
Position 005 – SCREW M6X45 (SKU: TC00000005)
Position 006 – FRONT CABINET BLUE (SKU: TC00000006)
Position 007 – FRONT INNER CABINET ASSY (SKU: TC00000162)
Position 009 – SCREW M4X15 (SKU: TC00000009)
Position 010 – SCREW M3X8 (SKU: TC00000011)
Position 011 – VOLUME HOLDER COVER (SKU: TC00000012)
Position 012 – SCREW M3X8 (SKU: TC00000011)
Position 013 – WIRE CLAMP (SKU: TC00000010)
Position 014 – SCREW M3X8 (SKU: TC00000011)
Position 015 – MIDDLE KEY (SKU: TC00000013)
Position 016 – MIDDLE KEY HOLDER (SKU: TC00000014)
Position 017 – TOP KEY (SKU: TC00000016)
Position 018 – TOP KEY HOLDER (SKU: TC00000017)
Position 019 – SCREW M1.7X5 (SKU: TC00000015)
Position 020 – SCREW M1.7X5 (SKU: TC00000015)
Position 021 – COVER PCB (SKU: TC00000019)
Position 022 – SCREW M3X8 (SKU: TC00000011)
Position 023 – PCBA-DISPLAY (SKU: TC00000020)
Position 024 – FLAT CABLE (SKU: TC00000178)
Position 025 – SCREW M3X8 (SKU: TC00000011)
Position 026 – PCBA-USB1 ASSY (SKU: TC00000163)
Position 027 – PCBA-MAIN B (SKU: TC00000025)
Position 028 – SHIELD (SKU: TC00000027)
Position 029 – SCREW M3X8 (SKU: TC00000026)
Position 030 – SCREW M3X8 (SKU: TC00000011)
Position 031 – SCREW M3X8 (SKU: TC00000026)
Position 032 – PCBA-USB2 (SKU: TC00000029)
Position 033 – SCREW M3X8 (SKU: TC00000011)
Position 034 – PCBA CHARGING (SKU: TC00000030)
Position 035 – SCREW M3X8 (SKU: TC00000011)
Position 036 – PCBA-CXT BATTERY (SKU: TC00000031)
Position 037 – SCREW M2.6X6 (SKU: TC00000032)
Position 038 – SCREW M3X8 (SKU: TC00000011)
Position 039 – PCBA-SWITCH (SKU: TC00000033)
Position 040 – SCREW M3X8 (SKU: TC00000011)
Position 041 – LXT TERMINAL HOLDER BLUE (SKU: TC00000034)
Position 042 – SCREW M3X8 (SKU: TC00000011)
Position 043 – PCBA-LXT BATTERY (SKU: TC00000036)
Position 044 – WIRE CLAMP (SKU: TC00000010)
Position 045 – CXT TERMINAL (SKU: TC00000037)
Position 046 – BAT SWITCH BUTTON BLUE (SKU: TC00000038)
Position 047 – LXT SPRING (SKU: TC00000040)
Position 048 – LXT TERMINAL (SKU: TC00000041)
Position 049 – FRONT INNER CABINET RUBBER (SKU: TC00000042)
Position 050 – SPEAKER BRACKET (SKU: TC00000045)
Position 051 – SCREW M2.6X6 (SKU: TC00000032)
Position 053 – SPEAKER RUBBER (SKU: TC00000047)
Position 054 – SPEAKER L (SKU: TC00000048)
Position 055 – SPK COVER (SKU: TC00000049)
Position 056 – SCREW M6X14 (SKU: TC00000050)
Position 057 – RUBBER RING (SKU: TC00000051)
Position 058 – SCREW M3X10 (SKU: TC00000052)
Position 060 – FM ANTENNA (SKU: TC00000053)
Position 061 – RUBBER RING (SKU: TC00000054)
Position 062 – SCREW M2.6X6 (SKU: TC00000032)
Position 064 – PCBA-DC JACK (SKU: TC00000055)
Position 065 – SCREW M1.7X5 (SKU: TC00000015)
Position 066 – DC JACK HOLDER BLUE (SKU: TC00000056)
Position 067 – BACK CABINET SHAFT (SKU: TC00000058)
Position 068 – DC JACK COVER (SKU: TC00000059)
Position 069 – SCREW M3X14 (SKU: TC00000060)
Position 070 – SPEAKER BRACKET (SKU: TC00000045)
Position 071 – SPEAKER RUBBER (SKU: TC00000047)
Position 072 – SPEAKER R (SKU: TC00000174)
Position 073 – SPK COVER (SKU: TC00000049)
Position 074 – RUBBER RING (SKU: TC00000051)
Position 075 – SCREW M6X14 (SKU: TC00000050)
Position 076 – BATTERY PLUS PLATE (SKU: TC00000061)
Position 079 – BATTERY COVER BLUE (SKU: TC00000064)
Position 080 – HEXA SOCKET SCREW T15 3X45 (SKU: TC00000066)
Position 081 – MIDDLE CABINET RUBBER (SKU: TC00000067)
Position 082 – SCREW M6X19 (SKU: TC00000068)
Position 083 – COMPRESSION SPRING (SKU: TC00000069)
Position 084 – STEEL BALL (SKU: TC00000070)
Position 085 – HANDLE PLATE R (SKU: TC00000071)
Position 086 – HANDLE PLATE L (SKU: TC00000072)
Position 087 – HANDLE L BLUE (SKU: TC00000073)
Position 088 – GRIP (SKU: TC00000075)
Position 089 – HANDLE R BLUE (SKU: TC00000076)
Position 090 – SCREW M6X20 (SKU: TC00000078)
Position 091 – SCREW M3X8 (SKU: TC00000026)
Position 092 – BATTERY RUBBER PAD (SKU: TC00000175)
Position 093 – SCREW M3X8 (SKU: TC00000011)
Position 094 – BOTTLE OPENER BACK COVER BL (SKU: TC00000080)
Position 095 – RUBBER RING (SKU: TC00000082)
Position 096 – BOTTLE OPENER (SKU: TC00000085)
Position 097 – HOLDER (SKU: TC00000086)
Position 098 – SCREW M3X8 (SKU: TC00000011)
Position 099 – PHONE POCKET BLUE (SKU: TC00000087)
Position 101 – SCREW M3X8 (SKU: TC00000089)
Position 102 – RUBBER RING (SKU: TC00000090)
Position 103 – SCREW M3X8 (SKU: TC00000011)
Position 104 – BACK CABINET BLUE (SKU: TC00000091)
Position 105 – SHAFT SHORT (SKU: TC00000093)
Position 106 – HINGE BLUE (SKU: TC00000094)
Position 107 – SHAFT LONG (SKU: TC00000096)
Position 108 – LATCH BLUE (SKU: TC00000097)
Position 109 – HOOK (SKU: TC00000099)
Position 110 – CABINET HOLDER L BLUE (SKU: TC00000100)
Position 111 – SCREW M6X19 (SKU: TC00000068)
Position 112 – CABINET HOLDER R BLUE (SKU: TC00000102)
Position 113 – CABINET HOLDER BLUE (SKU: TC00000104)
Position 114 – SCREW M6X19 (SKU: TC00000068)
Position 115 – 4P WIRE (SKU: TC00000179)
Position 116 – 8P WIRE (SKU: TC00000180)
Position 117 – 2P/4P WIRE ASSY (SKU: TC00000181)
Position 122 – LEAD UNIT (SKU: TC00000169)
Position 126 – CXT TERMINAL ASSY (SKU: TC00000164)
Position 127 – LXT TERMINAL ASSY BLUE (SKU: TC00000165)
Position 128 – MIDDLE CABINET ASSY BLUE (SKU: TC00000168)
Position 129 – DC JACK ASSY BLUE (SKU: TC00000172)
Position 130 – BACK CABINET ASSY BLUE (SKU: TC00000176)

Exploded View – DMR300
