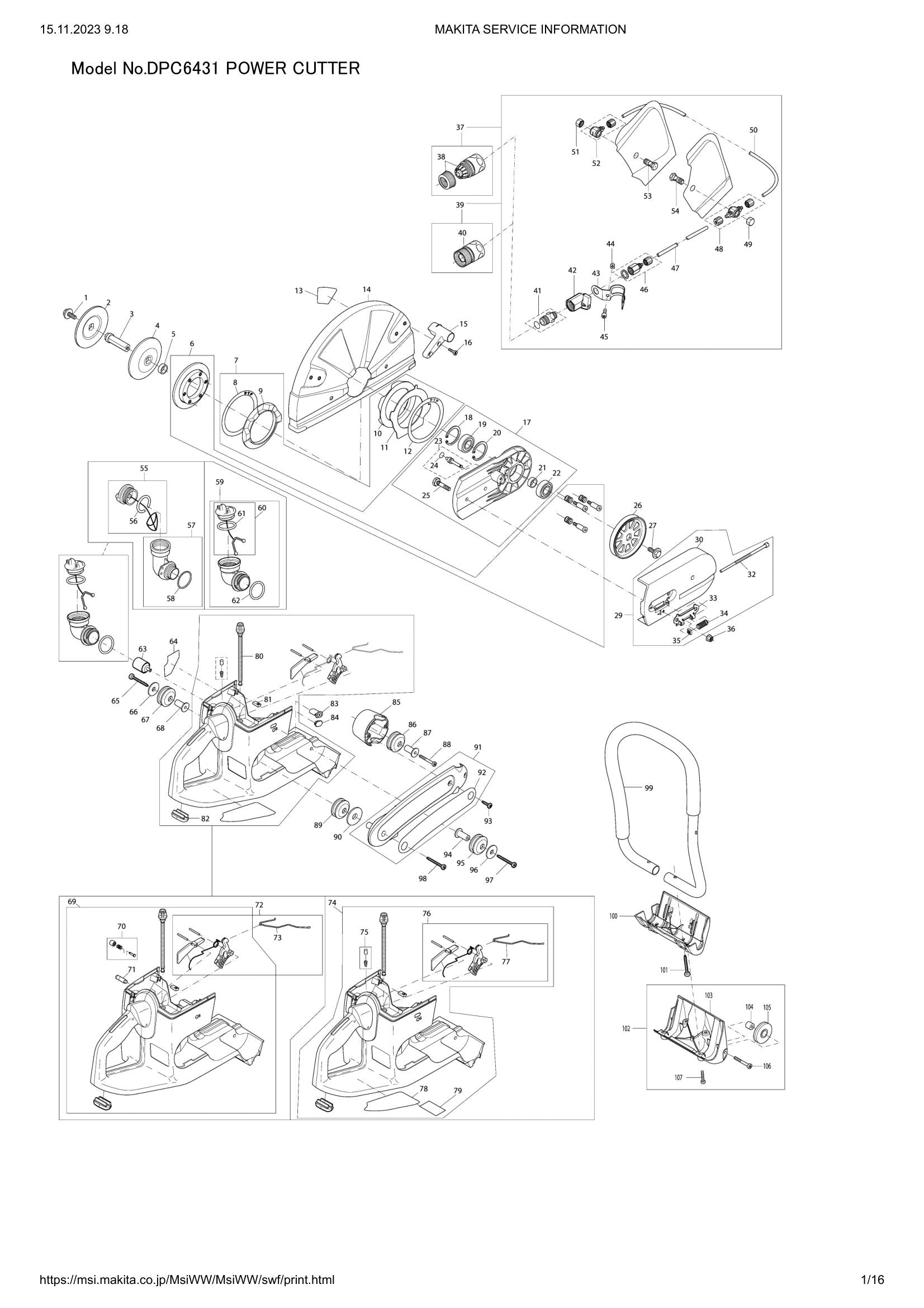

Name: Exploded View – DPC6431
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 006 – PRESSURE RING CPL. (SKU: 394342211)
Position 007 – PROT.HOOD MOUNTING,CPL (SKU: 957342011)
Position 017 – CUTTING DEVICE ASSY. (SKU: 394211740)
Position 023 – BOLT CPL. (SKU: 394342190)
Position 024 – PACKING RING (SKU: 963209020)
Position 035 – SQUARE NUT M6 (SKU: 921906004)
Position 041 – HOSE CONNECTOR (SKU: 964802282)
Position 042 – SHUT OFF COCK (SKU: 964802291)
Position 043 – CLAMP (SKU: 394365163)
Position 044 – SQUARE NUT M6 (SKU: 921906004)
Position 046 – CONNECTING PIECE (SKU: 964802410)
Position 047 – HOSE (SKU: 964802322)
Position 048 – CONNECTING PIECE T (SKU: 964802332)
Position 050 – HOSE (SKU: 964802322)
Position 052 – CONNECTING PIECE L (SKU: 964802342)
Position 055 – TANK CAP CPL.,FUEL (SKU: 010114091)
Position 056 – O-RING (SKU: 963230031)
Position 057 – ANGLAR UNION ASSY. (SKU: 010114081)
Position 058 – O-RING (SKU: 963230031)
Position 065 – H.L.TAPPING SCREW 5,5X45 (SKU: 913455454)
Position 068 – AXLE (SKU: 394114281)
Position 069 – TANK CPL. BLUE (SKU: 394114605)
Position 070 – HALF-THROTTLE LOCK, CPL. (SKU: 957117030)
Position 071 – AIR VALVE CPL. (SKU: 010175050)
Position 072 – THROTTLE MACHANISM, CPL. (SKU: 957117020)
Position 073 – THROTTLE LINKAGE (SKU: 394117011)
Position 076 – THROTTLE MECHANISM, CPL. (SKU: 957117040)
Position 087 – AXLE (SKU: 394114281)
Position 092 – LABEL (SKU: 980115215)
Position 094 – AXLE (SKU: 394114281)
Position 097 – H.L.TAPPING SCREW 5,5X45 (SKU: 913455454)
Position 098 – H.L.TAPPING SCREW 5,5X45 (SKU: 913455454)
Position 101 – H.L.TAPPING SCREW 5,5X45 (SKU: 913455454)
Position 102 – FOOT WITH ROLLER SET (SKU: 394114272)
Position 103 – FOOT (SKU: 394114251)
Position 104 – BUSHING (SKU: 394114240)
Position 105 – ROLLER (SKU: 394114230)
Position 114 – LABEL (SKU: 980114999)
Position 116 – CHOKE SHAFT (SKU: 394150030)
Position 118 – CARBURETOR INSULATOR (SKU: 394131101)
Position 122 – CONNECTING MUFF CPL. (SKU: 395171072)
Position 123 – FOAM INSERT (SKU: 395173030)
Position 124 – TUBE(L=1M) (SKU: 395171022)
Position 126 – CONNECTING MUFF CPL. (SKU: 395171072)
Position 140 – ENGINE HOOD CPL. (SKU: 395118093)
Position 147 – INNER FILTER (SKU: 395173021)
Position 151 – CYLINDER & PISTON SET (SKU: 327130140)
Position 155 – CIRCLIP 12 (SKU: 119132060)
Position 171 – RUBBER PLATE (SKU: 965402870)
Position 173 – CRANKCASE CPL. LEFT SIDE (SKU: 326111731)
Position 191 – V-BELT (SKU: 965300470)
Position 200 – IGNITION CABLE L=1M (SKU: 970310200)
Position 201 – PLUG CAP COMPLETE (SKU: 957604260)
Position 202 – SPARK PLUG (BPMR7A) (SKU: 168648-5)
Position 216 – HOUSING (SKU: 395160630)
Position 220 – MAKITA LOGO LABEL (SKU: 980115214)
Position 221 – STARTER ASSY. BLUE (SKU: 394112642)
Position 222 – STARTER GRIP (SKU: 001161020)
Position 223 – STARTER HOUSING BLUE (SKU: 394112621)
Position 224 – REWIND SPRING IN HOUSING (SKU: 394163020)
Position 226 – STARTER ROPE DRUM (SKU: 394162040)
Position 227 – AIR GUIDE PLATE (SKU: 394112141)
Position 235 – PUMP COVER COMPLETE (SKU: 394151160)
Position 236 – SCREW (SKU: 144150170)
Position 237 – SET DIAPHRAGM / GASKETS (SKU: 957151180)
Position 238 – PUMP DIAPHRAGM (SKU: 394151150)
Position 239 – SCREEN (SKU: 021151180)
Position 240 – COVER DISC (SKU: 394151040)
Position 241 – LOCKING BALL (SKU: 394151510)
Position 242 – CONTROL PARTS (SKU: 957151191)
Position 243 – DIAPHRAGM COVER (SKU: 395151120)
Position 244 – SCREW (SKU: 378151220)
Position 245 – THROTTLE SHAFT (SKU: 395151130)
Position 246 – BUSHING (SKU: 394151315)
Position 247 – TORSION SPRING (SKU: 395151150)
Position 248 – BUSHING (SKU: 394151315)
Position 249 – PACKING RING (SKU: 394151330)
Position 250 – THROTTLE SHUTTER (SKU: 394151320)
Position 251 – SCREW (SKU: 394151660)
Position 252 – PACKING RING (SKU: 394151330)
Position 253 – DISC (SKU: 394151400)
Position 254 – SHAFT CLIP (SKU: 108151350)
Position 255 – SCREW (SKU: 378151220)
Position 256 – CHOKE SHAFT (SKU: 395151170)
Position 257 – WASHER (SKU: 170151290)
Position 258 – FAST IDLE LEVER (SKU: 395151110)
Position 259 – TORSION SPRING (SKU: 395151190)
Position 260 – CHOKE SHUTTER (SKU: 395151265)
Position 261 – SCREW (SKU: 394151660)
Position 262 – SHAFT CLIP (SKU: 119151350)
Position 263 – CHOKE LEVER (SKU: 395151180)
Position 264 – SCREW (SKU: 394151660)
Position 265 – IDLE STOP SCREW (SKU: 395151140)
Position 266 – CARBURETOR WJ-123 (SKU: 395151050)
Position 267 – PUMP COVER COMPLETE (SKU: 394151160)
Position 268 – SCREW (SKU: 144150170)
Position 269 – SET DIAPHRAGM / GASKETS (SKU: 957151180)
Position 270 – PUMP DIAPHRAGM (SKU: 394151150)
Position 271 – SCREEN (SKU: 021151180)
Position 272 – COVER DISC (SKU: 394151040)
Position 273 – LOCKING BALL (SKU: 394151510)
Position 274 – CONTROL PARTS (SKU: 957151191)
Position 275 – DIAPHRAGM COVER (SKU: 395151120)
Position 276 – SCREW (SKU: 378151220)
Position 277 – THROTTLE SHAFT (SKU: 394151300)
Position 278 – BUSHING (SKU: 394151315)
Position 279 – SPRING (SKU: 394151310)
Position 280 – BUSHING (SKU: 394151315)
Position 281 – PACKING RING (SKU: 394151330)
Position 282 – THROTTLE SHUTTER (SKU: 394151320)
Position 283 – SCREW (SKU: 394151650)
Position 284 – PACKING RING (SKU: 394151330)
Position 285 – DISC (SKU: 394151400)
Position 286 – SHAFT CLIP (SKU: 108151350)
Position 287 – SCREW (SKU: 378151220)
Position 288 – IDLE STOP SCREW(S) (SKU: 394151570)
Position 289 – IDLE ADJUSTMENT SCREW L (SKU: 394151470)
Position 290 – SPRING (SKU: 021151480)
Position 291 – MAIN ADJUSTMENT SCREW (SKU: 001151450)
Position 292 – SPRING (SKU: 021151480)
Position 293 – CHOKE SHUTTER (SKU: 395151260)
Position 294 – SCREW (SKU: 394151660)
Position 295 – LOCKING SPRING (SKU: 118151160)
Position 296 – LOCKING BALL (SKU: 118151170)
Position 297 – CHOKE SHAFT (SKU: 394151250)

Exploded View – DPC6431

Description

Exploded View – DPC6431
