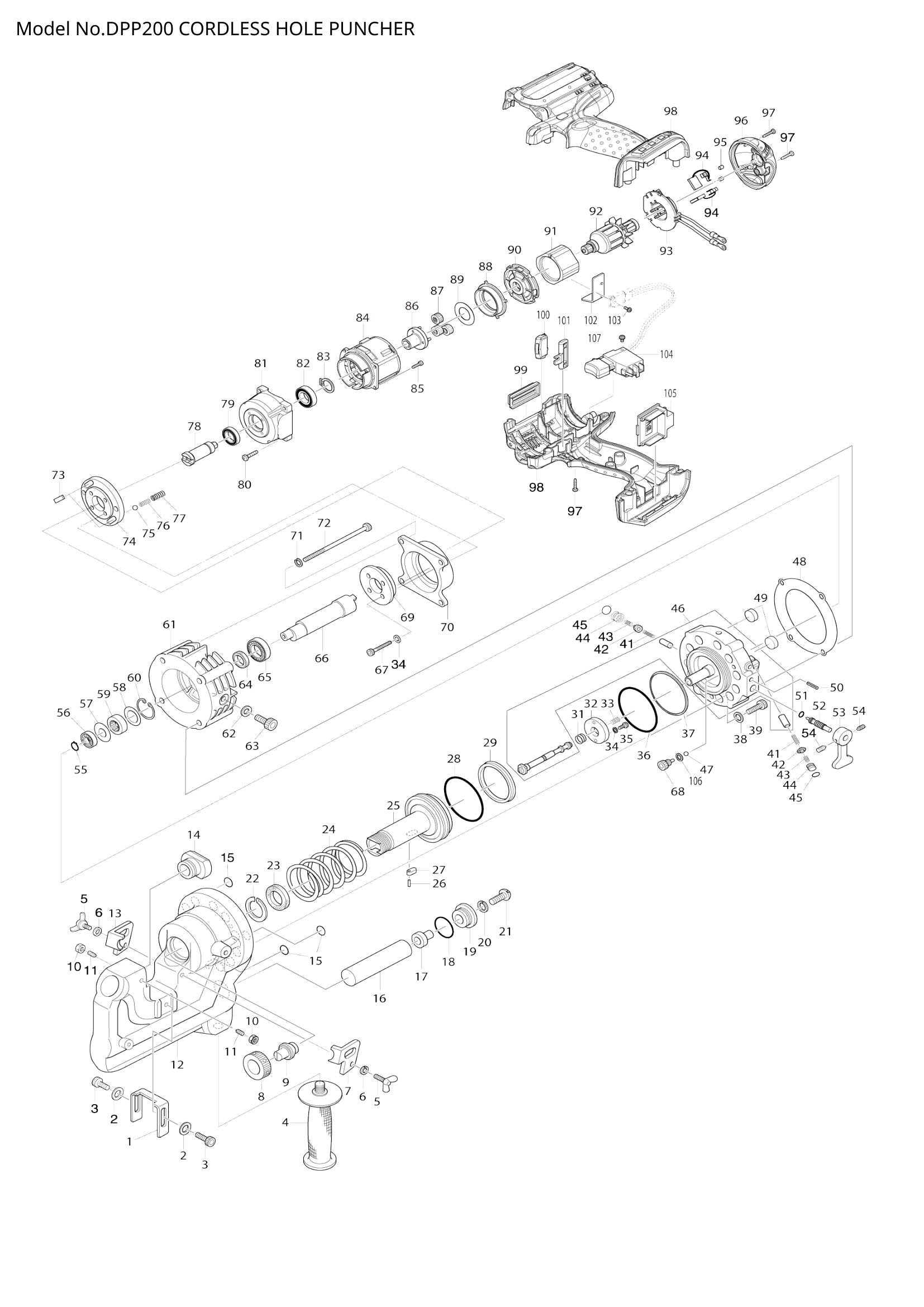

Name: Exploded View – DPP200
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – SLIDE STOPPPER (SKU: SC03505970)
Position 002 – FLAT WASHER 5 (SKU: 941101-4)
Position 004 – GRIP M14 (SKU: SC00000155)
Position 005 – WING BOLT M6X15 (SKU: SC07552000)
Position 006 – SPRING WASHER 6 (SKU: 942151-2)
Position 007 – STRIPPER R (SKU: SC03302040)
Position 009 – PUNCH 12 (SKU: SC05340100)
Position 010 – HEX. NUT M6 (SKU: 931301-4)
Position 011 – SET SCREW (CONE POINT) M6X1 (SKU: 913327-8)
Position 012 – C FRAME (SKU: SC03103700)
Position 013 – STRIPPER L (SKU: SC03302050)
Position 014 – DIE SB-12 (SKU: SC00000215)
Position 015 – O RING P8 (SKU: SC06505030)
Position 016 – OIL LEVELER SACK (SKU: SC09004910)
Position 017 – BUSH (SKU: SC00000082)
Position 018 – O RING P26 (SKU: SC06505320)
Position 019 – BUSHING HOLDER (SKU: SC03507010)
Position 020 – SPRING WASHER 8 (SKU: SC00000065)
Position 021 – SPECIAL PAN HEAD SCREW M8X2 (SKU: SC00000034)
Position 022 – BACK UP RING (SKU: SC06503640)
Position 023 – SKY PACKING (SKU: SC06505880)
Position 024 – RETURN SPRING FOR CUTTER RO (SKU: SC04000050)
Position 025 – ROD (SKU: SC03110750)
Position 026 – SPRING PIN 2.5X10 (SKU: SC00000070)
Position 027 – KEY (SKU: SC03700020)
Position 028 – O RING S67 (SKU: SC06505510)
Position 029 – ROD PACKING (SKU: SC00000096)
Position 031 – BULB RETURN SPRING (SKU: SC04005130)
Position 032 – STOPPER PLATE (SKU: SC03500690)
Position 033 – RELEASE BULB SPRING (SKU: SC04004170)
Position 034 – FLAT WASHER 4 (SKU: SC00000068)
Position 035 – HEX. SOCKET HEAD BOLT 4X6 (SKU: SC00000060)
Position 036 – O RING G65 (SKU: SC06505190)
Position 037 – BACK UP RING G65 (SKU: SC06503630)
Position 038 – WASHER HW8 (SKU: SC07620040)
Position 039 – HEX. SOCKET HEAD BOLT M8X22 (SKU: SC07514130)
Position 041 – PISTON RETURN SPRING (SKU: SC00000150)
Position 042 – CHECK VALVE (SKU: SC00000149)
Position 043 – CHECK VALVE SPRING (SKU: SC00000021)
Position 044 – METAL PACKING (SKU: SC03500540)
Position 045 – O RING S-8 (SKU: SC06505590)
Position 046 – CYLINDER COMPLETE (SKU: SC09050110)
Position 047 – STEEL BALL S4 (SKU: SC07900010)
Position 048 – LINER B (SKU: SC04601600)
Position 049 – MAGNET (SKU: SC00000020)
Position 050 – SPRING PIN 4-20 (SKU: 951116-3)
Position 051 – O RING P4 (SKU: SC00000158)
Position 052 – RETURN VALVE (SKU: SC00000146)
Position 053 – RETURN LEVER (SKU: SC00000147)
Position 054 – SET SCREW (CUP POINT) M6X6 (SKU: 913301-6)
Position 055 – CIRCLIP STW5 (SKU: SC07411250)
Position 056 – BALL BEARING 698 (SKU: SC07100050)
Position 057 – WASHER B (SKU: SC03301350)
Position 058 – WASHER A (SKU: SC03301340)
Position 059 – NEEDLE BEARING (SKU: SC07201030)
Position 060 – RETAINING RING H25 (SKU: SC07411330)
Position 061 – PUMP CASE (SKU: SC03211330)
Position 062 – SEAL WASHER (SKU: SC00000489)
Position 063 – HEX. SOCKET HEAD BOLT M10X1 (SKU: SC00000161)
Position 064 – OIL SEAL UE15257 (SKU: SC06504050)
Position 065 – BALL BEARING 6002RU (SKU: SC00000050)
Position 066 – CRANK SHAFT (SKU: SC03501070)
Position 067 – HEX. SOCKET HEAD BOLT M4X25 (SKU: SC07511070)
Position 068 – SEAL BOLT (SKU: SC03513230)
Position 069 – FLANGE (SKU: SC03251180)
Position 070 – SPACER (SKU: SC03251320)
Position 071 – SPRING WASHER 5 (SKU: 942101-7)
Position 072 – HEX. SOCKET HEAD BOLT M5X65 (SKU: SC07512130)
Position 073 – LEAF SPRING (SKU: SC04007990)
Position 074 – FLANGE FOR MOTOR (SKU: SC03252560)
Position 075 – STEEL BALL D6 (SKU: SC07900080)
Position 076 – POSITION SPRING B (SKU: SC04007970)
Position 077 – POSITION SPRING A (SKU: SC04007960)
Position 078 – SPINDLE (SKU: 326213-8)
Position 079 – BALL BEARING 6802LLB (SKU: 211233-4)
Position 080 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 081 – GEAR CASE B (SKU: 318455-8)
Position 082 – BALL BEARING 6902LLB (SKU: 211234-2)
Position 083 – RETAINING RING S-15 (SKU: 961055-9)
Position 084 – GEAR CASE (SKU: 419252-6)
Position 085 – PAN HEAD SCREW M3X12 (SKU: 911017-7)
Position 086 – CARRIER COMPLETE (SKU: 141744-4)
Position 087 – SPUR GEAR 16 COMPLETE (SKU: 154468-3)
Position 088 – INTERNAL GEAR 46 (SKU: 227129-9)
Position 089 – FLAT WASHER 18 (SKU: 267789-5)
Position 090 – MOTOR BRACKET (SKU: 450386-6)
Position 091 – YOKE UNIT (SKU: 632J71-5)
Position 092 – ARMATURE (SKU: 619165-3)
Position 093 – BRUSH HOLDER COMPLETE (SKU: 638849-4)
Position 095 – RUBBER PIN 4 (SKU: 263032-0)
Position 096 – REAR COVER (SKU: 419642-3)
Position 097 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 098 – HOUSING SET (SKU: 183G51-1)
Position 099 – COVER (SKU: 451163-9)
Position 100 – LENS CASE (SKU: 687216-0)
Position 101 – LOCK LEVER (SKU: 451162-1)
Position 102 – HEATSINK (SKU: 689145-3)
Position 103 – +PAN HEAD SCREW M3X9 WITH (SKU: 652066-2)
Position 104 – SWITCH TG553FSB-4B (SKU: 650653-1)
Position 105 – TERMINAL (SKU: 644808-8)
Position 106 – WASHER WM3 (SKU: SC07600130)
Position 107 – +PAN HEAD SCREW M3.5X5 (SKU: 652045-0)

Exploded View – DPP200
