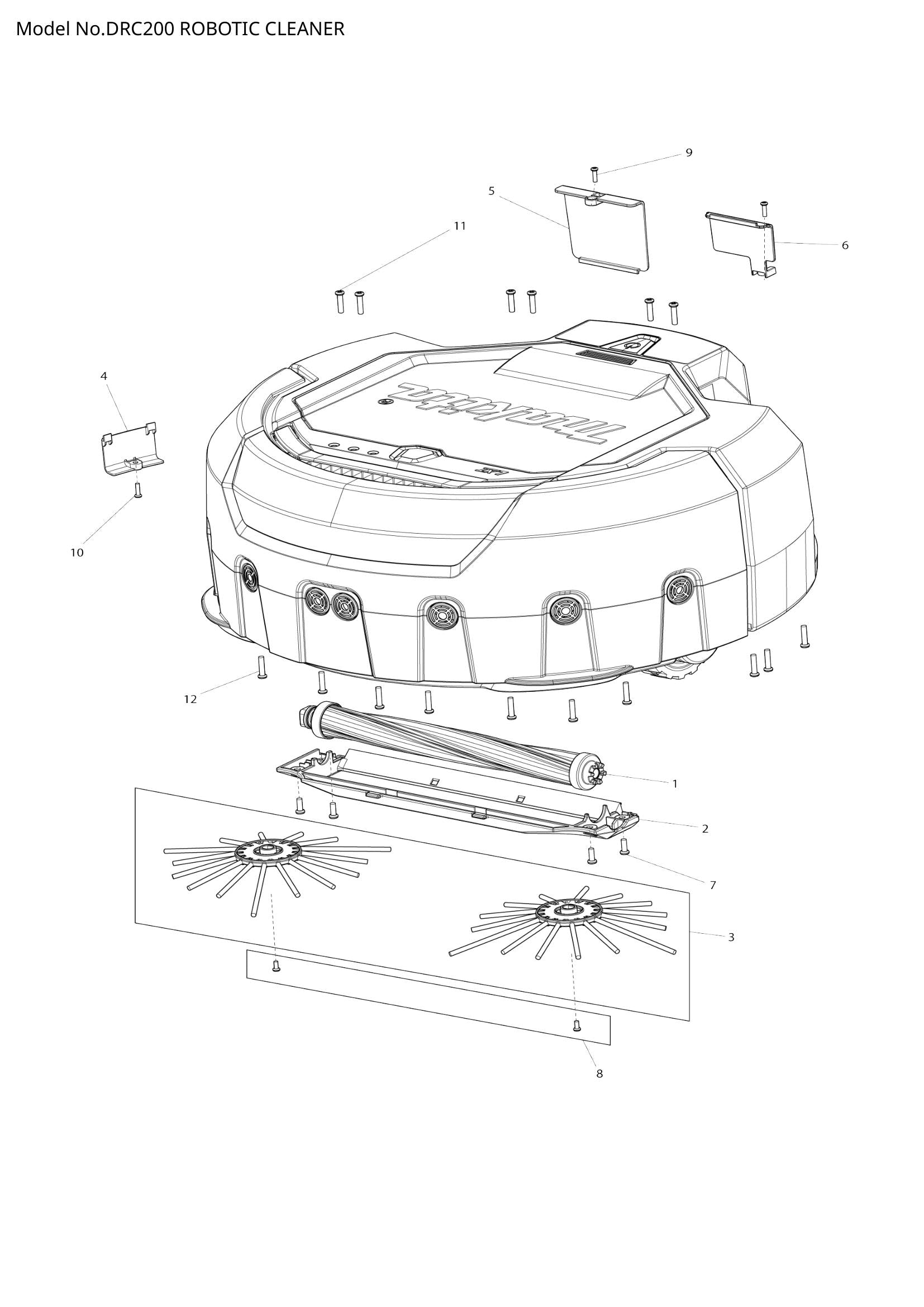

Name: Exploded View – DRC200
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 003 – SIDE BRUSH ASSY 2PCS (SKU: SH00000065)
Position 004 – FW COVER (SKU: SH00000066)
Position 007 – SCREW(M4X8 MACHIN) (SKU: SH00000069)
Position 008 – SB SCREW ASSY 2PCS (SKU: SH00000070)
Position 009 – SCREW(M3X10) (SKU: SH00000071)
Position 010 – SCREW(M3X10) (SKU: SH00000071)
Position 011 – SCREW(M4X16) (SKU: SH00000221)
Position 012 – SCREW(M4X16) (SKU: SH00000221)
Position 016 – RF HOLDER (SKU: SH00000075)
Position 020 – INSULATING SHEET (SKU: SH00000080)
Position 021 – TERMINAL HOLDER L (SKU: SH00000081)
Position 022 – TERMINAL HOLDER R (SKU: SH00000082)
Position 023 – RUBBER PIN (SKU: SH00000083)
Position 024 – RUBBER PIN (SKU: SH00000083)
Position 025 – FRONT ROLLER SHAFT (SKU: SH00000084)
Position 038 – WEIGHT PLATE (SKU: SH00000089)
Position 039 – BUMPER ANGLE L (SKU: SH00000090)
Position 041 – BUMPER SPRING (SKU: SH00000092)
Position 042 – BUMPER SPRING (SKU: SH00000092)
Position 043 – SB UNIT L ASSY (SKU: SH00000093)
Position 044 – SB UNIT R ASSY (SKU: SH00000094)
Position 048 – WHEEL SPRING (SKU: SH00000098)
Position 049 – WHEEL SPRING (SKU: SH00000098)
Position 050 – AIR DUCT UNIT ASSY (SKU: SH00000099)
Position 051 – BUMPER SW CABLE (SKU: SH00000101)
Position 052 – BUMPER SW CABLE (SKU: SH00000101)
Position 053 – COOLING FAN S ASSY (SKU: SH00000223)
Position 054 – COOLING FAN SEAL (SKU: SH00000224)
Position 056 – BATTERY CABLE R (SKU: SH00000105)
Position 057 – BATTERY PS CABLE (SKU: SH00000106)
Position 058 – BATTERY SIGNAL CABLE (SKU: SH00000107)
Position 059 – BATTERY EARTH CABLE (SKU: SH00000108)
Position 060 – AS CABLE (SKU: SH00000109)
Position 061 – CLIFF SENSOR CABLE L (SKU: SH00000242)
Position 062 – CLIFF SENSOR CABLE R (SKU: SH00000243)
Position 063 – SCREW(M3X8XWASHER8) (SKU: SH00000110)
Position 064 – SCREW(M3X8XWASHER8) (SKU: SH00000110)
Position 065 – SCREW(M3X8XWASHER8) (SKU: SH00000110)
Position 066 – SCREW(M4X10) (SKU: SH00000111)
Position 067 – SCREW(M4X10) (SKU: SH00000111)
Position 068 – SCREW(M4X10) (SKU: SH00000111)
Position 069 – SCREW(M4X10) (SKU: SH00000111)
Position 070 – SCREW(M4X10) (SKU: SH00000111)
Position 071 – SCREW(M4X10) (SKU: SH00000111)
Position 072 – SCREW(M4X10) (SKU: SH00000111)
Position 073 – SCREW(M4X10) (SKU: SH00000111)
Position 074 – SCREW(M4X10) (SKU: SH00000111)
Position 075 – SCREW(M4X10) (SKU: SH00000111)
Position 076 – SCREW(M4X10) (SKU: SH00000111)
Position 077 – SCREW(M4X10) (SKU: SH00000111)
Position 078 – SCREW(M4X10) (SKU: SH00000111)
Position 079 – SCREW(M4X10) (SKU: SH00000111)
Position 080 – SCREW(M4X10) (SKU: SH00000111)
Position 081 – SCREW(M4X10) (SKU: SH00000111)
Position 082 – SCREW(M4X10) (SKU: SH00000111)
Position 083 – SCREW(M4X10) (SKU: SH00000111)
Position 084 – WASHER(4.5X13XT1) (SKU: SH00000112)
Position 085 – SCREW(M5X10XWASHER16) (SKU: SH00000113)
Position 088 – PC WASHER (SKU: SH00000226)
Position 095 – FERRITE CORE (SKU: SH00000244)
Position 101 – MOTOR S ASSY (SKU: SH00000114)
Position 102 – SB MOTOR HOLDER L (SKU: SH00000115)
Position 103 – SB MOTOR COVER (SKU: SH00000116)
Position 104 – SB METAL (SKU: SH00000117)
Position 105 – SB GEAR 4 ASSY (SKU: SH00000118)
Position 106 – SB GEAR 3 (SKU: SH00000119)
Position 107 – SB GEAR 2 (SKU: SH00000120)
Position 108 – COMMON SHAFT 1 (SKU: SH00000121)
Position 109 – SB GEAR SHAFT 1 (SKU: SH00000122)
Position 110 – SCREW(M2.6X4 MACHINE) (SKU: SH00000123)
Position 111 – SIDE BRUSH CABLE (SKU: SH00000124)
Position 112 – SCREW(M3X10) (SKU: SH00000071)
Position 113 – MOTOR SEAL (SKU: SH00000227)
Position 114 – MOTOR S ASSY (SKU: SH00000114)
Position 115 – SB MOTOR HOLDER R (SKU: SH00000125)
Position 116 – SB MOTOR COVER (SKU: SH00000116)
Position 117 – SB METAL (SKU: SH00000117)
Position 118 – SB GEAR 2 (SKU: SH00000120)
Position 119 – SB GEAR 3 (SKU: SH00000119)
Position 120 – SB GEAR 4 ASSY (SKU: SH00000118)
Position 121 – COMMON SHAFT 1 (SKU: SH00000121)
Position 122 – SB GEAR SHAFT 1 (SKU: SH00000122)
Position 123 – SCREW(M2.6X4 MACHINE) (SKU: SH00000123)
Position 124 – SIDE BRUSH CABLE (SKU: SH00000124)
Position 125 – SCREW(M3X10) (SKU: SH00000071)
Position 126 – MOTOR SEAL (SKU: SH00000227)
Position 128 – PB SUPPORT COVER K (SKU: SH00000127)
Position 129 – PB BELT GEAR 2 (SKU: SH00000129)
Position 130 – BELT GEAR SHAFT (SKU: SH00000130)
Position 131 – PB BELT GEAR 3 (SKU: SH00000131)
Position 133 – BEARING (SKU: SH00000133)
Position 134 – BEARING (SKU: SH00000133)
Position 135 – P WASHER 050 (SKU: SH00000134)
Position 136 – P WASHER 050 (SKU: SH00000134)
Position 138 – TIMING BELT (SKU: SH00000136)
Position 139 – PB MOTOR CABLE (SKU: SH00000137)
Position 140 – SCREW(M3X10) (SKU: SH00000071)
Position 142 – MAIN WHEEL SHAFT (SKU: SH00000152)
Position 143 – SCREW(M3X10) (SKU: SH00000071)
Position 144 – SCREW(M3X10) (SKU: SH00000229)
Position 145 – MOTOR SEAL (SKU: SH00000227)
Position 147 – WHEEL GEAR BOX L (SKU: SH00000140)
Position 148 – WHEEL GEAR COVER L (SKU: SH00000141)
Position 149 – MW MOTOR S ASSY (SKU: SH00000142)
Position 150 – WHEEL METAL RING (SKU: SH00000143)
Position 151 – WHEEL GEAR 2 (SKU: SH00000144)
Position 152 – WHEEL GEAR 3 (SKU: SH00000145)
Position 153 – WHEEL GEAR 4 (SKU: SH00000146)
Position 154 – WHEEL GEAR 5 (SKU: SH00000147)
Position 155 – WHEEL GEAR SHAFT 1 (SKU: SH00000148)
Position 156 – WHEEL L UNIT COVER (SKU: SH00000151)
Position 157 – WHEEL CABLE (SKU: SH00000153)
Position 158 – SCREW(M2.6X4 MACHINE) (SKU: SH00000123)
Position 161 – MAIN WHEEL SHAFT (SKU: SH00000152)
Position 162 – SCREW(M3X10) (SKU: SH00000071)
Position 163 – SCREW(M3X10) (SKU: SH00000229)
Position 164 – MOTOR SEAL (SKU: SH00000227)
Position 166 – WHEEL GEAR BOX R (SKU: SH00000155)
Position 167 – WHEEL GEAR COVER R (SKU: SH00000156)
Position 168 – MW MOTOR S ASSY (SKU: SH00000142)
Position 169 – WHEEL METAL RING (SKU: SH00000143)
Position 170 – WHEEL GEAR 2 (SKU: SH00000144)
Position 171 – WHEEL GEAR 3 (SKU: SH00000145)
Position 172 – WHEEL GEAR 4 (SKU: SH00000146)
Position 173 – WHEEL GEAR 5 (SKU: SH00000147)
Position 174 – WHEEL GEAR SHAFT 1 (SKU: SH00000148)
Position 176 – WHEEL CABLE (SKU: SH00000153)
Position 177 – SCREW(M2.6X4 MACHINE) (SKU: SH00000123)
Position 178 – AIR DUCT FRONT (SKU: SH00000159)
Position 179 – AIR DUCT REAR (SKU: SH00000160)
Position 180 – FAN MOTOR UNIT ASSY (SKU: SH00000161)
Position 181 – FAN CUSHION (SKU: SH00000162)
Position 182 – PHOTO SENSOR (SKU: SH00000077)
Position 183 – INTAKE SEAL (SKU: SH00000163)
Position 184 – CUP SENSOR CABLE (SKU: SH00000164)
Position 185 – FAN MOTOR CABLE (SKU: SH00000165)
Position 186 – SCREW(M4X10) (SKU: SH00000111)
Position 187 – REAR CASTER FRAME (SKU: SH00000166)
Position 188 – REAR CASTER SHAFT (SKU: SH00000167)
Position 189 – U RING (SKU: SH00000135)
Position 191 – BUMPER (SKU: SH00000169)
Position 192 – BUMPER DECO (SKU: SH00000170)
Position 200 – US CABLE C (SKU: SH00000245)
Position 201 – US CABLE 1 (SKU: SH00000179)
Position 202 – US CABLE 1 (SKU: SH00000179)
Position 203 – US CABLE 2 (SKU: SH00000180)
Position 204 – US CABLE 2 (SKU: SH00000180)
Position 205 – US CABLE 3 (SKU: SH00000181)
Position 206 – US CABLE 3 (SKU: SH00000181)
Position 207 – US EARTH CABLE (SKU: SH00000182)
Position 208 – WASHER(4.5/25/T1) (SKU: SH00000183)
Position 209 – SCREW(M4X10) (SKU: SH00000111)
Position 211 – SCREW(M3X6) (SKU: SH00000184)
Position 212 – SCREW(M3X6) (SKU: SH00000184)
Position 213 – SCREW(M3X6) (SKU: SH00000184)
Position 214 – SCREW(M3X6) (SKU: SH00000184)
Position 215 – SCREW(M3X6) (SKU: SH00000184)
Position 216 – SCREW(M3X6) (SKU: SH00000184)
Position 217 – SCREW(M3X6) (SKU: SH00000184)
Position 218 – UPPER BODY (SKU: SH00000185)
Position 219 – CASE COVER K (SKU: SH00000247)
Position 220 – HANDLE (SKU: SH00000187)
Position 222 – UI BUTTON (SKU: SH00000189)
Position 224 – UI PWB HOLDER (SKU: SH00000191)
Position 225 – LED LENS L (SKU: SH00000192)
Position 226 – LED LENS SEAL (SKU: SH00000193)
Position 227 – LED REFLECTOR (SKU: SH00000194)
Position 228 – LED PWB ASSY (SKU: SH00000195)
Position 229 – BUZZER PWB ASSY (SKU: SH00000196)
Position 231 – FILTER BUTTON SP (SKU: SH00000198)
Position 233 – INTAKE PACKING (SKU: SH00000200)
Position 234 – NOZZLE PACKING (SKU: SH00000201)
Position 235 – NOZZLE SEAL (SKU: SH00000202)
Position 236 – UI KEY SHEET (SKU: SH00000248)
Position 237 – LED LENS S (SKU: SH00000204)
Position 238 – EXHAUST FILTER ASSY (SKU: SH00000205)
Position 239 – CATCH LATCH (SKU: SH00000206)
Position 240 – UI CABLE (SKU: SH00000249)
Position 241 – LED CABLE (SKU: SH00000208)
Position 242 – SCREW(M3X8XWASHER8) (SKU: SH00000110)
Position 243 – SCREW(M3X8XWASHER8) (SKU: SH00000110)
Position 244 – SCREW(M3X8XWASHER8) (SKU: SH00000110)
Position 245 – SCREW(M3X6) (SKU: SH00000184)
Position 246 – SCREW(M3X10) (SKU: SH00000071)
Position 247 – SCREW(M3X10) (SKU: SH00000071)
Position 248 – SCREW(M3X10) (SKU: SH00000071)
Position 249 – SCREW(M4X10) (SKU: SH00000111)
Position 250 – DUST BOX LOWER (SKU: SH00000209)
Position 251 – DUST CASE (SKU: SH00000210)
Position 252 – DUST SEAL RING (SKU: SH00000211)
Position 253 – DUST BOX UPPER (SKU: SH00000212)
Position 254 – FILTER UNIT'S ASSY (SKU: SH00000213)
Position 255 – DUST BOX COVER (SKU: SH00000214)
Position 256 – DUST SLIDE LEVER (SKU: SH00000215)
Position 257 – DUST BOX PIN (SKU: SH00000216)
Position 258 – CAUTION LABEL (SKU: SH00000252)
Position 259 – ROBOPRO LABEL (SKU: SH00000253)
Position 260 – FERRITE CORE (SKU: SH00000244)
Position 261 – FERRITE CORE (SKU: SH00000244)
Position 262 – BATTERY CIRCUIT FILM (SKU: SH00000274)
Position 263 – FILM (SKU: SH00000275)
Position 264 – CLEAR FILM (SKU: SH00000276)
Position 300 – RF CONTROLLER ASSY (SKU: SH00000219)
Position 301 – SENSOR WALL TAPE EUrope (SKU: SH00000231)
Position 302 – BL SENSOR SEAL (SKU: SH00000281)
Position 304 – TAPPING SCREW M3X16 (SKU: SH00000407)

Exploded View – DRC200

Description

Exploded View – DRC200
