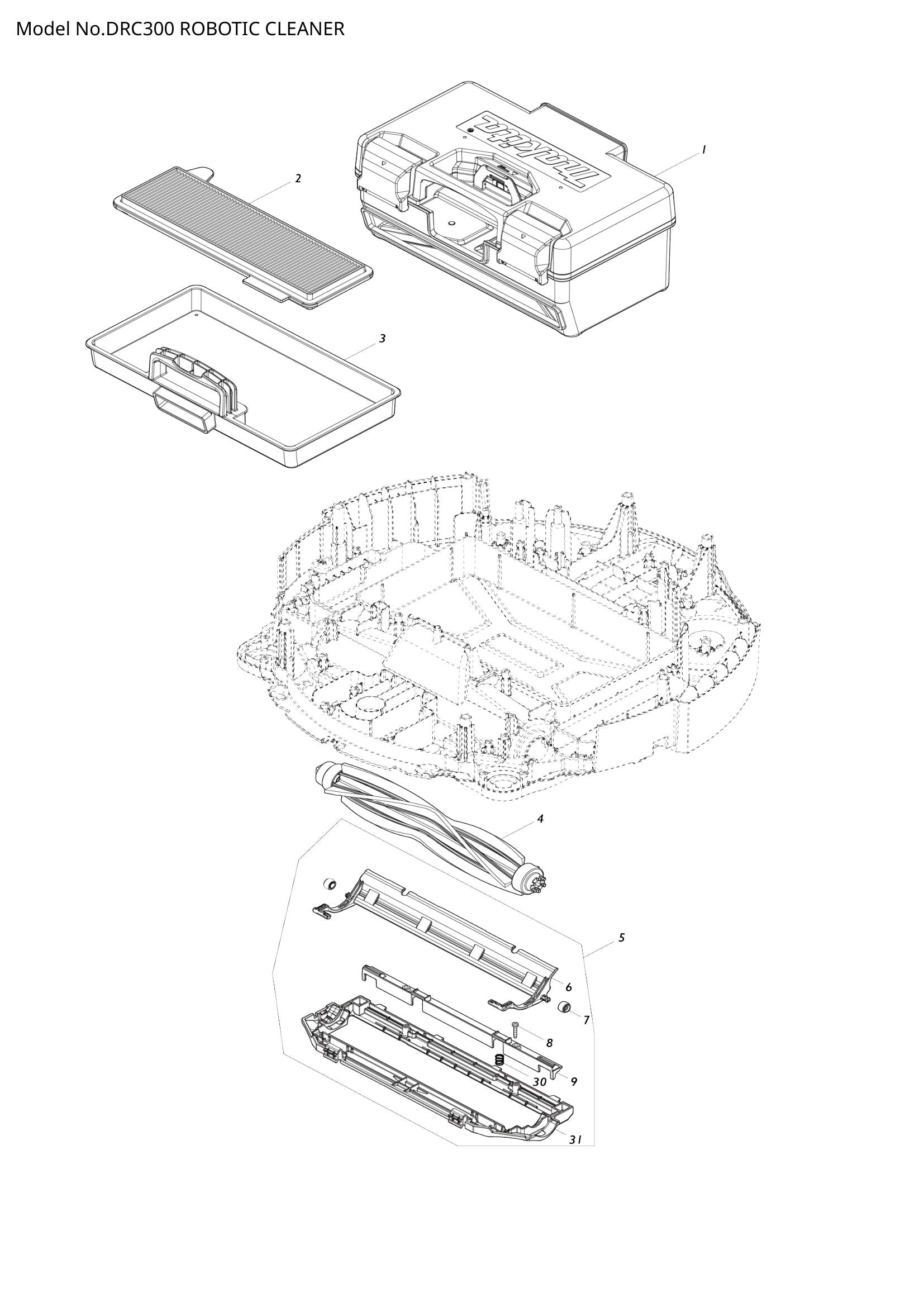

Name: Exploded View – DRC300
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – DUST BOX COMPLETE (SKU: 141A46-4)
Position 002 – FILTER H COMPLETE SET (SKU: 191P31-7)
Position 003 – UPPER TANK (SKU: 413500-5)
Position 004 – MAIN BRUSH COMPLETE SET (SKU: 191P22-8)
Position 005 – BOTTOM PLATE ASSEMBLY SET (SKU: 191P24-4)
Position 006 – BRUSH C ASSEMBLY (SKU: 136530-6)
Position 007 – BOTTOM ROLLER 11 (SKU: 413585-1)
Position 008 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 009 – BOTTOM CAP (SKU: 413586-9)
Position 010 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 011 – CLIFF SENSOR ASSY REPAIR SET (SKU: 1910L6-4)
Position 012 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 013 – TERMINAL COVER R COMPLETE (SKU: 141B82-6)
Position 014 – DRC300 SERIAL NO. LABEL (SKU: 811U06-7)
Position 015 – TERMINAL (SKU: 643523-1)
Position 016 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 017 – TERMINAL BASE (SKU: 413478-2)
Position 018 – FERRITE CORE (SKU: 688234-1)
Position 019 – PACKING A (SKU: 413554-2)
Position 020 – TERMINAL COVER L COMPLETE (SKU: 141B81-8)
Position 021 – FILTER SENSOR HOLDER (SKU: 413555-0)
Position 022 – TERMINAL (SKU: 643523-1)
Position 023 – PHOTO INTERRUPTER REPAIR SE (SKU: 1910J8-6)
Position 024 – TERMINAL BASE (SKU: 413478-2)
Position 026 – TAPPING SCREW 4X55 (SKU: 266147-2)
Position 030 – COMPRESSION SPRING 7 (SKU: 232690-3)
Position 031 – BOTTOM PLATE (SKU: 413583-5)
Position 034 – FLAT WASHER 12 (SKU: 253084-9)
Position 035 – COMPRESSION SPRING 18 (SKU: 232685-6)
Position 036 – FRONT ROLLER 18 (SKU: 413552-6)
Position 037 – PIN 4 (SKU: 256989-2)
Position 038 – FRONT CASTER (SKU: 413553-4)
Position 039 – TAPPING SCREW 4X18 (SKU: 251599-0)
Position 040 – STOP RING E-5 (SKU: 961018-5)
Position 041 – POLYACETAL WASHER 22 (SKU: 261167-1)
Position 042 – REAR ROLLER 28 (SKU: 413551-8)
Position 043 – REAR CASTER (SKU: 413550-0)
Position 044 – COLLAR HD. PIN 7 (SKU: 256988-4)
Position 045 – TAPPING SCREW 4X18 (SKU: 251599-0)
Position 046 – TAPPING SCREW 3X14 (SKU: 263046-9)
Position 047 – PHOTO INTERRUPTER REPAIR SE (SKU: 1910J8-6)
Position 048 – RF MODULE REPAIR SET (SKU: 1910J9-4)
Position 049 – RF HOLDER (SKU: 413561-5)
Position 051 – BUMPER ARM (SKU: 413560-7)
Position 052 – COMPRESSION SPRING 8 (SKU: 232700-6)
Position 053 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 054 – LEAF SPRING (SKU: 232687-2)
Position 055 – CONTROLLER HOLDER (SKU: 413418-0)
Position 056 – FERRITE CORE (SKU: 688234-1)
Position 057 – HALL SENSOR BOARD REPAIR SE (SKU: 1910K1-7)
Position 060 – TENSION SPRING 11 (SKU: 232686-4)
Position 061 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 062 – WHEEL R ASSEMBLY REPAIR SET (SKU: 1910L3-0)
Position 064 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 065 – WHEEL L ASSEMBLY REPAIR SET (SKU: 1910L2-2)
Position 066 – TENSION SPRING 11 (SKU: 232686-4)
Position 067 – THERMAL PROTECTOR UNIT (SKU: 632S56-5)
Position 068 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 069 – MAIN BRUSH MOTOR A, REPAIR (SKU: 1910L1-4)
Position 070 – THERMAL PROTECTOR UNIT (SKU: 632S55-7)
Position 071 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 072 – THERMAL PROTECTOR UNIT (SKU: 632S55-7)
Position 073 – SIDE BRUSH R MOTOR REPAIR SE (SKU: 1910L5-6)
Position 074 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 075 – SIDE BRUSH L MOTOR REPAIR SE (SKU: 1910L4-8)
Position 076 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 077 – AIR DUCT COVER (SKU: 413559-2)
Position 079 – EXHAUST FILTER (SKU: 422698-7)
Position 080 – AIR DUCT HOUSING (SKU: 413557-6)
Position 081 – SPONGE SHEET 24-110 (SKU: 422697-9)
Position 082 – PACKING B (SKU: 413558-4)
Position 083 – FAN COVER (SKU: 413535-6)
Position 084 – RUBBER RING (SKU: 422696-1)
Position 085 – FAN MOTOR ASSEMBLY REPAIR S (SKU: 1910L0-6)
Position 086 – USS SUB BOARD REPAIR SET (SKU: 1910K3-3)
Position 087 – USS COVER R (SKU: 413482-1)
Position 088 – USS SUB BOARD REPAIR SET (SKU: 1910K3-3)
Position 090 – BUMPER CAP (SKU: 413572-0)
Position 092 – USS COVER C (SKU: 413480-5)
Position 094 – USS SUB BOARD REPAIR SET (SKU: 1910K3-3)
Position 095 – USS COVER L (SKU: 413481-3)
Position 097 – USS SUB BOARD REPAIR SET (SKU: 1910K3-3)
Position 098 – USS SUB BOARD REPAIR SET (SKU: 1910K3-3)
Position 099 – USS SUB BOARD REPAIR SET (SKU: 1910K3-3)
Position 100 – BUMPER COVER R (SKU: 413579-6)
Position 102 – BUMPER (SKU: 413427-9)
Position 103 – BUMPER COVER C (SKU: 413575-4)
Position 104 – BUMPER COVER L (SKU: 413578-8)
Position 110 – RUBBER CAP (SKU: 422820-6)
Position 111 – TOP COVER ASSEMBLY (SKU: 127838-9)
Position 112 – SWITCH BUTTON (SKU: 413570-4)
Position 113 – TORSION SPRING 14 (SKU: 232689-8)
Position 114 – TOP COVER SHAFT (SKU: 312B42-7)
Position 115 – UI BOARD REPAIR SET (SKU: 1910K4-1)
Position 116 – USB IF BOARD REPAIR SET (SKU: 1910K7-5)
Position 117 – TOP CAP COMPLETE (SKU: 141B97-3)
Position 119 – USB COVER (SKU: 413543-7)
Position 120 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 121 – INNER FRONT COVER (SKU: 413537-2)
Position 122 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 123 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 124 – BUZZER REPAIR SET (SKU: 1910K9-1)
Position 125 – DRC300 NAME PLATE (SKU: 811U01-7)
Position 126 – UPPER HOUSING COMPLETE (SKU: 141B86-8)
Position 128 – PROTECTOR (SKU: 422701-4)
Position 129 – COMPRESSION SPRING 9 (SKU: 231297-2)
Position 130 – FILTER BUTTON (SKU: 413540-3)
Position 131 – COMPRESSION SPRING 6 (SKU: 232688-0)
Position 132 – LIDAR COVER COMPLETE (SKU: 141B90-7)
Position 133 – SPRING HOLDER (SKU: 413541-1)
Position 134 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 136 – LIDAR HOLDER (SKU: 413567-3)
Position 137 – LED LENS R (SKU: 413547-9)
Position 138 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 139 – SEAL RING S (SKU: 422703-0)
Position 140 – SEAL RING S (SKU: 422703-0)
Position 141 – P.H.SCREW M3X16 WITH WG (SKU: 911029-0)
Position 142 – LED REFLECTOR R (SKU: 413548-7)
Position 143 – LED BOARD REPAIR SET (SKU: 1910K5-9)
Position 144 – LED LENS L (SKU: 413544-5)
Position 145 – LED COVER R (SKU: 413549-5)
Position 146 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 147 – LED REFLECTOR L (SKU: 413545-3)
Position 148 – LED COVER L (SKU: 413546-1)
Position 149 – LED BOARD REPAIR SET (SKU: 1910K5-9)
Position 150 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 154 – HANDLE COVER (SKU: 413422-9)
Position 155 – VISION CAMERA LENS (SKU: 413542-9)
Position 156 – SEAL RING T (SKU: 422700-6)
Position 158 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 160 – HANDLE LOWER COVER (SKU: 413565-7)
Position 161 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 162 – CORD SEAL (SKU: 421468-1)
Position 163 – EARTH LINE 70 (SKU: 649152-8)

Exploded View – DRC300
