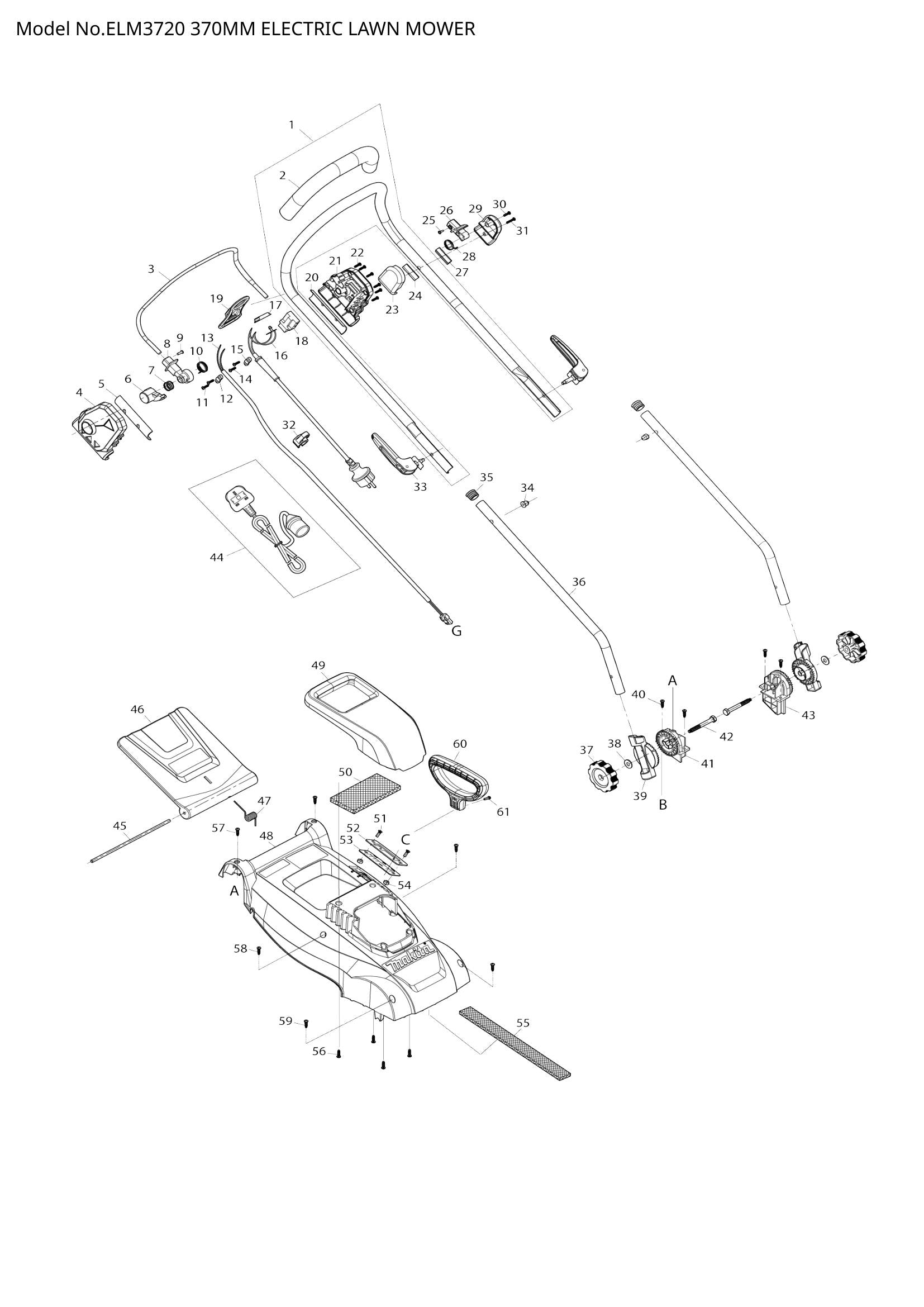

Exploded View – ELM3720

Share this product

Position 001 – UPPER HANDLE BAR ASSY (SKU: YA00000866)
Position 002 – SPONGE GRIP (SKU: YA00001175)
Position 003 – SWITCH LEVER (SKU: YA00000867)
Position 004 – SWITCH BOX RIGHT (SKU: YA00000765)
Position 005 – SWITCH BOX CLAMP SPASER (SKU: YA00000786)
Position 006 – SWITCH LINK BUTTON (SKU: YA00000766)
Position 007 – COMPRESSION SPRING 16.8 (SKU: YA00000767)
Position 008 – SWITCH LEVER END CAP RIGHT (SKU: YA00000768)
Position 009 – SELF DRILLING SCREW 3.5X10 (SKU: 652024721)
Position 010 – SWITCH TORSION SPRING 21 (SKU: YA00000769)
Position 011 – SELF TAPPING SCREW ST4X16 (SKU: YA00000778)
Position 012 – CORD CLAMP (SKU: YA00000780)
Position 013 – POWER SUPPLY CORD ASSY (SKU: YA00000771)
Position 014 – SELF TAPPING SCREW ST4X16 (SKU: YA00000778)
Position 015 – CORD CLAMP (SKU: YA00000780)
Position 016 – POWER SUPPLY CORD ASSY (EUR (SKU: YA00000773)
Position 017 – INDICATOR LENZ (SKU: YA00000781)
Position 018 – SWITCH (SKU: YA00000772)
Position 019 – CABLE HANGER (SKU: 652023811)
Position 020 – SWITCH BOX CLAMP SPASER (SKU: YA00000786)
Position 021 – SWITCH BOX LEFT (SKU: YA00000782)
Position 022 – SELF TAPPING SCREW ST4X16 (SKU: YA00000778)
Position 023 – SPRING BOX RIGHT (SKU: 652023795)
Position 024 – LEVER BOX CLAMP SPASER (SKU: YA00000787)
Position 025 – SELF DRILLING SCREW 3.5X10 (SKU: 652024721)
Position 026 – SWITCH LEVER END LEFT (SKU: 652023794)
Position 027 – TORSION SPRING (SKU: YA00000737)
Position 028 – LEVER BOX CLAMP SPASER (SKU: YA00000787)
Position 029 – SPRING BOX LEFT (SKU: 652023793)
Position 030 – SELF TAPPING SCREW ST4X16 (SKU: YA00000778)
Position 031 – SELF TAPPING SCREW ST4X25 (SKU: YA00000785)
Position 032 – CABLE CLIP (SKU: YA00000799)
Position 033 – TENSI0N LEVER ASSY (SKU: YA00000801)
Position 034 – HEX.FRANGE CAP NUT M6 (SKU: YA00000802)
Position 035 – PIPE END CAP (SKU: YA00001166)
Position 036 – LOWER HANDLE (SKU: YA00001167)
Position 037 – M8 KNOB (SKU: YA00000803)
Position 038 – WASHER (SKU: YA00000420)
Position 039 – ANGLE ADJUSTMENT JOINT UPPE (SKU: YA00000804)
Position 040 – SELF TAPPING SCREW ST5X20 (SKU: YA00000806)
Position 041 – ANGLE ADJUSTMENT JOINT LOW (SKU: YA00000875)
Position 042 – HEX BOLT M8X65 (SKU: YA00000807)
Position 043 – ANGLE ADJUSTMENT JOINT LOW (SKU: YA00000876)
Position 045 – REAR FLAP HINGE ROD (SKU: YA00000894)
Position 046 – REAR FLAP BULE (SKU: YA00000895)
Position 047 – REAR FLAP TORSION SPRING 7.7 (SKU: YA00000831)
Position 048 – HOUSING ASSY BULE (SKU: YA00000901)
Position 049 – TOP COVER (SKU: YA00000897)
Position 055 – SPONGE CUSHION (SKU: YA00000840)
Position 056 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 057 – SELF TAPPING SCREW ST4X16 (SKU: YA00000821)
Position 058 – SELF TAPPING SCREW ST4X16 (SKU: YA00000821)
Position 059 – SELF TAPPING SCREW ST4X16 (SKU: YA00000821)
Position 060 – HIGHT ADJUST GRIP (SKU: YA00000848)
Position 061 – PAN HEAD SCREW M4X10 (SKU: YA00000849)
Position 062 – MOTOR ASSY (230V) (SKU: YA00001176)
Position 063 – SELF TAPPING SCREW ST4X10 (SKU: YA00000813)
Position 064 – CARBON BRUSH 2PICS SET (SKU: YA00000814)
Position 065 – CABLE TIE (SKU: YA00001174)
Position 066 – HEAT SHRINKABLE TUBE (SKU: YA00001173)
Position 067 – LEAD WIRE SET (SKU: YA00001181)
Position 068 – MOTOR FLAME & PULLEY ASSY (SKU: YA00001178)
Position 069 – SELF TAPPING SCREW ST5X20 (SKU: YA00000806)
Position 070 – RIBBED BELT (SKU: YA00001180)
Position 071 – SELF TAPPING SCREW ST5X20 (SKU: YA00000806)
Position 072 – BELT COVER (SKU: YA00001179)
Position 073 – SELF TAPPING SCREW ST5X20 (SKU: YA00000806)
Position 074 – SELF TAPPING SCREW ST4X16 (SKU: YA00000821)
Position 075 – CORD CLAMP (SKU: YA00000780)
Position 076 – SPONGE CUSHION (SKU: YA00000884)
Position 077 – DECK (SKU: YA00000881)
Position 078 – SPONGE CUSHION (SKU: YA00000882)
Position 079 – SPONGE CUSHION (SKU: YA00000883)
Position 080 – SPONGE CUSHION (SKU: YA00000885)
Position 081 – SELF TAPPING SCREW ST5X20 (SKU: YA00000806)
Position 082 – GRASS INTAKE UNDER PLATE (SKU: YA00000887)
Position 083 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 084 – UNDER BRACE RIGHT (SKU: YA00000888)
Position 085 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 086 – AIR INTAKE BOARD RIGHT (SKU: YA00000889)
Position 087 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 088 – UNDER BRACE LEFT (SKU: YA00000904)
Position 089 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 090 – AIR INTAKE BOARD LEFT (SKU: YA00000905)
Position 091 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 092 – SPEASER RING 16 (SKU: YA00000910)
Position 093 – BLADE SUPPORT (SKU: YA00000890)
Position 095 – CLAMP WASHER 8 (SKU: YA00000891)
Position 096 – HEX. BOLT M8X25 (SKU: YA00000827)
Position 097 – WHEEL CAP 6 INCH (SKU: YA00000809)
Position 098 – NYLON INSERT HEX. LOCK NUT (SKU: 652023843)
Position 099 – WASHER (SKU: YA00000420)
Position 100 – WHEEL 7INCH (SKU: YA00000810)
Position 102 – AXLE RETAINER (SKU: YA00000811)
Position 103 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 104 – STEPPED HEX BOLT M6X16 (SKU: YA00000843)
Position 105 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 106 – WASHER 5 (SKU: YA00000845)
Position 107 – TENSION SPRING 11 (SKU: YA00000903)
Position 108 – HEX LOCK NUT M6 (SKU: YA00000627)
Position 109 – CONNECTING ROD (SKU: YA00000902)
Position 110 – TORSION SPRING 8 (SKU: YA00000907)
Position 111 – R PIN 7 (SKU: YA00000851)
Position 112 – HIGHT ADJUST LEVER (SKU: YA00000906)
Position 113 – WHEEL CAP 4.5 INCH (SKU: YA00000853)
Position 114 – NYLON INSERT HEX. LOCK NUT (SKU: 652023843)
Position 115 – WASHER (SKU: YA00000420)
Position 116 – WHEEL 5.5INCH (SKU: YA00000854)
Position 117 – FRONT AXLE (SKU: YA00000908)
Position 118 – AXLE RETAINER WASHER (SKU: YA00000909)
Position 119 – SELF TAPPING SCREW ST5X16 (SKU: YA00000820)
Position 120 – HEX LOCK NUT M6 (SKU: YA00000627)
Position 121 – STEPPED HEX BOLT M6X16 (SKU: YA00000843)
Position 122 – GRASS BOX ASSY(MAKITA) (SKU: YA00000869)
Position 123 – GRASS CATCH SIDE CLOSS SET M (SKU: YA00000870)
Position 124 – GRASS CATCHER INDICATOR BLU (SKU: YA00000791)
Position 125 – GRASS CATCHER UPPER BORAD (SKU: YA00000872)
Position 126 – GRIP (SKU: YA00000795)
Position 127 – SELF TAPPING SCREW ST4X12 (SKU: YA00000873)
Position 128 – GRASS CATCHER FRAME (SKU: YA00000874)
Position 129 – WASHER 4 (SKU: YA00000796)
Position 130 – SELF TAPPING SCREW ST4X12 (SKU: YA00000873)
Position 131 – SPANNER 10-13 (SKU: YA00000798)
