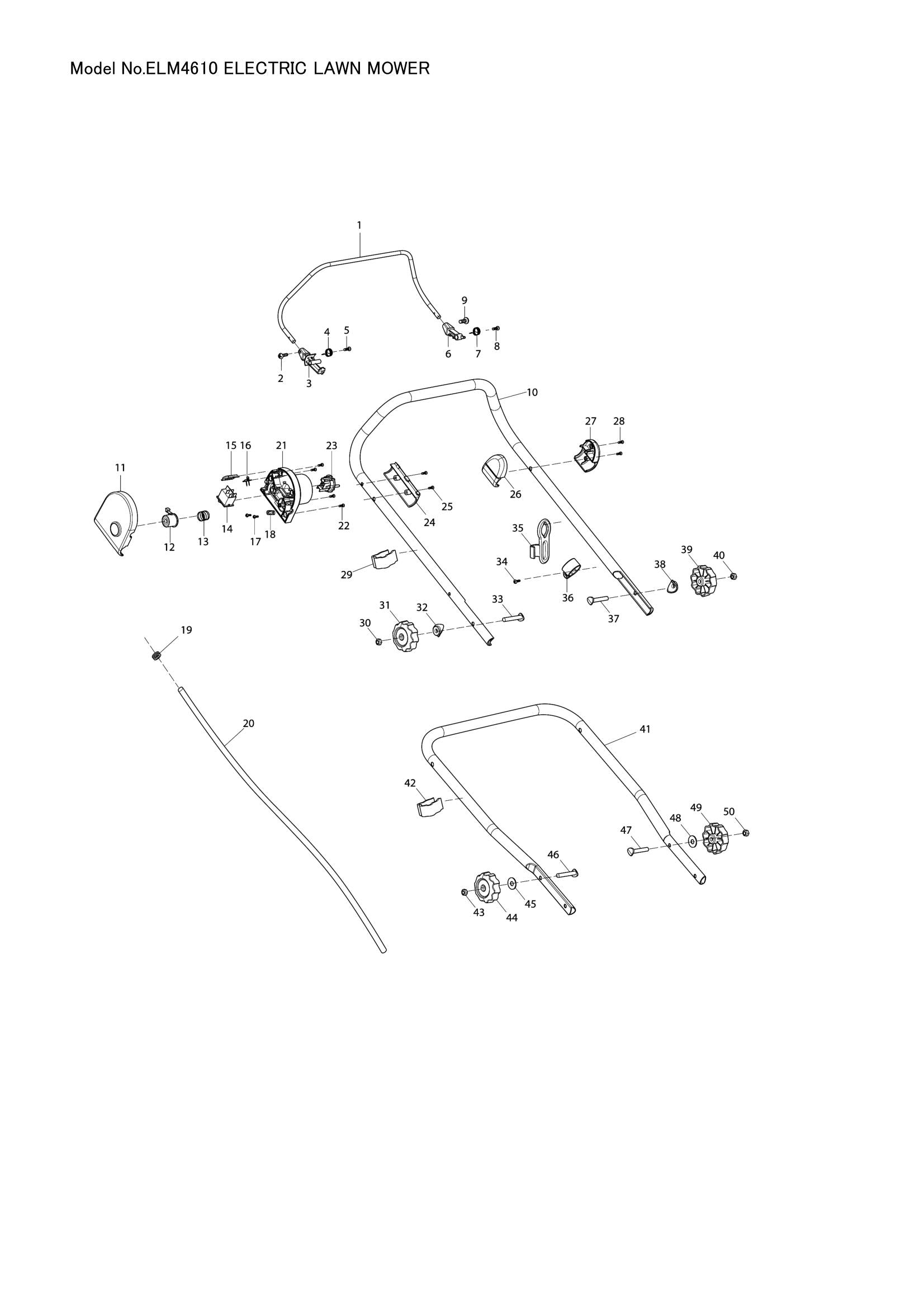

Exploded View – ELM4610

Share this product

Position 001 – SWITCH LEVER (SKU: 671001622)
Position 002 – PAN.HEAD SCREW M4X8 (SKU: 671002033)
Position 004 – TENSION SPRING (SKU: 671011124)
Position 005 – TAPPING SCREW ST3X10 (SKU: DA00000816)
Position 007 – TENSION SPRING (SKU: 671011124)
Position 008 – TAPPING SCREW ST3X10 (SKU: DA00000816)
Position 009 – PAN.HEAD SCREW M4X8 (SKU: 671002033)
Position 010 – UPPER HANDLE BAR (SKU: 671001616)
Position 011 – SWITCH BOX RIGHT (SKU: DA00000985)
Position 012 – SWITCH LINK BUTTON (SKU: 671425002)
Position 013 – COMPRESSION SPRING (SKU: 671011079)
Position 014 – SWITCH (SKU: 671010040)
Position 015 – INDICATOR LENZ (SKU: DA00000842)
Position 018 – CORD CLAMP (SKU: DA00000814)
Position 019 – GROMMET (SKU: DA00000818)
Position 020 – POWER SUPPLY CORD 1.0-2 (SKU: 671001073)
Position 021 – SWITCH BOX LEFT (SKU: DA00000984)
Position 022 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 023 – POWER SUPPLY PLUG UNIT (SKU: DA00001048)
Position 025 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 026 – SWITCH LEVER BOX RIGHT (SKU: 671570020)
Position 027 – SWITCH LEVER BOX LEFT (SKU: 671570010)
Position 028 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 029 – CABLE CLIP (SKU: 671611001)
Position 030 – HEXAGON NUT M8 (SKU: DA00000563)
Position 031 – KNOB (SKU: DA00000564)
Position 032 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 033 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 037 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 038 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 039 – KNOB (SKU: DA00000564)
Position 040 – HEXAGON NUT M8 (SKU: DA00000563)
Position 041 – LOWER HANDLE BAR (SKU: 671001619)
Position 042 – CABLE CLIP (SKU: 671611001)
Position 043 – HEXAGON NUT M8 (SKU: DA00000563)
Position 044 – KNOB (SKU: DA00000564)
Position 045 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 046 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 047 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 048 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 049 – KNOB (SKU: DA00000564)
Position 050 – HEXAGON NUT M8 (SKU: DA00000563)
Position 051 – GRASS CATCHER HANDLE (SKU: 671454001)
Position 053 – TAPPING SCREW ST5X16 (SKU: DA00000326)
Position 054 – REAR FLAP (SKU: 671468001)
Position 055 – GRASS CATCHER FRAME (SKU: 671001443)
Position 056 – WASHER 5 (SKU: DA00000025)
Position 057 – RETAINER PLATE (SKU: DA00000335)
Position 058 – RETAINER PLATE (SKU: DA00000335)
Position 059 – WASHER 5 (SKU: DA00000025)
Position 060 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 063 – MULCHING PLUG BOX (SKU: 671660001)
Position 064 – LOCKING BUTTON (SKU: 671316004)
Position 065 – COMPRESSION SPRING (SKU: 671011005)
Position 067 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 068 – SINGLE END BOX WRENCH 22 (SKU: 671002009)
Position 069 – TAPPING SCREW CT 5X12 (SKU: 671003079)
Position 070 – GROMMET (SKU: DA00000810)
Position 071 – MOTOR COVER (SKU: 671200103)
Position 072 – TAPPING SCREW ST3.9X16 (SKU: 671010090)
Position 073 – MOTOR HOUSING UPPER SIDE (SKU: 671610010)
Position 074 – MOTOR COOLING FAN (SKU: DA00001026)
Position 075 – MOTOR ASSY 230V 50HZ (SKU: DA00000850)
Position 076 – CAPACITOR 25 MICRO F (SKU: DA00001199)
Position 077 – HEXAGON NUT M8 (SKU: DA00000563)
Position 081 – GROMMET (SKU: 671800104)
Position 083 – CORD CLAMP (SKU: 671010230)
Position 084 – CORD CLAMP BRACKET (SKU: 671260001)
Position 085 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 087 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 088 – STOP RING E-6 (SKU: 671009017)
Position 089 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 090 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 091 – STOP RING E-6 (SKU: 671009017)
Position 092 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 093 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 094 – LEFT HANDLE BRACKET BLUE (SKU: 671001179)
Position 095 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 096 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 098 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 099 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 100 – DECK BLUE (SKU: 671001527)
Position 102 – LINK ROD (SKU: 671002671)
Position 105 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 106 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 107 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 108 – REAR WHEEL ASSY (SKU: DA00000539)
Position 109 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 110 – PAN.HED SCREW M5X14 (SKU: DA00000912)
Position 113 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 114 – REAR AXLE (SKU: 671001438)
Position 115 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 116 – BEARING CASE RETAINER (SKU: DA00000542)
Position 117 – REAR AXLE MOUNT (SKU: DA00001025)
Position 118 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 119 – BEARING CASE RETAINER (SKU: DA00000542)
Position 120 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 121 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 122 – REAR WHEEL ASSY (SKU: DA00000539)
Position 123 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 124 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 125 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 126 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 127 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 128 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 129 – FRONT WHEEL ASSY (SKU: 671002012)
Position 130 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 132 – FRONT AXLE RETAINER (SKU: 671445001)
Position 133 – FRONT AXLE (SKU: 671001786)
Position 135 – FRONT AXLE RETAINER (SKU: 671445001)
Position 136 – FRONT AXLE MOUNT (SKU: 671418001)
Position 137 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 138 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 139 – FRONT WHEEL ASSY (SKU: 671002012)
Position 140 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 141 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 142 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 143 – FRONT AXLE COVER (SKU: 671659001)
Position 144 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
Position 145 – FLAT WASHER 8 (SKU: 671007007)
Position 146 – SPRING WASHER 8 (SKU: DA00000832)
Position 147 – HEX.BOLT M8X30 (SKU: 671006017)
Position 149 – BELT PROTECTING COVER (SKU: 671658001)
Position 152 – INNER FLANGE WITH FAN (SKU: 671005057)
Position 154 – HEX.BOLT FOR BLADE (SKU: DA00000827)
