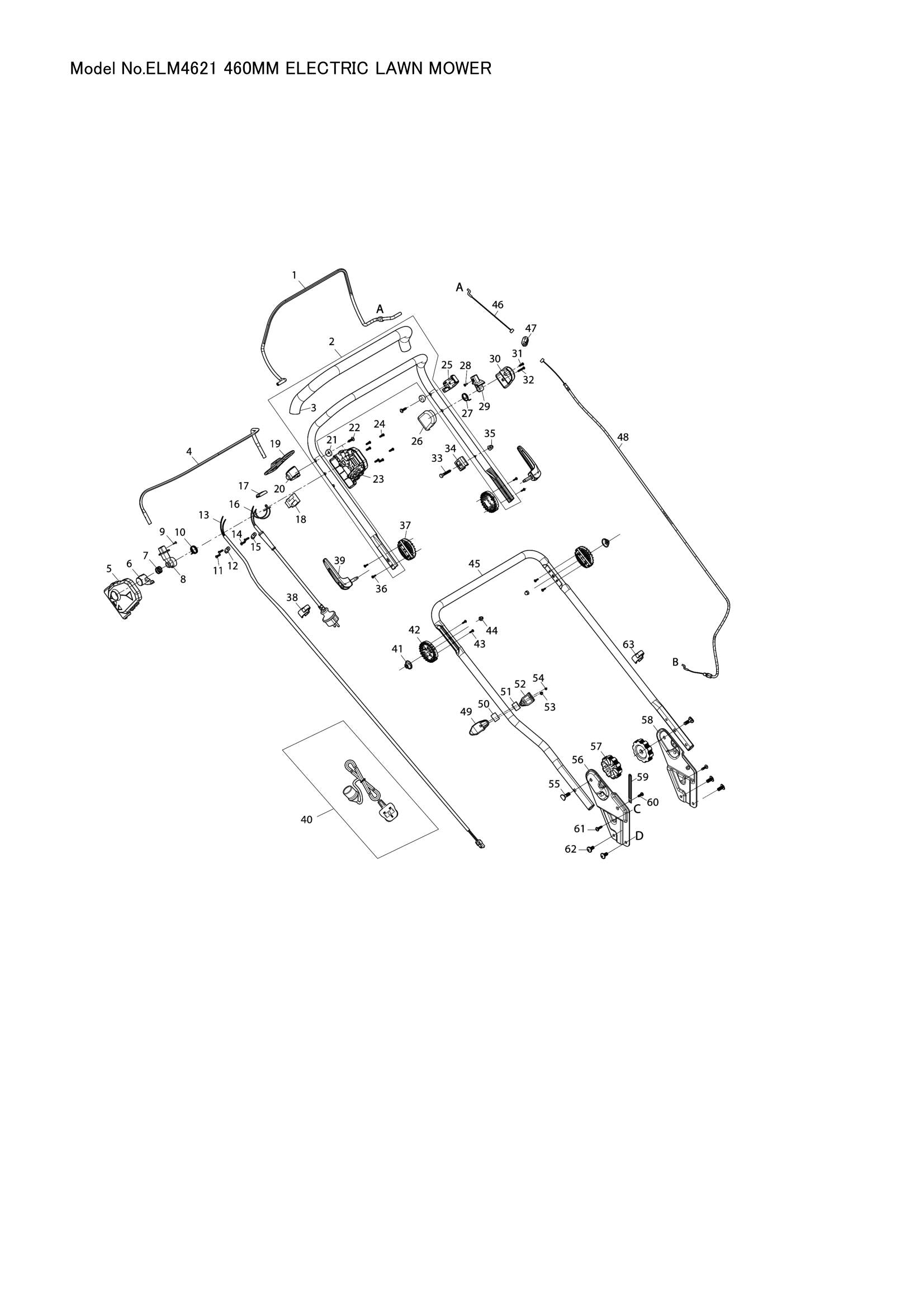

Name: Exploded View – ELM4621
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – DRIVE CONTOROL LEVER (SKU: YA00001108)
Position 002 – UPPER HANDLE BAR ASSY (SKU: YA00001159)
Position 003 – SPONGE GRIP (SKU: YA00001185)
Position 004 – SWITCH LEVER (SKU: YA00001160)
Position 005 – SWITCH BOX RIGHT (SKU: YA00000765)
Position 006 – SWITCH LINK BUTTON (SKU: YA00000766)
Position 007 – COMPRESSION SPRING 16.8 (SKU: YA00000767)
Position 009 – SELF DRILLING SCREW 3.5X10 (SKU: 652024721)
Position 010 – SWITCH TORSION SPRING 21 (SKU: YA00000769)
Position 012 – CORD CLAMP (SKU: YA00000780)
Position 013 – POWER SUPPLY CORD ASSY (SKU: YA00001038)
Position 015 – CORD CLAMP (SKU: YA00000780)
Position 017 – INDICATOR LENZ (SKU: YA00000781)
Position 018 – SWITCH (SKU: YA00000772)
Position 019 – CABLE HANGER (SKU: 652023811)
Position 021 – PLASTIC SADDLE WASHER 5 (SKU: YA00001106)
Position 023 – SWITCH BOX LEFT (SKU: YA00000782)
Position 026 – SPRING BOX RIGHT (SKU: 652023795)
Position 027 – TORSION SPRING (SKU: YA00000737)
Position 028 – SELF DRILLING SCREW 3.5X10 (SKU: 652024721)
Position 029 – SWITCH LEVER END LEFT (SKU: 652023794)
Position 030 – SPRING BOX LEFT (SKU: 652023793)
Position 033 – HEX. BOLT M6X35 (SKU: YA00001109)
Position 034 – OUTER WIRE STOPPER (SKU: YA00001110)
Position 035 – HEX.FRANGE CAP NUT M6 (SKU: YA00000802)
Position 038 – CABLE CLIP (SKU: YA00000921)
Position 039 – TENSI0N LEVER ASSY (SKU: YA00000975)
Position 041 – CONICAL SPRING (SKU: YA00000976)
Position 044 – HEX.FRANGE CAP NUT M6 (SKU: YA00000802)
Position 045 – LOWER HANDLE BAR (SKU: YA00001046)
Position 047 – WIRE JOINT (SKU: YA00001142)
Position 048 – DRIVE CONTOROL WIRE LONG (SKU: YA00001161)
Position 049 – CABLE GUIDE RING (SKU: YA00000970)
Position 050 – RUBBER SHEET (SKU: YA00000971)
Position 051 – RUBBER SHEET (SKU: YA00000971)
Position 052 – CABLE GUIDE CLAMP (SKU: YA00000972)
Position 056 – HANDLE BRACKET RIGHT (SKU: YA00001060)
Position 057 – M8 KNOB (SKU: YA00000803)
Position 058 – HANDLE BRACKET LEFT (SKU: YA00001063)
Position 059 – CABLE CLAMP (SKU: YA00000997)
Position 060 – PAN HEAD SCREW M6X8 (SKU: YA00000998)
Position 063 – CABLE CLIP (SKU: YA00000921)
Position 064 – PAN HEAD SCREW M5X16 (SKU: 652023758)
Position 065 – MOTOR HOOD ASSY BLUE (SKU: YA00001125)
Position 066 – MOTOR HOOD UPPER BLUE (SKU: YA00001070)
Position 067 – MOTOR HOOD LOWER (SKU: YA00001126)
Position 069 – PAN HEAD SCREW M5X16 (SKU: 652023758)
Position 071 – MOTER HOUSING UPPER (SKU: YA00001140)
Position 072 – RETAINING RING S-17 (SKU: YA00001096)
Position 073 – FAN (SKU: YA00001097)
Position 074 – MOTOR ASSY 230V 50Hz (SKU: YA00001074)
Position 075 – CAPACTOR 25MICRO F 500V (SKU: YA00001099)
Position 077 – CABLE PRESSBOARD (SKU: 652023752)
Position 078 – MOTOR HOUSING LOWER (SKU: YA00001075)
Position 081 – REAR FLAP BULE (SKU: YA00001058)
Position 082 – REAR FLAP HINGE ROD (SKU: YA00001122)
Position 083 – STOP RING E-5 (SKU: YA00000990)
Position 085 – PAN HEAD SCREW M5X16 (SKU: 652023758)
Position 086 – GEAR BOX HOOD (SKU: YA00001134)
Position 087 – REAR FLAP HINGE BASE BLUE (SKU: YA00001061)
Position 089 – GROMET (SKU: YA00001135)
Position 093 – PAN HEAD SCREW M5X16 (SKU: 652023758)
Position 094 – DECK (SKU: YA00001123)
Position 095 – SIDE DISCHARGE OUTLET (SKU: YA00001090)
Position 096 – SIDE DISCHARGE FLAP ASSY (SKU: YA00001092)
Position 098 – HEX. BOLT M8X35 (SKU: YA00001076)
Position 099 – RETAINING RING S-17 (SKU: YA00001096)
Position 100 – FLAT KEY (SKU: YA00001141)
Position 101 – V BELT XPZ 772 (SKU: YA00001138)
Position 103 – GEAR BOX STABILIZER (SKU: YA00001137)
Position 104 – HEX. FLANGE BOLT M6X16 (SKU: YA00001136)
Position 105 – V PULLEY (SKU: YA00001139)
Position 106 – FAN LOWER SIDE (SKU: YA00001094)
Position 108 – UNDER COVER (SKU: YA00001095)
Position 110 – BLADE SUPPORT (SKU: YA00001066)
Position 112 – BLADE BOLT M10X30 (SKU: YA00001067)
Position 116 – FRONT HOOD BLUE (SKU: YA00001079)
Position 117 – FRONT AXLE COVER (SKU: YA00001080)
Position 119 – WHEEL CAP 9.5 INCH (SKU: YA00001049)
Position 121 – WASHER (SKU: YA00000420)
Position 125 – WHEEL COVER ISIDE (SKU: YA00001132)
Position 128 – HEIGHT ADJUST GRIP (SKU: YA00000989)
Position 129 – PAN HEAD SCREW M4X12 (SKU: YA00000988)
Position 130 – HIGHT ADJUST LEVER (SKU: YA00001053)
Position 133 – HEIGHT ADJUST SPRING (SKU: YA00000986)
Position 134 – HEX. FLANGE BOLT M5X16 (SKU: YA00000407)
Position 135 – HEX. FLANGE BOLT M5X16 (SKU: YA00000407)
Position 136 – RETAINING RING S-12 (SKU: YA00001117)
Position 137 – SPUR GEAR 13 RIGHT (SKU: YA00001130)
Position 138 – COLUMN PIN 5X25 (SKU: YA00001131)
Position 139 – RETAINING RING S-12 (SKU: YA00001117)
Position 141 – RETAINING RING S-34 (SKU: YA00001119)
Position 142 – PAN HEAD SCREW M5X16 (SKU: 652023758)
Position 143 – REAR AXLE MOUNT (SKU: YA00001120)
Position 144 – SPUR GEAR 13 LEFT (SKU: YA00001133)
Position 145 – R PIN 7 (SKU: YA00000851)
Position 146 – PIN 7 (SKU: YA00001018)
Position 147 – CONNECTING ROD (SKU: YA00001127)
Position 148 – WHEEL CAP 7 INCH (SKU: YA00001081)
Position 150 – WASHER (SKU: YA00000420)
Position 151 – NLYON SLEEVE (SKU: YA00001100)
Position 152 – WHEEL 8 INCH (SKU: YA00001082)
Position 153 – NLYON SLEEVE (SKU: YA00001100)
Position 154 – FRONT AXLE (SKU: YA00001085)
Position 156 – FRONT AXLE MOUNT UPPER (SKU: YA00001083)
Position 157 – FRONT AXLE MOUNT LOWER (SKU: YA00001025)
Position 158 – R PIN 7 (SKU: YA00000851)
Position 159 – PIN 7 (SKU: YA00001018)
Position 160 – GRASS BOX ASSY(MAKITA) (SKU: YA00001039)
Position 164 – GRIP (SKU: YA00000795)
Position 166 – GRASS CATCHER FRAME (SKU: YA00001111)
Position 167 – WASHER 4 (SKU: YA00000796)
Position 169 – MULTING PLUG ASSY (SKU: YA00001047)
Position 170 – MULTING PLUG BOX (SKU: YA00001048)
Position 171 – LATCH HANDLE (SKU: YA00000980)
Position 172 – COMPRESSION SPRING (SKU: YA00001112)
Position 173 – SPRING RETAINER (SKU: YA00000982)
Position 175 – SPANNER 10-27 (SKU: YA00001045)

Exploded View – ELM4621
