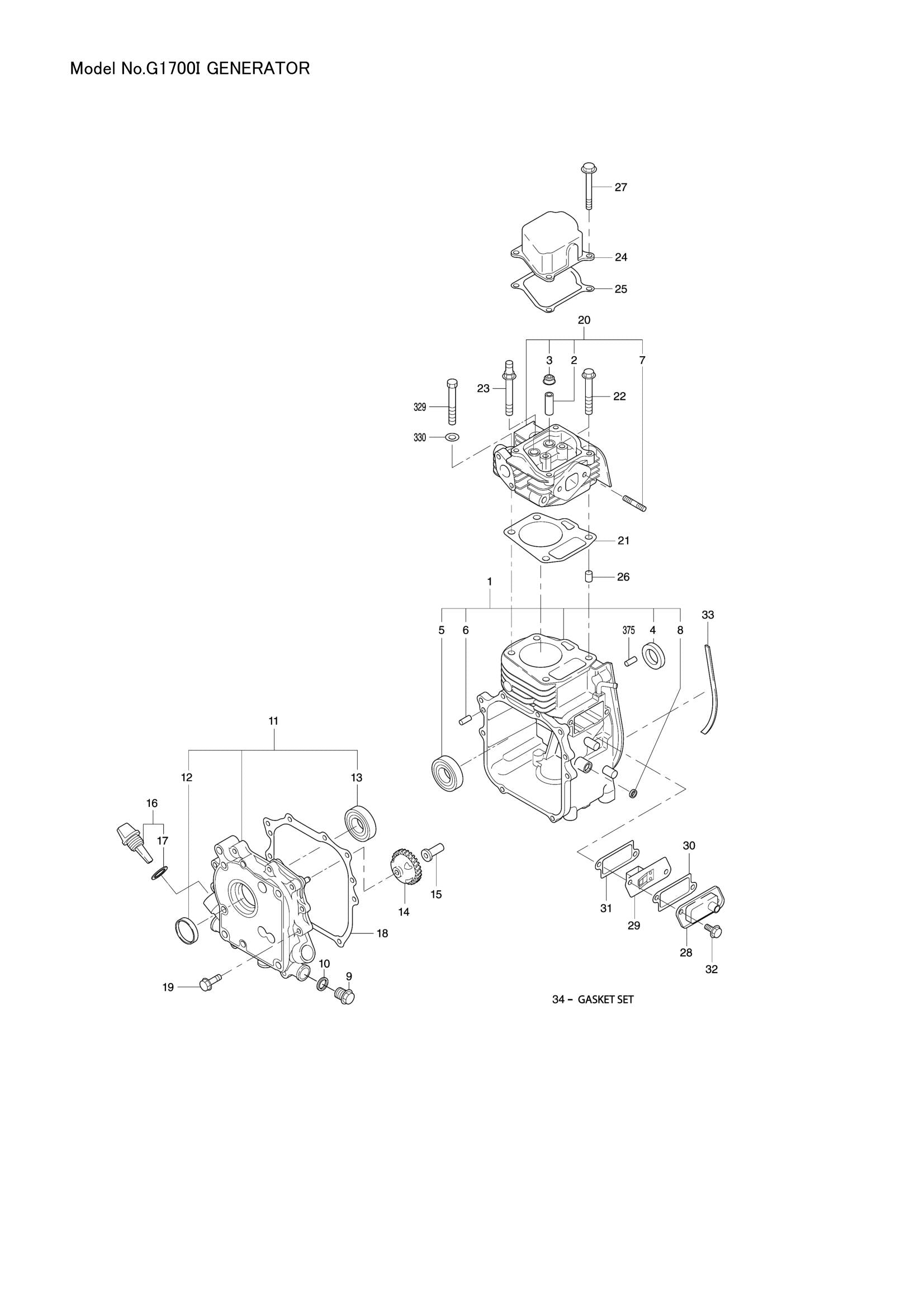

Name: Exploded View – G1700I
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 002 – VALVE GUIDE (OVERSIZE) (SKU: 2371420203)
Position 003 – STEM SEAL (SKU: 2771601001)
Position 004 – OIL SEAL 20X32X6 (SKU: 0440200070)
Position 005 – BALL BEARING (SKU: 0600200140)
Position 006 – DOWEL PIN (SKU: 0310060020)
Position 007 – STUD (SKU: 0105060420)
Position 008 – OIL SEAL 6DX10DX2.5B (SKU: 0440060020)
Position 009 – PLUG (SKU: 0401140030)
Position 010 – GASKET (SKU: 0211140020)
Position 012 – PLUG(RUBBER) (SKU: 2301710203)
Position 013 – BALL BEARING (SKU: 0600200140)
Position 014 – GOVERNOR GEAR COMPLETE (SKU: 2844500301)
Position 015 – GOVERNOR SLEEVE (SKU: 2054190103)
Position 018 – GASKET(BEARING COVER) (SKU: 2841600303)
Position 019 – FLANGE BOLT (SKU: 0110060101)
Position 023 – FLANGE BOLT (SKU: 0110080301)
Position 026 – PIPE KNOCK 10.3DX8.5DX14L (SKU: 2771501103)
Position 027 – FLANGE BOLT (SKU: 0110060420)
Position 029 – BREATHER PLATE COMPLETE (SKU: 2841440101)
Position 031 – GASKET (SKU: 2301600703)
Position 033 – SPONGE CRANK (SKU: 33K5831703)
Position 037 – SPACER T=0.8 (SKU: 0230200100)
Position 045 – CLIP (SKU: 0565110010)
Position 046 – CAMSHAFT COMPLETE (SKU: 2843170111)
Position 047 – PIN 3.8DX7.5DX14L (SKU: 2273860123)
Position 048 – RELEASE LEVER (SKU: 2843640103)
Position 049 – SPRING PIN (SKU: 0051904100)
Position 051 – RETURN SPRING (SKU: 2743870123)
Position 052 – TAPPET (SKU: 2743330103)
Position 053 – VALVE SPRING (SKU: 2743360103)
Position 054 – SPRING RETAINER (SKU: 2743370203)
Position 057 – COLLET VALVE (SKU: 13210KA031)
Position 060 – BOLT (PIVOT) (SKU: 2693580103)
Position 061 – 601106X0.75X5.1H (SKU: 0170060090)
Position 062 – GUIDE PLATE (SKU: 2743650103)
Position 064 – SPARK ARRESTER COMPLETE (SKU: 2693760101)
Position 065 – TAPPING SCREW M4X6L (SKU: 0150040060)
Position 068 – FLANGE BOLT M8X1.25X80L (SKU: 0110080110)
Position 071 – AIR CLEANER ASS'Y (SKU: 2843263000)
Position 072 – GASKET (SKU: 2273600413)
Position 073 – ELEMENT (SKU: 2843263108)
Position 074 – INSULATOR (SKU: 2843290303)
Position 077 – FLANGE NUT M6 (SKU: 0023806000)
Position 079 – DUCT (SKU: 2843210103)
Position 080 – RUBBER PIPE (8DX11D) (SKU: 0851080000)
Position 083 – GOVERNOR LEVER (SKU: 2844230503)
Position 084 – GOVERNOR SHAFT (SKU: 2304220103)
Position 087 – CLIP (SKU: 0031305000)
Position 088 – BOLT & WASHER ASS'Y (SKU: 0011406250)
Position 089 – NUT M6X1.0X4.9H (SKU: 0186060020)
Position 091 – CONTROL BRACKET (SKU: 2844600303)
Position 095 – BLOWER HOUSING (SKU: 2845120103)
Position 096 – GROMMET (SKU: 2845550103)
Position 097 – FLANGE BOLT (SKU: 0110080160)
Position 098 – FLANGE BOLT (SKU: 0110080302)
Position 099 – CYLINDER BAFFLE COMPLETE (SKU: 2845360101)
Position 103 – CLAMP (SKU: 0566000260)
Position 105 – SPIRAL SPRING (SKU: 2845022408)
Position 106 – REEL (SKU: 2845022208)
Position 107 – ROPE (SKU: 2845023308)
Position 109 – RACHET (SKU: 2845022308)
Position 110 – FRICTION SPRING (SKU: 2845022608)
Position 111 – RETURN SPRING (SKU: 2845022708)
Position 113 – RETAINING RING C TYP (SKU: 2845023108)
Position 114 – ROPE GUIDE (SKU: 2845610103)
Position 115 – GUIDE COMPLETE (SKU: 33K5300103)
Position 116 – RETAINING RING E TYP (SKU: 2845022908)
Position 117 – RACHET GUIDE (SKU: 2845022808)
Position 118 – FLANGE BOLT M6X18L (SKU: 0110060140)
Position 119 – SEAL PLATE 45X120X2 (SKU: 34K4010203)
Position 122 – SEAL RUBBER (SKU: 2845360503)
Position 124 – THROTTLE VALVE (SKU: 2846253508)
Position 125 – SCREW (SKU: 2846245508)
Position 127 – SCREW (SKU: 2846245508)
Position 128 – SLOW JET (SKU: 2846242008)
Position 129 – CHOKE LEVER (SKU: 2846252008)
Position 130 – THROTTLE SHAFT ASSY (SKU: 2846253108)
Position 131 – BOLT (SKU: 2846235508)
Position 132 – VALVE ASSEMBLY,NEEDLE (SKU: 2796250008)
Position 133 – PIN (SKU: 2846251508)
Position 134 – FLOAT BODY (SKU: 2846255008)
Position 135 – GASKET (SKU: 2516235008)
Position 136 – CHAMBER PACKING (SKU: 2846254008)
Position 137 – FLOAT ASSY (SKU: 2846250508)
Position 138 – MAIN JET (SKU: 2846240008)
Position 139 – SCREW (SKU: 2846245608)
Position 141 – VINYL PIPE (SKU: 2846256508)
Position 142 – SCREW(DRAIN) (SKU: 2516266108)
Position 143 – BUSH (SKU: 2516255908)
Position 144 – AJUST SCREW (SKU: 2846235308)
Position 145 – SPRING (SKU: 2796244508)
Position 146 – COLLAR (SKU: 2846256108)
Position 147 – SPRING(THROTTLE) (SKU: 2846231508)
Position 148 – O RING (SKU: 2846245108)
Position 149 – O RING (SKU: 2846245008)
Position 151 – BRACKET(WIRE) (SKU: 2846257008)
Position 153 – MOTOR (SKU: 2846258008)
Position 154 – BRACKET(MOTOR) (SKU: 2846257608)
Position 155 – SCREW (SKU: 2846245808)
Position 156 – SCREW (SKU: 2846245708)
Position 157 – JOINT LEVER (SKU: 2846255508)
Position 158 – SPRING (SKU: 2846244608)
Position 159 – BRACKET (SKU: 2846257508)
Position 160 – SCREW (SKU: 2846245708)
Position 162 – IGNITION COIL COMPLETE (SKU: 2847953001)
Position 163 – PULSER COIL COMPLETE (SKU: 2847954001)
Position 167 – FLANGE NUT (SKU: 0023808000)
Position 169 – SPARK PLUG NGK BMR4A (SKU: 0650140380)
Position 171 – GROMMET, PLUG (SKU: 2847550103)
Position 172 – PULSER COIL HARNESS (SKU: 2847958103)
Position 174 – OIL SENSOR (SKU: 2307630111)
Position 176 – SENSOR RETAINER (SKU: 2307580103)
Position 177 – SCREW & WASHER ASS'Y (SKU: 0043506100)
Position 180 – STATOR COMPLETE (SKU: 34K2105101)
Position 182 – ROTOR COMPLETE (SKU: 34K2006101)
Position 184 – FLANGE BOLT (SKU: 0010406120)
Position 187 – REAR COVER (SKU: 34K2090108)
Position 188 – FLANGE BOLT (SKU: 0110060101)
Position 194 – RECTIFIER (SKU: 34K2090308)
Position 195 – SCREW (SKU: 34K2090408)
Position 196 – EARTH WIRE COMPLETE (SKU: 34K4190203)
Position 197 – CLAMP (SKU: 34K2090608)
Position 198 – SCREW (SKU: 34K2090508)
Position 199 – BAND (SKU: 34K2090708)
Position 200 – FRONT FRAME(R) (SKU: 33K3710103)
Position 201 – FRONT FRAME(L) (SKU: 33K3720103)
Position 202 – REAR FRAME(R) (SKU: 33K3730103)
Position 203 – REAR FRAME(L) (SKU: 33K3740103)
Position 206 – SPONGE BASE (SKU: 33K5831003)
Position 207 – SPONGE BASE 2 30X110X20 (SKU: 33K5831103)
Position 208 – SPONGE BASE 3 40X240X1.5 (SKU: 33K5832003)
Position 209 – BOLT & WASHER ASS'Y (SKU: 0011408200)
Position 210 – MOUNT BASE COMPLETE (SKU: 33K3010101)
Position 211 – FLANGE NUT M6 (SKU: 0023806000)
Position 213 – NUT (SKU: 33K3800103)
Position 214 – GROMMET(REAR FRAME) (SKU: 33K3800503)
Position 215 – BACK PANEL COMPLETE (SKU: 33K3760103)
Position 216 – MOUNT COMPLETE (SKU: 33K3610101)
Position 218 – SCREW (SKU: 0140050100)
Position 221 – FILM (SKU: 33K4890203)
Position 223 – SWITCH COVER (SKU: 34K4181303)
Position 225 – SCREW & WASHER ASS'Y (SKU: 0043603120)
Position 226 – NUT(M5) (SKU: 0021703000)
Position 229 – SCREW AND WASHER ASS'Y (SKU: 0131040060)
Position 231 – TAPPING SCREW (SKU: 0150030020)
Position 233 – CONTROL DIAL (SKU: 33K4201003)
Position 234 – BALL(DIAL) (SKU: 33K4207103)
Position 236 – CHOKE REEL (SKU: 33K4202003)
Position 238 – WIRE PLATE (SKU: 33K4204003)
Position 243 – CHOKE BRACKET (SKU: 33K4208003)
Position 245 – CIRCUIT BREAKER (DC) 10A (SKU: 3524562008)
Position 247 – SCREW AND WASHER ASS'Y (SKU: 0131030010)
Position 248 – BREAKER CAP (SKU: 33K4181703)
Position 250 – TERMINAL BOLT (RED) (SKU: 3634570108)
Position 251 – TERMINAL BOLT (BLACK) (SKU: 3634570008)
Position 253 – CONCENT HARNESS (SKU: 34K4181503)
Position 256 – WIRE BAND (SKU: 0563000020)
Position 257 – SEAL SPONGE F 4.5X650X2.5 (SKU: 33K5841103)
Position 260 – FILM INVERTER (SKU: 34K4188303)
Position 261 – LABEL(ELECTRIC SHOKE) (SKU: 0732004490)
Position 263 – SCREW AND WASHER ASS'Y (SKU: 0131060030)
Position 271 – SCREW AND WASHER ASS'Y (SKU: 0043606250)
Position 273 – BOLT(PANEL) (SKU: 33K5050103)
Position 274 – BOLT(PANEL) (SKU: 33K5050103)
Position 275 – SPONGE CASE L (SKU: 33K5830103)
Position 276 – SPONGE CASE L 5 (SKU: 33K5830703)
Position 280 – SPONGE CASE L 7 35X55X20 (SKU: 33K5830903)
Position 283 – SPONGE CASE L 4 (SKU: 33K5830603)
Position 284 – SPONGE PANEL L (SKU: 33K5830203)
Position 285 – SEAL SPONGE L 2.5X5X920 (SKU: 33K5830303)
Position 286 – SPONGE CASE R (SKU: 33K5840103)
Position 287 – SPONGE CASE R 4 (SKU: 33K5840603)
Position 291 – SPONGE CASE R 2 (SKU: 33K5840403)
Position 293 – SPONGE PANEL R (SKU: 33K5840203)
Position 294 – SEAL SPONGE R 2.5X5X860 (SKU: 33K5840303)
Position 295 – SEAL SPONGE R 2 (SKU: 33K5841003)
Position 298 – TAPPING SCREW 4X12 (SKU: 0150040090)
Position 299 – SCREW GROMMET (SKU: 33K5300203)
Position 304 – OIL CAUTION LABEL (SKU: 0732004520)
Position 305 – LABEL(SYMBOL-TANK) (SKU: 0732004510)
Position 306 – LABEL(HOT&GAS) (SKU: 0732004500)
Position 313 – SCREW ASS'Y M5X12 (SKU: 0043605120)
Position 316 – HOSE CLAMP 13D (SKU: 0561130010)
Position 317 – TANK MOUNT (SKU: 33K6410103)
Position 320 – FUEL COCK BRACKET (SKU: 33K6300203)
Position 324 – FUEL PUMP COMPLETE (SKU: 33K6220100)
Position 325 – RUBBER PIPE (6DX12D) (SKU: 0851060000)
Position 326 – RUBBER PIPE (6DX12D) (SKU: 0851060000)
Position 328 – TAPPING SCREW (SKU: 0150060020)
Position 329 – BOLT (SKU: 0100080420)
Position 330 – WASHER (SKU: 0200080210)
Position 332 – GASKET(CHOKE) (SKU: 2774670103)
Position 334 – CYLINDER BAFFLE (E/G) (SKU: 2845360303)
Position 335 – SEAL SPONGE BAFFLE 2 (SKU: 2845360903)
Position 336 – SEAL SPONGE BAFFLE 3 (SKU: 2845361003)
Position 337 – SPONGE BAFFLE 4 (SKU: 33K5832303)
Position 338 – SEAL SPONGE BAFFLE (SKU: 2845360803)
Position 342 – Y CONNECTOR (SKU: 2846710103)
Position 343 – PURSE LOCK ASS'Y (SKU: 0569000020)
Position 345 – LABEL(FRONT) 2 (SKU: 34K9510203)
Position 346 – REAR COVER SPONGE 3 (SKU: 33K5832203)
Position 347 – REAR COVER SPONGE 4 (SKU: 33K5832403)
Position 348 – SCREW, WASHER AY (SKU: 0131040091)
Position 349 – FLANGE NUT (SKU: 0180040000)
Position 350 – LABEL(91DB) (SKU: 0732005370)
Position 351 – HOSE CLAMP (SKU: 0561100030)
Position 392 – NOISE FILTER (SKU: 34K2091008)

Exploded View – G1700I

Description

Exploded View – G1700I
