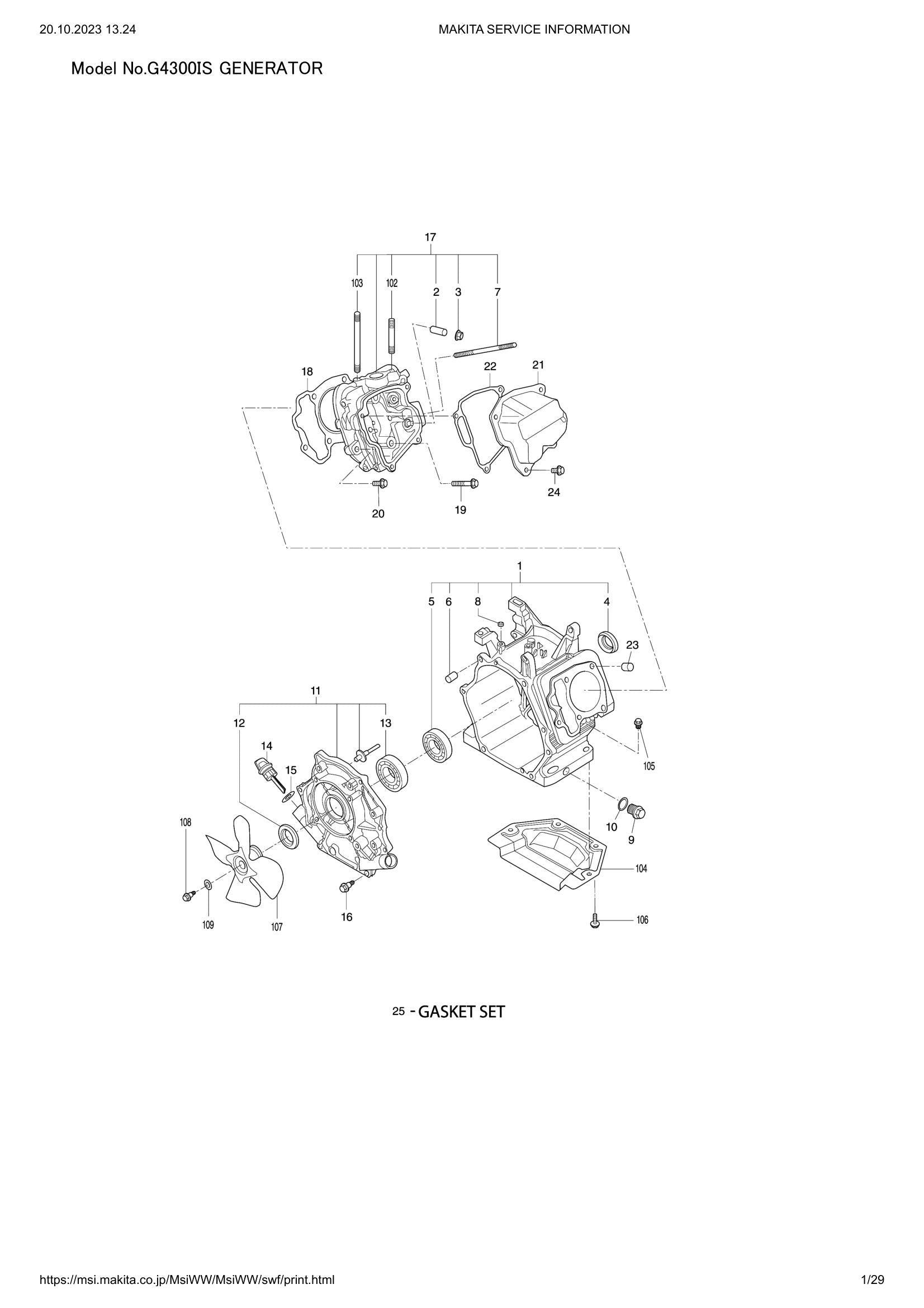

Name: Exploded View – G4300IS
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 002 – VALVE GUIDE (OVERSIZE) (SKU: 2371420203)
Position 003 – STEM SEAL (SKU: 2771601001)
Position 004 – OIL SEAL 30DX45DX7B (SKU: 0440300160)
Position 006 – PIPE KNOCK 10.3DX8.5DX14L (SKU: 2771501103)
Position 007 – STUD M6X1.0X107L (SKU: 0105060410)
Position 008 – OIL SEAL 6DX10DX2.5B (SKU: 0440060020)
Position 009 – PLUG (SKU: 0401140030)
Position 010 – GASKET (SKU: 0211140020)
Position 012 – OIL SEAL 30DX45DX7B (SKU: 0440300160)
Position 016 – FLANGE BOLT (SKU: 0010408350)
Position 017 – CYLINDER HEAD COMPLETE (SKU: 2791300501)
Position 020 – FLANGE BOLT M8X33L (SKU: 0110080310)
Position 023 – PIPE KNOCK 10.3DX8.5DX14L (SKU: 2771501103)
Position 028 – WOODRUFF KEY (SKU: 0323030010)
Position 031 – PISTON PIN 18DX13DX53L (SKU: 2792330103)
Position 034 – CLIP (SKU: 0565180010)
Position 038 – PIN(SPRING) 4DX8DX9L (SKU: 2773860103)
Position 040 – CLIP 13.8DX20.3DX0.4T (SKU: 2773650103)
Position 042 – VALVE SPING (SKU: 2793360103)
Position 043 – SPRING RETAINER (SKU: 2693370103)
Position 046 – COLLET VALVE (SKU: 13210KA031)
Position 049 – SPRING(TENSIONER) (SKU: 2773710103)
Position 050 – PIN(TENSIONER) 6DX13DX34L (SKU: 2773690203)
Position 053 – CLIP (SKU: 0031305000)
Position 054 – LOCKER ARM(INTAKE) ASS'Y (SKU: 2773620100)
Position 056 – ADJUST SCREW M5X23 (SKU: 0149050020)
Position 057 – ADJUST SCREW M5X23 (SKU: 0149050020)
Position 058 – NUT M5 (SKU: 0170050030)
Position 059 – NUT M5 (SKU: 0170050030)
Position 062 – CLIP (SKU: 0031305000)
Position 064 – IGNITION COIL COMPLETE (SKU: 2797943101)
Position 065 – RING GEAR (SKU: 2677100203)
Position 066 – BOLT & WASHER ASS'Y (SKU: 0011406250)
Position 067 – WIRE 5 (SKU: 27973105H1)
Position 068 – SPARK PLUG (BR6HS) (SKU: 0650140150)
Position 071 – BOLT & WASHER ASS'Y (SKU: 0011406160)
Position 073 – WIRE CLAMP (SKU: 2797550103)
Position 074 – TAPPING BOLT (SKU: 0152060050)
Position 076 – YOKE COMPLETE (SKU: 2097055008)
Position 077 – BRUSH (SKU: 2097055108)
Position 078 – BRUSH SPRING (SKU: 2097054508)
Position 079 – BRUSH HOLDER (SKU: 2097053008)
Position 080 – INSULATOR (SKU: 2097055208)
Position 081 – ARMATURE ASSEMBLY (SKU: 2097055408)
Position 082 – OVER RUNNING CLUTCH (SKU: 2097052108)
Position 083 – PINION STOPPER (SKU: 2347055508)
Position 084 – HOUSING COMPLETE (SKU: 2797055008)
Position 085 – BUSH (SKU: 2097051108)
Position 086 – FRAME COMPLETE (SKU: 2097050518)
Position 087 – BUSH (SKU: 2097051008)
Position 088 – LEVER (SKU: 2097052508)
Position 089 – MAGNET SWITCH COMPLETE (SKU: 2797051508)
Position 090 – SNAP RING (SKU: 2097055718)
Position 091 – THROUGH BOLT (SKU: 2097055808)
Position 093 – NUT (SKU: 2097056008)
Position 094 – SPRING WASHER (SKU: 1077065208)
Position 095 – NUT (SKU: 2117058408)
Position 096 – BRACKET (SEL) COMPLETE (SKU: 2797651111)
Position 097 – BOLT,STARTER (SKU: 2147900701)
Position 100 – NUT (SKU: 0021708000)
Position 101 – SPRING WASHER (SKU: 0032008000)
Position 102 – MUFFLER STUD (SKU: 0105080290)
Position 103 – STUD M8X120L (SKU: 0105080440)
Position 105 – FLANGE BOLT M8X33L (SKU: 0110080270)
Position 106 – FLANGE BOLT M8X12L (SKU: 0110080150)
Position 107 – FAN (SILENT) COMPLETE (SKU: 34J5410101)
Position 108 – BOLT AND WASHER (SKU: 0011410250)
Position 109 – WASHER (SKU: 0200080080)
Position 111 – BAFFLE (SKU: 33D5260103)
Position 112 – FLANGE BOLT M8X33L (SKU: 0110080270)
Position 113 – FLANGE NUT (SKU: 0023808000)
Position 114 – FLANGE BOLT (SKU: 0110080320)
Position 116 – GASKET(MUFFLER) (SKU: 2773520113)
Position 118 – FLANGE (SKU: 2793920103)
Position 120 – SCREW ASS'Y (SKU: 0043505160)
Position 125 – COVER COMPLETE (SKU: 2793264608)
Position 126 – FILTER (SKU: 2793261208)
Position 127 – FLANGE NUT M6 (SKU: 0023806000)
Position 128 – RUBBER PIPE (8DX11D) (SKU: 0851080000)
Position 132 – SPONGE(INSULATOR) (SKU: 2793970103)
Position 133 – BRACKET (A/C) COMPLETE (SKU: 2793900401)
Position 135 – FLANGE BOLT (SKU: 0110060150)
Position 136 – BLOWER HOUSING (SKU: 2795200113)
Position 137 – BOLT AND WASHER ASS'Y (SKU: 0011406300)
Position 139 – STR PIN 8X10 (SKU: 9804008110)
Position 141 – SPIRAL SPRING (SKU: 2775040208)
Position 142 – REEL (SKU: 2775040308)
Position 143 – STARTER ROPE (SKU: 2775040808)
Position 145 – RACHET (SKU: 2775040408)
Position 146 – FRICTION SPRING (SKU: 2775040508)
Position 147 – FRICTION PLATE (SKU: 2775040708)
Position 148 – RETAINING RING (SKU: 2775040608)
Position 149 – FLANGE BOLT M6X18L (SKU: 0110060140)
Position 150 – COOLING BLOWER (SKU: 2795411003)
Position 151 – BAFFLE2(HEAD) (SKU: 2795270213)
Position 153 – DRIVING SHAFT (SKU: 2772440103)
Position 154 – FLANGE BOLT M8X27L (SKU: 0110100110)
Position 156 – THROTTLE VALVE (SKU: 2796253508)
Position 157 – SCREW (SKU: 2516245008)
Position 158 – VALVE CHOKE (SKU: 2796252608)
Position 159 – SCREW (SKU: 2516245008)
Position 160 – JET SLOW (SKU: 2796242008)
Position 161 – CHOKE LEVER (SKU: 2796252108)
Position 163 – SCREW (SKU: 2516245308)
Position 164 – VALVE ASSEMBLY,NEEDLE (SKU: 2796250008)
Position 165 – PIN FLOAT LEVER (SKU: 2796251508)
Position 166 – FLOAT BODY (SKU: 2796255308)
Position 167 – GASKET (SKU: 2516235008)
Position 168 – GASKET CHAMBER (SKU: 2796254008)
Position 169 – FLOAT SUB ASSEMBLY (SKU: 2796250508)
Position 170 – JET MAIN (SKU: 2796240008)
Position 171 – SCREW (SKU: 2846245608)
Position 172 – SPRING(CHOKE) (SKU: 2796244708)
Position 173 – SCREW (SKU: 2796258108)
Position 174 – BUSH (SKU: 2796256108)
Position 175 – SCREW ADJUSTING (SKU: 2796235318)
Position 176 – SPRING (SKU: 2796244508)
Position 177 – COLLAR (SKU: 2796256508)
Position 179 – O-RING (SKU: 2796245208)
Position 180 – O-RING (SKU: 2796245108)
Position 181 – VINYL PIPE (SKU: 2796259008)
Position 182 – MOTOR (SKU: 2846258008)
Position 184 – COVER(MOTOR) (SKU: 2776259508)
Position 185 – SCREW (SKU: 2846245808)
Position 186 – SCREW (SKU: 2846245708)
Position 187 – JOINT LEVER (SKU: 2796260008)
Position 189 – BRACKET (SKU: 2796257508)
Position 190 – SCREW (SKU: 2796258008)
Position 191 – CLAMP (SKU: 0566000250)
Position 192 – STATOR COMPLETE (SKU: 34D2105101)
Position 193 – BOLT (SKU: 34D2105108)
Position 194 – SPRING WASHER (SKU: 0032005000)
Position 195 – ROTOR COMPLETE (SKU: 34D2006101)
Position 196 – BEARING (SKU: 34B2100108)
Position 197 – BOLT (SKU: 0100100200)
Position 198 – WASHER (SKU: 0200100160)
Position 199 – REAR COVER (SKU: 34B2307101)
Position 200 – BOLT & WASHER ASS'Y (SKU: 0011406250)
Position 202 – COVER (SKU: 34B5500103)
Position 204 – RECTIFIER (SKU: 34K2090308)
Position 205 – SCREW (SKU: 34K2090408)
Position 210 – SCREW (SKU: 34K2090508)
Position 211 – BAND (SKU: 34K2090708)
Position 212 – FRAME COMPLETE (SKU: 34J3000101)
Position 213 – BATTERY BASE (SKU: 33B3560201)
Position 214 – FLANGE BOLT M6X12L (SKU: 0110060080)
Position 215 – SCREW (SKU: 0140060121)
Position 217 – SPONGE(BASE) (SKU: 34G5900503)
Position 219 – BOLT AND WASHER ASSY (SKU: 0011408160)
Position 220 – SPONGE(BASE) (SKU: 34G5900603)
Position 222 – MOUNT COMPLETE(L) (SKU: 32B3021401)
Position 223 – MOUNT COMPLETE(R) (SKU: 32B3021301)
Position 224 – MOUNT COMPLETE(R) 35L (SKU: 32B3020301)
Position 225 – MOUNT COMPLETE (L) 35L (SKU: 32B3020401)
Position 226 – FLANGE NUT (SKU: 0023808000)
Position 228 – BRAKE (SKU: 34G5600210)
Position 229 – SPRING (SKU: 34G5610213)
Position 230 – BOLT AND WASHER ASSY (SKU: 0011408160)
Position 231 – EARTH WIRE COMPLETE (SKU: 33B4809101)
Position 232 – EARTH WIRE (SKU: 34B4809101)
Position 236 – WASHER (SKU: 0031112000)
Position 237 – COTTER PIN (SKU: 0051030250)
Position 238 – BATTERY BAND (SKU: 33B5800101)
Position 239 – BATTERY WIRE COMPLETE (SKU: 33B4807211)
Position 240 – BATTERY COVER (SKU: 33D3570103)
Position 241 – LABEL(EARTH) (SKU: 0732002651)
Position 245 – TAPPING SCREW (SKU: 0150040070)
Position 246 – COVER (COCK) (SKU: 33B4600103)
Position 247 – WASHER (SKU: 0031004000)
Position 249 – SCREW & WASHER ASS'Y (SKU: 0043606160)
Position 250 – DIODE (SKU: 33B4710101)
Position 252 – WIRE HARNESS COMPLETE (SKU: 34B4800201)
Position 253 – WIRE HARNESS COMPLETE (SKU: 33B4805201)
Position 254 – SEAL SPONGE FC2 (SKU: 34B5731103)
Position 255 – TAPPING SCREW(M4X10MM) (SKU: 3534990408)
Position 257 – PANEL PLATE COMPLETE (SKU: 33B4500901)
Position 259 – GROMMET (SKU: 2277500103)
Position 261 – SCREW & WASHER ASS'Y (SKU: 0043603120)
Position 262 – NUT(M5) (SKU: 0021703000)
Position 299 – SIDE RUBBER SEAL (SKU: 34J5510103)
Position 348 – SPONGE 1 (SKU: 34G5733103)
Position 349 – SPONGE 2 (SKU: 34G5733203)
Position 350 – SCREEN (SKU: 2773722003)
Position 351 – RETURN SPRING (SKU: 2264500103)
Position 352 – WASHER (SKU: 2846244708)
Position 353 – SPRING(DIAL) (SKU: 33K4207403)
Position 354 – BALL(DIAL) (SKU: 33K4207103)
Position 355 – SPONGE (SKU: 34G5900803)
Position 356 – SPONGE (SKU: 34G6700113)
Position 357 – SPONGE (SKU: 34G6700223)

Exploded View – G4300IS

Description

Exploded View – G4300IS
