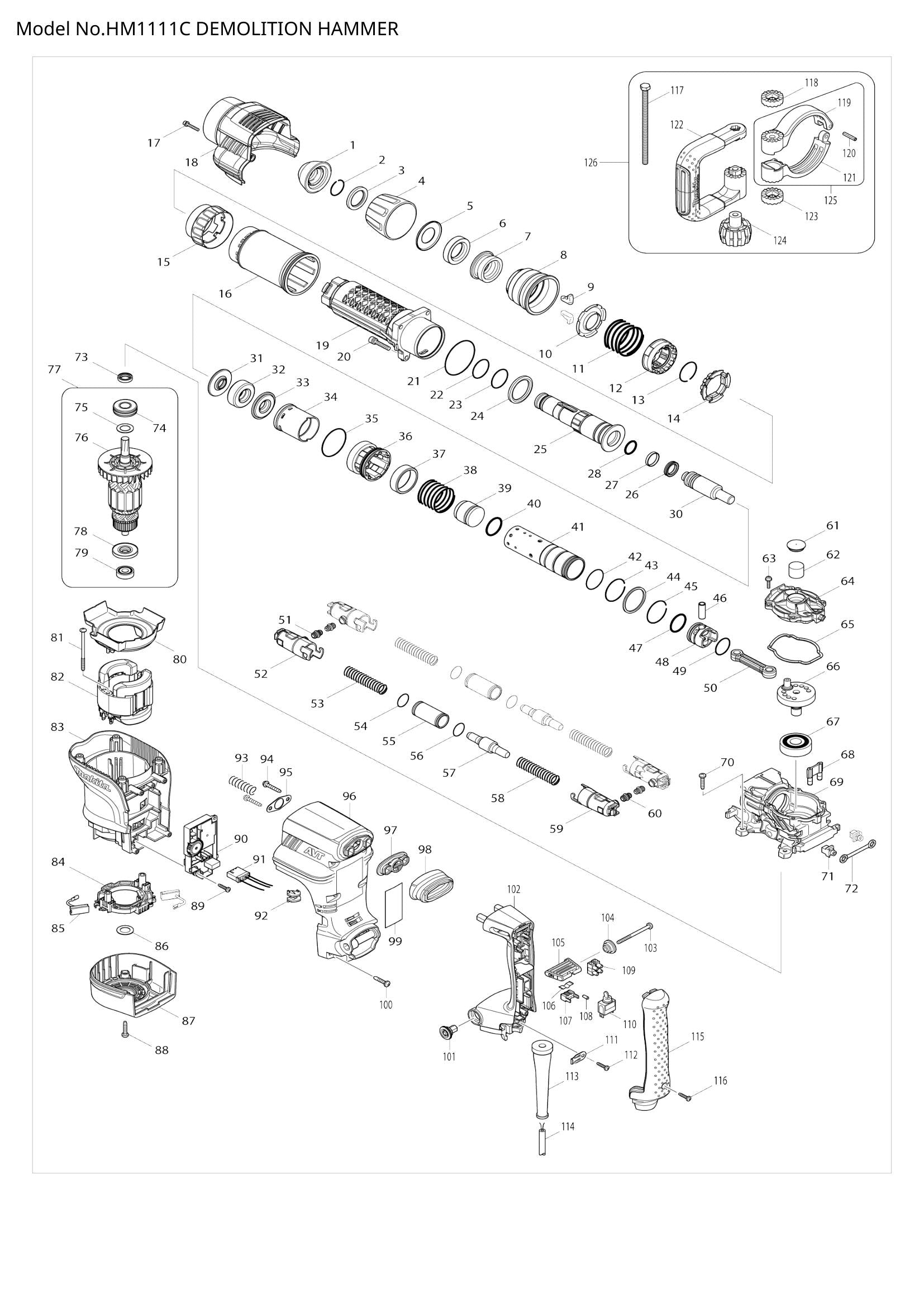

Name: Exploded View – HM1111C
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – TOOL HOLDER CAP (SKU: 286285-4)
Position 002 – RING SPRING 25 (SKU: 233948-3)
Position 003 – RING 28 (SKU: 257308-5)
Position 004 – CHUCK COVER (SKU: 450064-8)
Position 005 – CUP WASHER 28 (SKU: 346247-5)
Position 006 – RUBBER RING 28 (SKU: 262161-6)
Position 007 – CHUCK RING (SKU: 324752-2)
Position 008 – RELEASE COVER (SKU: 451836-4)
Position 009 – TOOL RETAINER (SKU: 310178-4)
Position 010 – SPRING GUIDE (SKU: 345804-6)
Position 011 – COMPRESSION SPRING 47 (SKU: 234180-2)
Position 012 – CHANGE RING (SKU: 313193-7)
Position 013 – RING SPRING 33 (SKU: 233982-3)
Position 014 – LOCK RING (SKU: 325904-8)
Position 015 – CHANGE RING COVER (SKU: 451842-9)
Position 016 – BARREL COVER (SKU: 451835-6)
Position 017 – HEX. SOCKET HEAD BOLT M4X25 (SKU: 922148-7)
Position 018 – CRANK HOUSING COVER (SKU: 451845-3)
Position 019 – BARREL COMPLETE (SKU: 140411-8)
Position 020 – HEX.SOCKET HEAD BOLT M6X30 (SKU: 922353-6)
Position 021 – O RING 60 (SKU: 213654-6)
Position 022 – O-RING 32 (SKU: 213492-6)
Position 023 – O-RING 32 (SKU: 213492-6)
Position 024 – RUBBER RING 36 (SKU: 262135-7)
Position 025 – TOOL HOLDER (SKU: 325901-4)
Position 026 – X-RING 18 (SKU: 213281-9)
Position 027 – FLUORIDE RING 25 (SKU: 213392-0)
Position 028 – O RING 20 (SKU: 213317-4)
Position 030 – IMPACT BOLT (SKU: 325902-2)
Position 031 – COLLARED SLEEVE 19 (SKU: 325903-0)
Position 032 – RUBBER RING 20 (SKU: 422053-3)
Position 033 – COLLARED SLEEVE 19 (SKU: 325903-0)
Position 034 – SLIDE SLEEVE (SKU: 412096-3)
Position 035 – O RING 48 (SKU: 213606-7)
Position 036 – CYLINDER GUIDE (SKU: 318604-7)
Position 037 – RING 39 (SKU: 313194-5)
Position 038 – COMPRESSION SPRING 40 (SKU: 234178-9)
Position 039 – STRIKER (SKU: 325905-6)
Position 040 – O-RING 27 (SKU: 213536-2)
Position 041 – CYLINDER 35 (SKU: 331892-9)
Position 042 – O RING 34 (SKU: 213458-6)
Position 043 – RING SPRING 38 (SKU: 233981-5)
Position 044 – FLAT WASHER 40 (SKU: 267423-7)
Position 045 – RING SPRING 38 (SKU: 233981-5)
Position 046 – PIPE 10 (SKU: 331911-1)
Position 047 – O-RING 27 (SKU: 213536-2)
Position 048 – PISTON (SKU: 451833-0)
Position 049 – O RING 28 (SKU: 213415-4)
Position 050 – CONNECTING ROD (SKU: 451834-8)
Position 051 – RUBBER PIPE (SKU: 422054-1)
Position 052 – FRONT PIPE HOLDER (SKU: 451843-7)
Position 053 – COMPRESSION SPRING 14 (SKU: 234179-7)
Position 054 – O RING 22 (SKU: 213961-7)
Position 055 – PIPE 20 (SKU: 331893-7)
Position 056 – O RING 22 (SKU: 213961-7)
Position 057 – COUNTER WEIGHT (SKU: 325906-4)
Position 058 – COMPRESSION SPRING 14 (SKU: 234179-7)
Position 059 – REAR PIPE HOLDER (SKU: 451844-5)
Position 060 – RUBBER PIPE (SKU: 422054-1)
Position 061 – FILTER CAP (SKU: 424311-3)
Position 062 – FILTER (SKU: 443127-7)
Position 063 – PAN HEAD SCREW M4X18 (SKU: 911133-5)
Position 064 – CRANK CAP (SKU: 451838-0)
Position 065 – SEAL RING (SKU: 424312-1)
Position 066 – CRANK SHAFT (SKU: 325899-5)
Position 067 – BALL BEARING 6303LLU (SKU: 211279-0)
Position 068 – AIR PIPE (SKU: 451848-7)
Position 069 – CRANK HOUSING COMPLETE (SKU: 140407-9)
Position 070 – TAPPING SCREW 5X25 (SKU: 266041-8)
Position 071 – FIX GUIDE (SKU: 419008-7)
Position 072 – CUSHION PLATE (SKU: 423345-3)
Position 073 – OIL SEAL 12 (SKU: 213133-4)
Position 074 – BALL BEARING 6202LLU (SKU: 211295-2)
Position 075 – FLAT WASHER 15 (SKU: 267215-4)
Position 076 – FAN 80 (SKU: 241908-1)
Position 077 – ARMATURE ASSEMBLY 220-240V (SKU: 517858-5)
Position 078 – INSULATION WASHER (SKU: 681642-5)
Position 079 – BALL BEARING 6000DDW (SKU: 210059-1)
Position 080 – BAFFLE PLATE (SKU: 451837-2)
Position 081 – TAPPING SCREW 5X80 (SKU: 266568-8)
Position 082 – FIELD 220-240V (SKU: 623418-4)
Position 083 – MOTOR HOUSING (SKU: 451840-3)
Position 084 – BRUSH HOLDER UNIT (SKU: 638700-8)
Position 086 – FLAT WASHER 15 (SKU: 267215-4)
Position 087 – REAR COVER (SKU: 451839-8)
Position 088 – TAPPING SCREW 5X25 (SKU: 266041-8)
Position 090 – CONTROLLER (SKU: 631968-5)
Position 091 – LEAD UNIT (SKU: 638718-9)
Position 092 – LENS (SKU: 450240-4)
Position 093 – COMPRESSION SPRING 11 (SKU: 233434-4)
Position 094 – TAPPING SCREW 5X30 (SKU: 266173-1)
Position 095 – PLATE (SKU: 346246-7)
Position 096 – HANDLE BASE (SKU: 451846-1)
Position 097 – DUST COVER SUPPORT (SKU: 419783-5)
Position 098 – DUST COVER (SKU: 424001-8)
Position 100 – TAPPING SCREW 5X25 (SKU: 266041-8)
Position 101 – HANDLE RETAINER (SKU: 451431-0)
Position 102 – HANDLE COMPLETE (SKU: 140409-5)
Position 103 – TAPPING SCREW 5X65 (SKU: 266029-8)
Position 104 – SHOULDER SLEEVE 6 (SKU: 450352-3)
Position 105 – SLIDE LEVER (SKU: 450896-3)
Position 106 – LEAF SPRING (SKU: 232209-8)
Position 107 – LEVER STOPPER (SKU: 450891-3)
Position 108 – RUBBER PIN 4 (SKU: 263027-3)
Position 109 – TERMINAL BLOCK 2P (SKU: 654531-7)
Position 111 – STRAIN RELIEF (SKU: 687169-3)
Position 112 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 113 – CORD GUARD 10 (SKU: 682560-0)
Position 114 – POWER SUPPLY CORD 1.5-2-4.0 (SKU: 695123-3)
Position 115 – HANDLE COVER (SKU: 451841-1)
Position 116 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 117 – HEX. BOLT M8X150 (SKU: 265439-6)
Position 118 – SIDE HANDLE CAM (SKU: 417002-3)
Position 119 – SIDE HANDLE BASE 68A (SKU: 317282-0)
Position 120 – SPRING PIN 5-24 (SKU: 951166-8)
Position 121 – SIDE HANDLE BASE 68B (SKU: 317283-8)
Position 122 – SIDE HANDLE (SKU: 417003-1)
Position 123 – SIDE HANDLE CAM (SKU: 417002-3)
Position 124 – WING NUT M8 (SKU: 252640-2)
Position 125 – SIDE HANDLE 68 COMPLETE (SKU: 151769-0)
Position 126 – SIDE HANDLE 68 ASS'Y (SKU: 134890-0)

Exploded View – HM1111C
