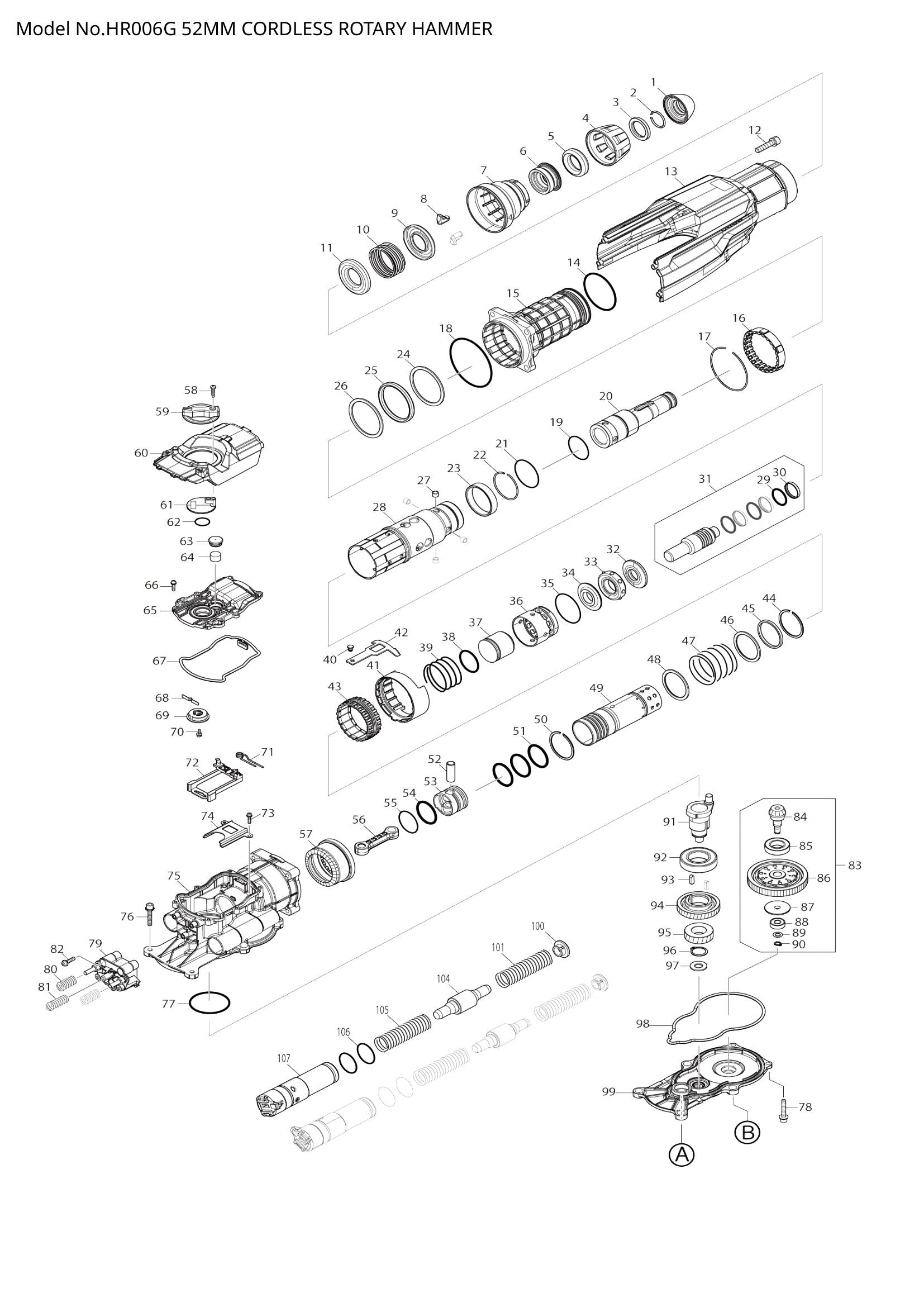

Name: Exploded View – HR006G
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – TOOL HOLDER CAP (SKU: 286292-7)
Position 002 – RING SPRING 25 (SKU: 233948-3)
Position 003 – RING 28 (SKU: 257367-9)
Position 004 – CHUCK COVER (SKU: 454767-6)
Position 005 – RUBBER RING 29 (SKU: 262172-1)
Position 006 – CHUCK RING (SKU: 327868-2)
Position 007 – RELEASE COVER (SKU: 454768-4)
Position 008 – TOOL RETAINER (SKU: 310178-4)
Position 009 – SPRING GUIDE (SKU: 346751-4)
Position 010 – COMPRESSION SPRING 49 (SKU: 234317-1)
Position 011 – SPRING GUIDE (SKU: 346751-4)
Position 012 – HEX. SOCKET HEAD BOLT M8X35 (SKU: 922456-6)
Position 013 – HOUSING COVER COMPLETE (SKU: 140Y01-7)
Position 014 – O RING 60 (SKU: 213664-3)
Position 015 – BARREL COMPLETE (SKU: 142408-3)
Position 016 – LOCK SLEEVE (SKU: 454769-2)
Position 017 – RING SPRING 74 (SKU: 259057-0)
Position 018 – O-RING 78 (SKU: 213766-5)
Position 019 – O-RING 38 (SKU: 213789-3)
Position 020 – TOOL HOLDER A (SKU: 327735-1)
Position 021 – O-RING 45 (SKU: 213779-6)
Position 022 – RING SPRING 46 (SKU: 231989-3)
Position 023 – RING 49 (SKU: 257353-0)
Position 024 – FLAT WASHER 60 (SKU: 267477-4)
Position 025 – RUBBER RING 60 (SKU: 262171-3)
Position 026 – FLAT WASHER 60 (SKU: 267477-4)
Position 027 – PIN 9 (SKU: 268308-0)
Position 028 – TOOL HOLDER B (SKU: 326362-1)
Position 029 – O RING 23 (SKU: 213394-6)
Position 030 – FLUORIDE RING 28 (SKU: 213431-6)
Position 031 – IMPACT BOLT ASSY (SKU: 136413-0)
Position 032 – RING 20 (SKU: 324756-4)
Position 033 – RUBBUR RING 24 (SKU: 424000-0)
Position 034 – SHOULDER WASHER 20 (SKU: 327734-3)
Position 035 – O-RING 48 (SKU: 213783-5)
Position 036 – SLIDE SLEEVE (SKU: 413263-3)
Position 037 – STRIKER (SKU: 327731-9)
Position 038 – O-RING 33 (SKU: 213781-9)
Position 039 – COMPRESSION SPRING 45 (SKU: 234318-9)
Position 040 – FLAT FILLISTER HEAD PIN 6 (SKU: 256548-2)
Position 041 – GUIDE RING (SKU: 454779-9)
Position 042 – LINK PLATE (SKU: 346749-1)
Position 043 – DRIVING SLEEVE (SKU: 313272-1)
Position 044 – RETAINING RING(EXT)WR-44 (SKU: 257994-2)
Position 045 – RING 44 (SKU: 257355-6)
Position 046 – FLAT WASHER 44 (SKU: 267478-2)
Position 047 – COMPRESSION SPRING 46 (SKU: 234319-7)
Position 048 – FLAT WASHER 44 (SKU: 267478-2)
Position 049 – CYLINDER 40 (SKU: 327730-1)
Position 050 – RETAINING RING(EXT)WR-44 (SKU: 257994-2)
Position 051 – O RING 35 (SKU: 213460-9)
Position 052 – SLEEVE 9 (SKU: 257820-5)
Position 053 – PISTON (SKU: 312A68-3)
Position 054 – O-RING 30 (SKU: 213782-7)
Position 055 – O RING 35 (SKU: 213460-9)
Position 056 – CONNECTING ROD (SKU: 413261-7)
Position 057 – SPIRAL BEVEL GEAR 33 (SKU: 227625-7)
Position 058 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 059 – CHANGE LEVER (SKU: 454326-6)
Position 060 – CRANK CAP COVER (SKU: 312A70-6)
Position 061 – CRANK LEVER (SKU: 454345-2)
Position 062 – O RING 18 (SKU: 213262-3)
Position 063 – FILTER CAP (SKU: 424607-2)
Position 064 – FILTER (SKU: 443129-3)
Position 065 – CRANK CAP (SKU: 454764-2)
Position 066 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 068 – LEAF SPRING (SKU: 232280-2)
Position 069 – LINK LEVER (SKU: 413827-3)
Position 070 – PAN HEAD SCREW M4X10 (SKU: 911511-9)
Position 071 – TORSION SPRING 7 (SKU: 233611-8)
Position 072 – LINK GUIDE (SKU: 454778-1)
Position 073 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 074 – GUIDE RAIL (SKU: 346748-3)
Position 076 – H.S.H.BOLT M6X35 WITH WG (SKU: 922359-4)
Position 077 – O RING 55 (SKU: 213662-7)
Position 078 – H.S.H.BOLT M6X35 WITH WG (SKU: 922359-4)
Position 079 – SPRING BASE (SKU: 413264-1)
Position 080 – COMPRESSION SPRING 12 (SKU: 232662-8)
Position 081 – COMPRESSION SPRING 10 (SKU: 232664-4)
Position 082 – PAN HEAD SCREW M5X20 (SKU: 911233-1)
Position 083 – TORQUE LIMITER ASSEMBLY (SKU: 127823-2)
Position 084 – SPIRAL BEVEL GEAR 10 (SKU: 227628-1)
Position 085 – BALL BEARING 6904LLB (SKU: 210256-9)
Position 086 – TORQUE LIMITER COMPLETE (SKU: 142410-6)
Position 087 – SHOULDER WASHER 8 (SKU: 324727-1)
Position 088 – BALL BEARING 608DDW (SKU: 210005-4)
Position 089 – FLAT WASHER 8 (SKU: 253215-0)
Position 090 – RETAINING RING (EXT) S-8 (SKU: 961004-6)
Position 091 – CRANK SHAFT (SKU: 327729-6)
Position 092 – BALL BEARING 6006LLB (SKU: 210255-1)
Position 093 – KEY 5 (SKU: 254229-2)
Position 094 – HELICAL GEAR 46 (SKU: 227788-9)
Position 095 – SPUR GEAR 26 (SKU: 227336-4)
Position 096 – RETAINING RING S-22 (SKU: 961102-6)
Position 097 – FLAT WASHER 12 (SKU: 253843-1)
Position 099 – GEAR HOUSING COMPLETE (SKU: 142409-1)
Position 100 – SPRING PLATE (SKU: 454774-9)
Position 101 – COMPRESSION SPRING 15 (SKU: 233497-0)
Position 104 – COUNTER WEIGHT (SKU: 326375-2)
Position 105 – COMPRESSION SPRING 15 (SKU: 233497-0)
Position 106 – O RING 24 (SKU: 213953-6)
Position 107 – HOLDER COMPLETE (SKU: 141E52-3)
Position 108 – OIL SEAL 15 (SKU: 213231-4)
Position 110 – BALL BEARING 6202DDW (SKU: 211228-7)
Position 111 – FLAT WASHER 15 (SKU: 267215-4)
Position 113 – BALL BEARING 6000DDW (SKU: 210059-1)
Position 114 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 115 – BAFFLE PLATE (SKU: 413260-9)
Position 116 – STATOR (SKU: 629A27-3)
Position 117 – LEAD UNIT (SKU: 632R89-4)
Position 118 – PAN HEAD SCREW M3X6 (SKU: 652031-1)
Position 119 – CONTROLLER B (SKU: 620E26-2)
Position 120 – STOPPER (SKU: 687B69-9)
Position 121 – TAPPING SCREW PT 2X6 (SKU: 266490-9)
Position 122 – GUARD 52 (SKU: 454780-4)
Position 123 – TAPPING SCREW 5X25 (SKU: 266041-8)
Position 124 – GEAR HOUSING COVER (SKU: 454763-4)
Position 125 – MOTOR HOUSING (SKU: 413256-0)
Position 127 – SHOULDER PIN 4-6 (SKU: 256380-4)
Position 128 – BASE (SKU: 412985-2)
Position 129 – TORSION SPRING 13 (SKU: 232643-2)
Position 130 – LEVER COMPLETE (SKU: 140W48-9)
Position 131 – TAPPING SCREW 3X14 (SKU: 263046-9)
Position 132 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 133 – SENSOR CIRCUIT (SKU: 620E28-8)
Position 134 – DIAL CIRCUIT (SKU: 620E29-6)
Position 135 – MOTOR HOUSING COVER COMP (SKU: 140X97-2)
Position 136 – TAPPING SCREW 5X25 (SKU: 266041-8)
Position 137 – TAPPING SCREW 5X25 (SKU: 266041-8)
Position 138 – HOUSING SET (SKU: 183S32-7)
Position 139 – COMPRESSION SPRING 8 (SKU: 232663-6)
Position 140 – LED CIRCUIT (SKU: 620E27-0)
Position 141 – CONTROLLER (SKU: 620E25-4)
Position 142 – ACCELEROMETER CIRCUIT (SKU: 620E30-1)
Position 143 – ROD 3 (SKU: 256886-2)
Position 144 – SPONGE SLEEVE 3 (SKU: 422472-3)
Position 145 – TERMINAL UNIT (SKU: 632R98-3)
Position 146 – LINE FILTER (SKU: 688163-8)
Position 147 – LEAF SPRING (SKU: 232152-1)
Position 148 – TRIGGER LOCK (SKU: 412953-5)
Position 149 – SWITCH LEVER (SKU: 458097-7)
Position 150 – COMPRESSION SPRING 5 (SKU: 232418-9)
Position 151 – SWITCH C3XA-1PSPM (SKU: 651083-9)
Position 152 – HOUSING SET (SKU: 183S32-7)
Position 153 – CAP COMPLETE (SKU: 140F99-0)
Position 154 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 155 – XGT LOGO LABEL (SKU: 8029M5-9)
Position 156 – HR006G SERIAL NO. LABEL (SKU: 811996-8)
Position 157 – HR006G NAME PLATE (SKU: 811990-0)

Exploded View – HR006G

Description

Exploded View – HR006G
