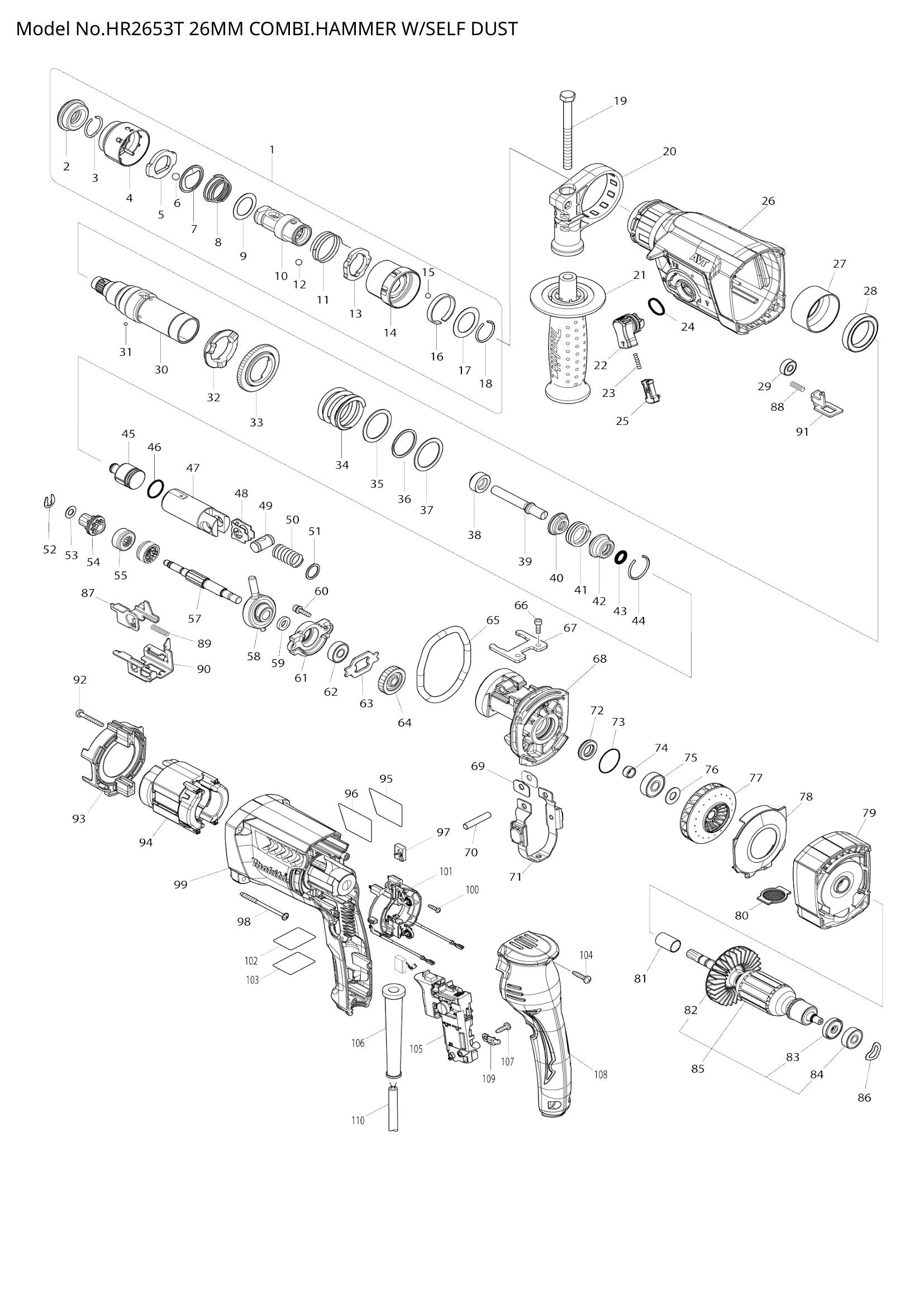

Name: Exploded View – HR2653T
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – TOOL HOLDER SET (SKU: 194080-7)
Position 002 – CAP 35 (SKU: 286263-4)
Position 003 – RING SPRING 19 (SKU: 233940-9)
Position 004 – CHUCK COVER (SKU: 418217-5)
Position 005 – STOPPER (SKU: 345333-9)
Position 006 – STEEL BALL 7.0 (SKU: 216022-2)
Position 007 – GUIDE WASHER (SKU: 345187-4)
Position 008 – CONICAL COMP. SPRING 21-29 (SKU: 233916-6)
Position 009 – FLAT WASHER 21 (SKU: 267279-8)
Position 010 – TOOL HOLDER (SKU: 324355-2)
Position 011 – TORSION SPRING 31 (SKU: 231669-1)
Position 012 – STEEL BALL 6 (SKU: 216013-3)
Position 013 – CHANGE RING (SKU: 345334-7)
Position 014 – CHANGE COVER (SKU: 418218-3)
Position 015 – STEEL BALL 5.0 (SKU: 216018-3)
Position 016 – LEAF SPRING (SKU: 345335-5)
Position 017 – FLAT WASHER 24 (SKU: 267270-6)
Position 018 – RING SPRING 21 (SKU: 233924-7)
Position 019 – HEX.BOLT M8X90 (SKU: 266745-2)
Position 020 – GRIP BASE (SKU: 453129-5)
Position 021 – GRIP 36 COMPLETE (SKU: 158057-6)
Position 022 – CHANGE LEVER COMPLETE (SKU: 161656-5)
Position 023 – COMPRESSION SPRING 3 (SKU: 234264-6)
Position 024 – O RING 17 (SKU: 213278-8)
Position 025 – LOCK BUTTON (SKU: 457709-9)
Position 026 – GEAR HOUSING COMPLETE (SKU: 140D00-3)
Position 027 – CUP SLEEVE (SKU: 331890-3)
Position 028 – BALL BEARING 6806LLU (SKU: 211294-4)
Position 029 – BALL BEARING 606ZZ (SKU: 210028-2)
Position 030 – TOOL HOLDERGUIDE COMPLETE (SKU: 140266-1)
Position 031 – STEEL BALL 3 (SKU: 216019-1)
Position 032 – DRIVING FLANGE (SKU: 332139-4)
Position 033 – SPUR GEAR 51 (SKU: 227360-7)
Position 034 – COMPRESSION SPRING 31 (SKU: 234148-8)
Position 035 – FLAT WASHER 30 (SKU: 267153-0)
Position 036 – SPIRO LOCK WASHER 30 (SKU: 257932-4)
Position 037 – FLAT WASHER 30 (SKU: 267153-0)
Position 038 – SLEEVE 9B (SKU: 325783-4)
Position 039 – IMPACT BOLT B (SKU: 325791-5)
Position 040 – WASHER 10 (SKU: 325792-3)
Position 041 – COMPRESSION SPRING 20 (SKU: 234149-6)
Position 042 – O-RING CASE B (SKU: 325793-1)
Position 043 – O RING 9 (SKU: 213073-6)
Position 044 – RING SPRING 28 (SKU: 233979-2)
Position 045 – STRIKER (SKU: 325784-2)
Position 046 – O RING 17.5 (SKU: 213258-4)
Position 047 – PISTON CYLINDER (SKU: 310345-1)
Position 048 – GUIDE PLATE (SKU: 346036-8)
Position 049 – PISTON JOINT (SKU: 324215-8)
Position 050 – COMPRESSION SPRING 14 (SKU: 234098-7)
Position 051 – FLAT WASHER 14 (SKU: 267447-3)
Position 052 – STOP RING EXT U-6 (SKU: 257336-0)
Position 053 – FLAT WASHER 7 (SKU: 253186-1)
Position 054 – SPUR GEAR 10 (SKU: 227359-2)
Position 057 – CAM SHAFT (SKU: 326448-1)
Position 058 – SWASH BEARING 10 (SKU: 219023-9)
Position 059 – RING 8 (SKU: 257321-3)
Position 060 – HEX. SOCKET HEAD BOLT M4X16 (SKU: 266437-3)
Position 061 – BEARING BOX (SKU: 310344-3)
Position 062 – BALL BEARING 608ZZ (SKU: 211032-4)
Position 063 – BEARING RETAINER (SKU: 285735-6)
Position 064 – HELICAL GEAR 26 (SKU: 227719-8)
Position 065 – O-RING 68 (SKU: 213728-3)
Position 066 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 265353-6)
Position 067 – PLATE (SKU: 346222-1)
Position 068 – INNER HOUSING COMPLETE (SKU: 141573-5)
Position 069 – WEIGHT HOLDER GUIDE (SKU: 346180-1)
Position 070 – PIN 6 (SKU: 256246-8)
Position 071 – COUNTER WEIGHT (SKU: 161655-7)
Position 072 – OIL SEAL 12 (SKU: 213678-2)
Position 073 – O RING 26 (SKU: 213407-3)
Position 075 – BALL BEARING 629LLB (SKU: 210042-8)
Position 076 – FLAT WASHER 9 (SKU: 253733-8)
Position 077 – FAN 65 (SKU: 240182-8)
Position 078 – BAFFLE PLATE (SKU: 457711-2)
Position 079 – FAN HOUSING (SKU: 457710-4)
Position 080 – FILTER PLATE (SKU: 457713-8)
Position 081 – SLEEVE 10 (SKU: 262184-4)
Position 082 – FAN 65 (SKU: 240121-8)
Position 083 – INSULATION WASHER (SKU: 681652-2)
Position 084 – BALL BEARING 627DDW (SKU: 210023-2)
Position 085 – ARMATURE ASSY 240V (SKU: 515424-2)
Position 086 – WAVE WASHER 15 (SKU: 267804-5)
Position 087 – CHANGE PLATE B (SKU: 347230-5)
Position 088 – COMPRESSION SPRING 4 (SKU: 233360-7)
Position 089 – COMPRESSION SPRING 5 (SKU: 234343-0)
Position 090 – CHANGE PLATE A (SKU: 347229-0)
Position 091 – LOCK PLATE (SKU: 347228-2)
Position 092 – TAPPING SCREW 4X30 (SKU: 266361-0)
Position 093 – BAFFLE PLATE (SKU: 451527-7)
Position 096 – HR2653T NAME PLATE (SKU: 855K31-8)
Position 097 – CARBON BRUSH CB-325 (SKU: 194074-2)
Position 098 – TAPPING SCREW 4X60 (SKU: 266334-3)
Position 099 – MOTOR HOUSING (SKU: 451536-6)
Position 100 – TAPPING SCREW 3X12 (SKU: 266556-5)
Position 101 – BRUSH HOLDER UNIT (SKU: 632K38-9)
Position 102 – HR2653T SERIAL NO. LABEL (SKU: 855K35-0)
Position 104 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 105 – SWITCH TG853TB-3 (SKU: 651090-2)
Position 106 – CORD GUARD 10 (SKU: 682566-8)
Position 107 – TAPPING SCREW 4X14 (SKU: 266385-6)
Position 108 – HANDLE COVER (SKU: 451528-5)
Position 109 – STRAIN RELIEF (SKU: 687682-1)
Position 110 – POWER SUPPLY CORD 1.0-2-4.0 (SKU: 665890-4)
Position 116 – H.S.H.BOLT M3X12 WITH WR (SKU: 251568-1)
Position 117 – COLLECTOR BASE B (SKU: 457729-3)
Position 118 – PIPE COVER (SKU: 457723-5)
Position 120 – PUSH BUTTON B (SKU: 457718-8)
Position 121 – SLIDE PIPE (SKU: 326988-9)
Position 122 – STOPPER BASE B (SKU: 457728-5)
Position 123 – RACK GUIDE (SKU: 457722-7)
Position 124 – COMPRESSION SPRING 4 (SKU: 232386-6)
Position 125 – SPRING PLATE (SKU: 457721-9)
Position 126 – PUSH BUTTON A (SKU: 457717-0)
Position 127 – HEX. NUT M4 (SKU: 931102-0)
Position 128 – STOPPER BASE A (SKU: 457719-6)
Position 129 – + SCREW M4X12 (SKU: 251314-2)
Position 130 – HOSE 30 (SKU: 245045-3)
Position 132 – COMPRESSION SPRING 7 (SKU: 231316-4)
Position 133 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 134 – HOUSING SET (SKU: 183K50-7)
Position 137 – PIN 3 (SKU: 256158-5)
Position 138 – PUSH LEVER (SKU: 457720-1)
Position 139 – HOUSING SET (SKU: 183K50-7)
Position 140 – INNER PIPE (SKU: 457724-3)
Position 141 – SPONGE SHEET B (SKU: 457725-1)
Position 143 – FILTER SET (SKU: 199557-7)
Position 145 – STOPPER (SKU: 458687-6)
Position 146 – DAMPER (SKU: 422315-9)
Position 147 – FILTER GUARD (SKU: 457727-7)
Position 148 – RELEASE LEVER (SKU: 453148-1)
Position 149 – SHAFT (SKU: 327221-2)
Position 150 – FLAT WASHER 8 (SKU: 253431-4)
Position 152 – CAM (SKU: 310918-0)
Position 153 – HAMMER (SKU: 310919-8)
Position 154 – COMPRESSION SPRING 21 (SKU: 232482-0)
Position 155 – FLAT WASHER 8 (SKU: 253431-4)
Position 156 – RETAINING RING (EXT) S-8 (SKU: 961004-6)
Position 157 – SUPER GEAR 17 (SKU: 226856-5)
Position 158 – INTERNAL GEAR 49 (SKU: 226857-3)
Position 159 – SUPER GEAR 15 (SKU: 226855-7)
Position 160 – CARRIER COMPLETE (SKU: 140F90-8)
Position 161 – FLAT WASHER 8 (SKU: 253430-6)
Position 162 – DIAL COMPLETE (SKU: 140H88-7)
Position 163 – H.S.H.BOLT M4X16 WITH WG (SKU: 922129-1)
