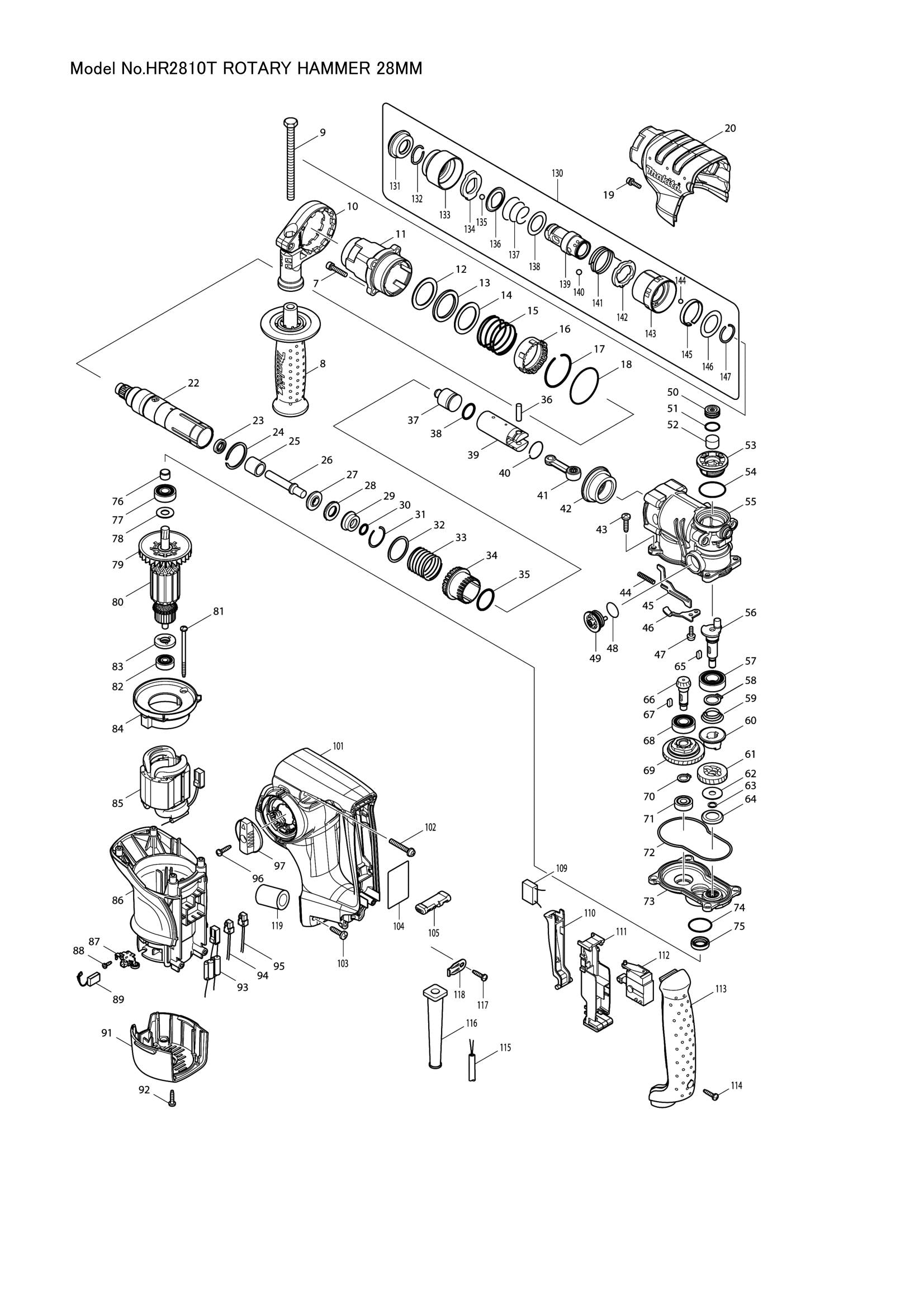

Name: Exploded View – HR2810T
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 009 – HEX. BOLT M8X110 (SKU: 921919-9)
Position 010 – GRIP BASE 20 (SKU: 419975-6)
Position 011 – BARREL COMPLETE (SKU: 158288-7)
Position 012 – FLAT WASHER 31 (SKU: 267354-0)
Position 013 – URETHANE RING 31 (SKU: 262133-1)
Position 014 – FLAT WASHER 31 (SKU: 267354-0)
Position 015 – COMPRESSION SPRING 37 (SKU: 234020-4)
Position 016 – LOCK SLEEVE (SKU: 419986-1)
Position 017 – RING SPRING 41 (SKU: 233952-2)
Position 018 – O RING 46 (SKU: 213620-3)
Position 020 – CRANK HOUSING COVER (SKU: 419984-5)
Position 024 – RETAINING RING (SKU: 961140-8)
Position 025 – SLEEVE 9 (SKU: 331769-8)
Position 026 – IMPACT BOLT (SKU: 324796-2)
Position 027 – RING 10 (SKU: 324402-9)
Position 028 – CUSHION RING 13 (SKU: 421955-0)
Position 029 – O RING CASE (SKU: 324216-6)
Position 030 – O RING 9 (SKU: 213073-6)
Position 031 – RING SPRING 28 (SKU: 233917-4)
Position 032 – FLAT WASHER 29 (SKU: 267105-1)
Position 033 – COMPRESSION SPRING 30 (SKU: 234021-2)
Position 034 – DRIVING SLEEVE (SKU: 331770-3)
Position 035 – O RING 26 (SKU: 213435-8)
Position 036 – PIN 6 (SKU: 256099-5)
Position 037 – STRIKER (SKU: 324733-6)
Position 038 – O RING 16 (SKU: 213227-5)
Position 039 – PISTON CYLINDER (SKU: 331776-1)
Position 040 – RING SPRING 21 (SKU: 233954-8)
Position 042 – SPIRAL BEVEL GEAR 31 (SKU: 227532-4)
Position 043 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 044 – COMPRESSION SPRING 4 (SKU: 234019-9)
Position 045 – LINK PLATE (SKU: 345814-3)
Position 046 – GUIDE PLATE (SKU: 345815-1)
Position 047 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
Position 048 – O RING 18 (SKU: 213262-3)
Position 049 – LINK LEVER COMPLETE (SKU: 162256-4)
Position 050 – FILTER CAP (SKU: 419988-7)
Position 052 – FILTER (SKU: 443129-3)
Position 053 – CRANK CAP (SKU: 419987-9)
Position 054 – O RING 30 (SKU: 213406-5)
Position 056 – CRANK SHAFT (SKU: 324793-8)
Position 057 – BALL BEARING 6002LLU (SKU: 211232-6)
Position 058 – RETAINING RING S-15 (SKU: 961055-9)
Position 059 – C. C. SPRING 16-26 (SKU: 233951-4)
Position 060 – CLUTCH (SKU: 223167-9)
Position 061 – HELICAL GEAR 29 (SKU: 226653-9)
Position 062 – FLAT WASHER 8 (SKU: 267353-2)
Position 063 – RETAINING RING (SKU: 961034-7)
Position 064 – CUP WASHER 16 (SKU: 345818-5)
Position 065 – KEY 4 (SKU: 254239-9)
Position 066 – SPIRAL BEVEL GEAR 9 (SKU: 227524-3)
Position 067 – KEY 4 (SKU: 254239-9)
Position 068 – BALL BEARING 6001LLU (SKU: 210105-0)
Position 069 – TORQUE LIMITER ASS'Y (SKU: 125386-2)
Position 070 – RETAINING RING S-10 (SKU: 961006-2)
Position 071 – BALL BEARING 608LLU (SKU: 210024-0)
Position 072 – SEAL RING (SKU: 424028-8)
Position 073 – GEAR HOUSING COMPLETE (SKU: 158287-9)
Position 074 – O-RING 26 (SKU: 213445-5)
Position 076 – SLEEVE 10 (SKU: 331775-3)
Position 077 – BALL BEARING 6000LLU (SKU: 210054-1)
Position 078 – FLAT WASHER 10 (SKU: 253171-4)
Position 079 – FAN 64 (SKU: 240095-3)
Position 080 – ARMATURE ASS'Y 240V (SKU: 515294-9)
Position 081 – TAPPING SCREW 4X70 (SKU: 266325-4)
Position 082 – BALL BEARING 627DDW (SKU: 210023-2)
Position 083 – INSULATION WASHER (SKU: 681656-4)
Position 084 – BUFFLE PLATE (SKU: 419989-5)
Position 085 – FIELD ASS'Y 240V (SKU: 526584-5)
Position 086 – MOTOR HOUSING (SKU: 419981-1)
Position 087 – BRUSH HOLDER (SKU: 643766-5)
Position 088 – TAPPING SCREW 3X10 (SKU: 266421-8)
Position 089 – CARBON BRUSH CB-325 (SKU: 194074-2)
Position 091 – REAR COVER (SKU: 419983-7)
Position 092 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 093 – CHOKE COIL UNIT (SKU: 638568-2)
Position 094 – LEAD UNIT (SKU: 638567-4)
Position 095 – LEAD UNIT (SKU: 638566-6)
Position 096 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 097 – CHANGE LEVER COMPLETE (SKU: 158284-5)
Position 101 – HANDLE (SKU: 419976-4)
Position 102 – PAN HEAD SCREW M5X35 (SKU: 911258-5)
Position 103 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 104 – HR2810T NAME PLATE (SKU: 863921-5)
Position 105 – F/R CHANGE LEVER (SKU: 419992-6)
Position 109 – NOISE SUPPRESSOR (SKU: 645200-1)
Position 110 – SWITCH LEVER (SKU: 419990-0)
Position 111 – SWITCH HOLDER COMPLETE (SKU: 158281-1)
Position 112 – SWITCH (SKU: 650591-7)
Position 113 – HANDLE COVER (SKU: 419980-3)
Position 114 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 116 – CORD GUARD 10 (SKU: 682573-1)
Position 117 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 118 – STRAIN RELIEF (SKU: 687169-3)
Position 119 – SPONGE (SKU: 685722-9)
Position 130 – TOOL HOLDER SET (SKU: 194080-7)
Position 131 – CAP 35 (SKU: 286263-4)
Position 132 – RING SPRING 19 (SKU: 233940-9)
Position 133 – CHUCK COVER (SKU: 418217-5)
Position 134 – STOPPER (SKU: 345333-9)
Position 135 – STEEL BALL 7.0 (SKU: 216022-2)
Position 136 – GUIDE WASHER (SKU: 345187-4)
Position 138 – FLAT WASHER 21 (SKU: 267279-8)
Position 139 – TOOL HOLDER (SKU: 324355-2)
Position 140 – STEEL BALL 6 (SKU: 216013-3)
Position 141 – TORSION SPRING 31 (SKU: 231669-1)
Position 142 – CHANGE RING (SKU: 345334-7)
Position 143 – CHANGE COVER (SKU: 418218-3)
Position 144 – STEEL BALL 5.0 (SKU: 216018-3)
Position 145 – LEAF SPRING (SKU: 345335-5)
Position 146 – FLAT WASHER 24 (SKU: 267270-6)
Position 147 – RING SPRING 21 (SKU: 233924-7)

Exploded View – HR2810T
