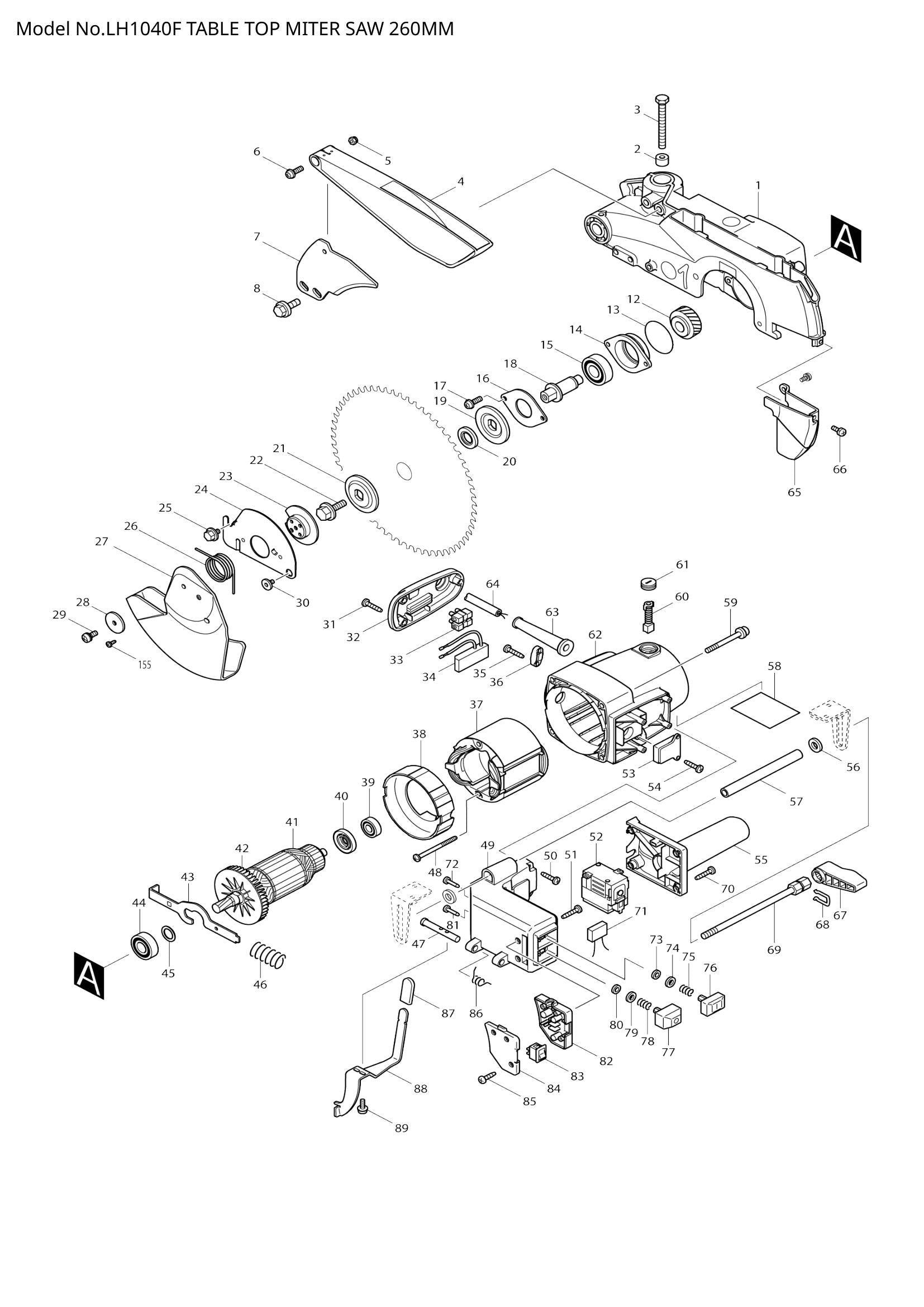

Name: Exploded View – LH1040F
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 002 – RUBBER SLEEVE 6 (SKU: 262511-5)
Position 003 – HEX. BOLT M8X75 (SKU: 251667-9)
Position 005 – HEX. LOCK NUT M5-8 (SKU: 252103-8)
Position 006 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 007 – RIVING KNIFE (SKU: 345423-8)
Position 008 – HEX. FLANGE HEAD BOLT M8X20 (SKU: 251644-1)
Position 009 – MAKITA MARK (SKU: 819064-1)
Position 011 – CAP (SKU: 421362-7)
Position 012 – HELICAL GEAR 42 (SKU: 226465-0)
Position 013 – O RING 46 (SKU: 213621-1)
Position 014 – BEARING BOX (SKU: 316821-3)
Position 015 – BALL BEARING 6203LLB (SKU: 211256-2)
Position 016 – BEARING RETAINER 64 (SKU: 285685-5)
Position 017 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 018 – SPINDLE (SKU: 322865-3)
Position 019 – FLANGE 53 (SKU: 224333-1)
Position 020 – RING 16 (SKU: 257262-3)
Position 021 – FLANGE 53 (SKU: 224333-1)
Position 022 – HEX. FLANGE HEAD BOLT M8X20 (SKU: 265355-2)
Position 023 – CENTER PLATE (SKU: 343639-9)
Position 025 – HEX. FLANGE HEAD BOLT M8X12 (SKU: 265324-3)
Position 026 – TORSION SPRING 36 (SKU: 231593-8)
Position 028 – FLAT WASHER 5 (SKU: 267136-0)
Position 030 – HEX.SOCKET HEAD BOLT M6 (SKU: 265985-9)
Position 031 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 032 – HOUSING COVER (SKU: 418620-0)
Position 033 – TERMINAL BLOCK (SKU: 654561-8)
Position 034 – SOFT START CIRCUIT (SKU: 631613-2)
Position 035 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 037 – FIELD ASS'Y 220-240V (SKU: 599519-9)
Position 038 – BAFFLE PLATE (SKU: 418621-8)
Position 042 – FAN 80 (SKU: 241909-9)
Position 043 – SHAFT LOCK (SKU: 343641-2)
Position 044 – BALL BEARING 6202LLB (SKU: 211206-7)
Position 045 – FLAT WASHER 15 (SKU: 267280-3)
Position 046 – COMPRESSION SPRING 9 (SKU: 231297-2)
Position 047 – LOCK PIN 8 (SKU: 324496-4)
Position 048 – TAPPING SCREW 5X65 (SKU: 266029-8)
Position 049 – SWITCH BOX (SKU: 418630-7)
Position 050 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 051 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 053 – CLAMP PLATE COMPLETE (SKU: 153996-5)
Position 054 – TAPPING SCREW 4X12 (SKU: 266020-6)
Position 055 – HANDLE COMPLETE (SKU: 153995-7)
Position 056 – FLAT WASHER 8 (SKU: 941201-0)
Position 057 – PIPE 9-126 (SKU: 331683-8)
Position 059 – PAN HEAD SCREW M6X60 (SKU: 911383-2)
Position 063 – CORD GUARD 9.3-85 (SKU: 682516-3)
Position 064 – POWER SUPPLY CORD 1.0-2-2.5 (SKU: 665865-3)
Position 066 – PAN HEAD SCREW M5X10 (SKU: 911206-4)
Position 067 – LEVER 54 (SKU: 272230-5)
Position 068 – RING SPRING 12 (SKU: 231955-0)
Position 069 – LOCK BOLT M8X150 (SKU: 331682-0)
Position 070 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 071 – NOISE SUPPRESSOR (SKU: 645200-1)
Position 072 – PIN (SKU: 418618-7)
Position 073 – FELT RING 6 (SKU: 443103-1)
Position 074 – FLAT WASHER 7 (SKU: 253186-1)
Position 075 – COMPRESSION SPRING 8 (SKU: 231025-5)
Position 076 – SWITCH BUTTON ON (SKU: 418616-1)
Position 077 – SWITCH BUTTON OFF (SKU: 418617-9)
Position 078 – COMPRESSION SPRING 8 (SKU: 231025-5)
Position 079 – FLAT WASHER 7 (SKU: 253186-1)
Position 080 – FELT RING 6 (SKU: 443103-1)
Position 081 – PIN (SKU: 418618-7)
Position 082 – LIGHT SWITCH BOX (SKU: 418623-4)
Position 083 – SWITCH SLE6A (SKU: 651522-9)
Position 084 – LIGHT SWITCH BOX COVER (SKU: 418624-2)
Position 085 – TAPPING SCREW 3X12 (SKU: 265893-4)
Position 086 – TORSION SPRING 9 (SKU: 231674-8)
Position 087 – CAP (SKU: 421589-9)
Position 088 – LOCK LEVER (SKU: 345427-0)
Position 089 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 090 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 091 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 092 – COUNTERSUNK HEAD SCREW M5 (SKU: 912222-9)
Position 093 – COUNTERSUNK HEAD SCREW M5 (SKU: 912222-9)
Position 094 – LEVER 54 (SKU: 272230-5)
Position 095 – RING SPRING 12 (SKU: 231955-0)
Position 096 – LOCK BOLT M8X70 (SKU: 331681-2)
Position 097 – COMPRESSION SPRING 14 (SKU: 233042-1)
Position 098 – SLEEVE 8 (SKU: 257675-8)
Position 099 – TABLE SUPPORT (SKU: 317779-9)
Position 101 – SUPPORT PLATE (SKU: 165388-6)
Position 103 – LIGHT CIRCUIT (SKU: 631611-6)
Position 104 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 105 – COMPRESSION SPRING 21 (SKU: 233415-8)
Position 106 – SCREW M5X10 (SKU: 251812-6)
Position 107 – H.S.SET SCREW(FLAT POINT)M6X (SKU: 251961-9)
Position 108 – GUARD HOLDER (SKU: 345425-4)
Position 109 – TORSION SPRING 11 (SKU: 231675-6)
Position 110 – FLAT WASHER 10 (SKU: 267070-4)
Position 111 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 112 – GUARD SHAFT (SKU: 324497-2)
Position 113 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 114 – GUARD (SKU: 345426-2)
Position 115 – STOP RING E-5 (SKU: 961018-5)
Position 116 – FLAT WASHER 6 (SKU: 253804-1)
Position 117 – RING 6 (SKU: 257163-5)
Position 118 – LINK PLATE (SKU: 344377-6)
Position 119 – HEX.SOCKET BUTTON HEAD BOL (SKU: 265984-1)
Position 120 – FLAT WASHER 7 (SKU: 253823-7)
Position 121 – RING 7 (SKU: 257162-7)
Position 122 – LEVER 100 (SKU: 416006-2)
Position 123 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 124 – HEX. BOLT M10 (SKU: 265437-0)
Position 125 – FLAT WASHER 10 (SKU: 253024-7)
Position 126 – ROD 16 (SKU: 256836-7)
Position 128 – CAP (SKU: 421867-7)
Position 129 – STOPPER PIN (SKU: 324183-5)
Position 130 – O RING 5 (SKU: 213021-5)
Position 131 – KNOB 20 (SKU: 271601-3)
Position 132 – PIN 8 (SKU: 256280-8)
Position 133 – SPRING HOLDER (SKU: 344464-1)
Position 134 – COMPRESSION SPRING 27 (SKU: 233414-0)
Position 135 – SLIDE PLATE (SKU: 343799-7)
Position 136 – POINTER (SKU: 344385-7)
Position 137 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 138 – HEX. BOLT M8X28 (SKU: 265455-8)
Position 139 – FLAT WASHER 8 (SKU: 253762-1)
Position 140 – HEX. LOCK NUT M8-13 (SKU: 252105-4)
Position 143 – HEX. BOLT M8X30 (SKU: 265488-3)
Position 148 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 149 – LEAF SPRING (SKU: 232075-3)
Position 150 – KNOCK SPRING (SKU: 344381-5)
Position 151 – GRIP 32 (SKU: 273495-2)
Position 152 – PAN HEAD SCREW M5X12 (SKU: 911213-7)
Position 153 – HEX. BOLT M8X30 (SKU: 921452-1)
Position 154 – CAP 20 (SKU: 286212-1)
Position 155 – TAPPING SCREW BIND PT3X8 (SKU: 265954-0)

Exploded View – LH1040F
