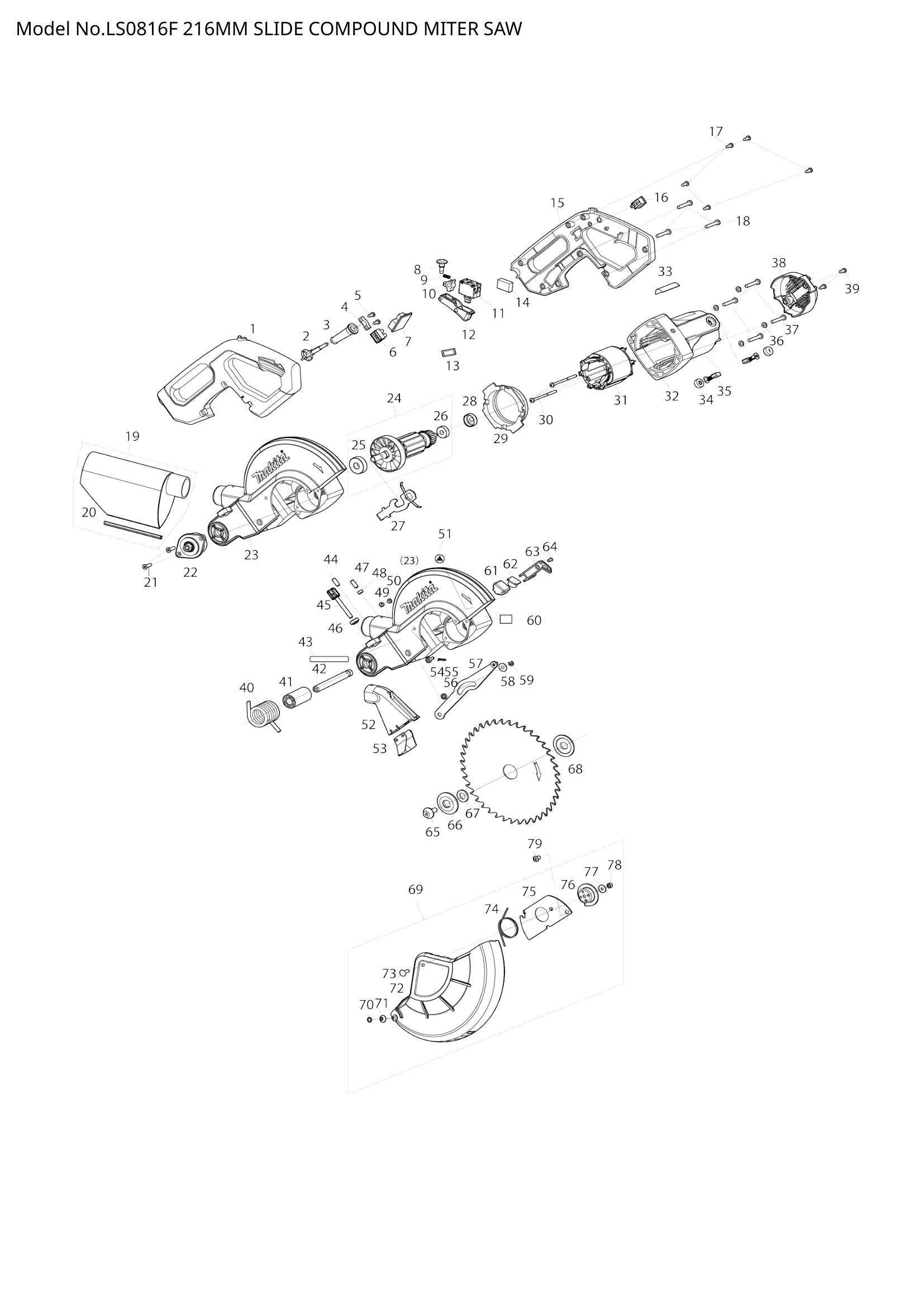

Exploded View – LS0816F

Share this product

Position 001 – HANDLE LEFT (SKU: JM00000583)
Position 002 – PW SUPPLY CORD H05VV-F 1-2 E (SKU: JM23000154)
Position 003 – CORD GUARD S (SKU: JM23100165)
Position 004 – CORD CLAMP (SKU: JM00000584)
Position 005 – TAPPING SCREW ST4.2X13 (SKU: JM00000548)
Position 006 – TERMINAL BLOCK 2P (SKU: JM23100171)
Position 007 – PW CIRCUIT FOR LED LAMP (SKU: JM00000573)
Position 008 – LOCK OFF BUTTON (SKU: JM23100177)
Position 009 – COMPRESSION SPRING (SKU: JM00000582)
Position 010 – LOCK OFF LINK ROCKER (SKU: JM00000581)
Position 011 – SWITCH (SKU: JM00000576)
Position 012 – SWITCH LEVER (SKU: JM00000575)
Position 013 – FERRITE RING (SKU: JM00000578)
Position 014 – CAPACITOR (SKU: JM23100169)
Position 015 – HANDLE RIGHT (SKU: JM00000580)
Position 016 – LAMP SWITCH (SKU: JM00000579)
Position 017 – TAPPING SCREW ST4.2X13 (SKU: JM00000548)
Position 018 – PAN HEAD SCREW M5X30 (SKU: JM00000551)
Position 019 – DUST BAG ASSY (SKU: JM00000535)
Position 020 – DUST BAG CLAMP (SKU: JM00000534)
Position 021 – FLAT HEAD SCREW M5X16 (SKU: JM27000317)
Position 022 – SPINDLE GEAR ASSY (SKU: JM00000542)
Position 025 – BALL BEARING 6201 (SKU: JM23500137)
Position 026 – BALL BEARING 608 (SKU: JM23500111)
Position 027 – SPINDLE LOCK LEVER COMPLETE (SKU: JM00000569)
Position 028 – DAMPING RING (SKU: JM23500112)
Position 029 – BUFFLE PLATE (SKU: JM00000556)
Position 030 – SELF TAPPING SCREW ST4.2X65 (SKU: JM00000555)
Position 032 – MOTOR HOUSING ASSY (SKU: JM00000599)
Position 033 – NAME PLATE EU (SKU: JM00000558)
Position 034 – BRUSH CAP (SKU: JM00000567)
Position 035 – CARBON BRUSH 2PCS SET (SKU: JM00000566)
Position 036 – FLAT WASHER 5 (SKU: JM23100007)
Position 037 – PAN HEAD SCREW M5X30 (SKU: JM00000551)
Position 038 – MOTOR END COVER (SKU: JM00000549)
Position 039 – TAPPING SCREW ST4.2X13 (SKU: JM00000548)
Position 040 – TORSION SPRING 41 (SKU: JM00000518)
Position 041 – SPRING BUSH (SKU: JM00000519)
Position 042 – PIVOT SHAFT 12X107 (SKU: JM00000497)
Position 044 – HEX SOCKET SET SCREW M6X16 (SKU: JM00000537)
Position 045 – KNOB BOLT M6X46 (SKU: JM00000444)
Position 046 – KNURLED NUT M6 (SKU: JM00000536)
Position 047 – SET SCREW M6X18 (SKU: JM00000538)
Position 048 – ANTI-LOOSEN RING (SKU: JM23100035)
Position 049 – TAPPING SCREW ST4.2X6.5 (SKU: JM00000539)
Position 050 – TAPPING SCREW ST4.2X6.5 (SKU: JM00000539)
Position 051 – CAUTION LABEL (SKU: JM00000589)
Position 052 – DUST PORT (SKU: JM00000521)
Position 053 – DUST CHUTE PLATE (SKU: JM00000520)
Position 054 – HEX SOCKET HEAD BOLT M6X18 (SKU: JM00000532)
Position 055 – R-PIN 6 (SKU: JM00000531)
Position 056 – LINK SLEEVE (SKU: JM23100098)
Position 057 – LINK PLATE COMP (SKU: JM00000522)
Position 058 – THIN FLAT WASHER 6 (SKU: JM23100071)
Position 059 – STOP RING E-5 (SKU: JM00000525)
Position 061 – LED LAMP BOX (SKU: JM00000540)
Position 062 – LED LAMP COMP (SKU: JM00000541)
Position 063 – LED WIRE COVER (SKU: JM00000526)
Position 064 – PAN HEAD SCREW M4X8 (SKU: JM23100065)
Position 065 – HEX SOCKET HEAD BOLT M8X20 (SKU: JM00000514)
Position 066 – BLADE FLANGE (SKU: JM23500038)
Position 067 – BLADE INNER LING 30.0 (SKU: JM27000100)
Position 068 – BLADE FLANGE (SKU: JM23500038)
Position 069 – LOWER BLADE GUARD ASSY (SKU: JM00000502)
Position 070 – PUSH NUT 5 (SKU: JM00000503)
Position 071 – GUARD WHEEL (SKU: JM00000504)
Position 072 – LOWER BLADE GUARD (SKU: JM00000506)
Position 073 – SQUARE NECK BOLT M5X12 (SKU: JM00000505)
Position 074 – TORSION SPRING 40 (SKU: JM00000507)
Position 075 – GUARD FIX PLATE (SKU: JM00000508)
Position 076 – BOWL PLATE (SKU: JM00000509)
Position 077 – FLAT WASHER 5L (SKU: JM00000510)
Position 078 – HEX LOCK NUT 5 (SKU: JM23100141)
Position 079 – STEPPED TRASS HEAD BOLT M6X (SKU: JM00000530)
Position 080 – WING NUT M10 (SKU: JM00000477)
Position 081 – FLAT WASHER 10 (SKU: JM23100010)
Position 082 – SLIDING ARM ASSY (SKU: JM00000485)
Position 083 – CORD REEL HOOK (SKU: JM00000501)
Position 084 – CORD CLIP (SKU: JM00000500)
Position 085 – BIG FLAT WASHER 5 (SKU: JM00000499)
Position 086 – PAN HEAD SCREW M5X16 (SKU: JM00000498)
Position 087 – KNOB BOLT M6X20 (SKU: JM00000478)
Position 088 – COMPRESSION SPRING 9X18 (SKU: JM00000479)
Position 089 – HEX LOCK NUT M10 (SKU: JM23100009)
Position 090 – FLAT WASHER 10 (SKU: JM23100010)
Position 091 – FLAT WASHER 10 (SKU: JM23100010)
Position 092 – KNOB NUT M5 (SKU: JM00000480)
Position 093 – COMPRESSION SPRING 10X32 (SKU: JM00000481)
Position 094 – BEVEL STEP STOPPER BOLT M5X (SKU: JM00000483)
Position 095 – BEVEL SCALE POINTER (SKU: JM00000482)
Position 096 – FLAT WASHER 4 (SKU: JM23100016)
Position 097 – PAN HEAD SCREW M4X8 (SKU: JM23100065)
Position 098 – STEPPED PAN HEAD SCREW M6X (SKU: JM00000517)
Position 099 – WAVE WASHER 8 (SKU: JM23100094)
Position 100 – CUTTING DEPTH ADJUSTABLE PL (SKU: JM00000516)
Position 101 – STEPPED H.S.H.BOLT M6X10 (SKU: JM00000495)
Position 102 – H.S.H. SPECIAL BOLT M10X10 (SKU: JM00000515)
Position 103 – SEALING RING (SKU: JM23100150)
Position 104 – LOCK PIN (SKU: JM00000496)
Position 105 – CORD REEL HOOK (SKU: JM00000501)
Position 106 – CORD CLIP (SKU: JM00000500)
Position 107 – BIG FLAT WASHER 5 (SKU: JM00000499)
Position 108 – PAN HEAD SCREW M5X16 (SKU: JM00000498)
Position 109 – KERF BOARD (SKU: JM00000476)
Position 110 – PAN HEAD SCREW M4X12 (SKU: JM23100033)
Position 111 – HEX SOCKET SCREW ROD M10X1 (SKU: JM00000484)
Position 112 – HEX NUT M10 (SKU: JM23000015)
Position 113 – CONNECTION SHAFT BOLT M10X (SKU: JM00000467)
Position 114 – HEX SOCKET HEAD BOLT M8X35 (SKU: JM00000451)
Position 115 – HEX. NUT M8 (SKU: JM23000028)
Position 116 – HEX. NUT M8 (SKU: JM23000028)
Position 117 – HEX SOCKET HEAD BOLT M8X35 (SKU: JM00000451)
Position 118 – HEX BOLT M10X45 (SKU: JM00000468)
Position 120 – SUPPORT ARM SCALE LABEL (SKU: JM00000470)
Position 121 – CAUTION LABEL (SKU: JM23180057)
Position 122 – SLIDING FOOT (SKU: JM00000453)
Position 123 – PAN HEAD SCREW M4X8 (SKU: JM23100065)
Position 124 – FLAT WASHER 4 (SKU: JM23100016)
Position 125 – TURN BASE POINTER (SKU: JM00000465)
Position 126 – BACK SUPPORT (SKU: JM00000454)
Position 127 – LOCK PLATE (SKU: JM00000455)
Position 128 – SPRING WASHER 4 (SKU: JM23100015)
Position 129 – PAN HEAD SCREW M4X16 (SKU: JM00000456)
Position 130 – PIN 6X50 (SKU: JM00000464)
Position 131 – TAPPING SCREW ST4.2X9.5 (SKU: JM00000460)
Position 132 – POSITION LOCK LEVER (SKU: JM00000459)
Position 133 – POSITION SPRING PLATE (SKU: JM00000457)
Position 134 – FLAT WASHER 6 (SKU: JM23100041)
Position 135 – SPRING WASHER 6 (SKU: JM23100151)
Position 137 – COMPRESSION SPRING 14.5X25 (SKU: JM00000461)
Position 138 – FOOT BOLT M8X23 (SKU: JM00000462)
Position 139 – GRIP BOLT M10X244 (SKU: JM00000463)
Position 140 – VERTICAL VISE SET (SKU: JM00000432)
Position 141 – KNOB BOLT M10X128 (SKU: JM00000475)
Position 142 – VISE ARM (SKU: JM00000474)
Position 143 – PRESSURE PLATE (SKU: JM00000473)
Position 144 – FLAT WASHER 4 XL (SKU: JM00000472)
Position 145 – SPRING WASHER 4 (SKU: JM23100015)
Position 146 – PAN HEAD SCREW M4X12 (SKU: JM23100033)
Position 147 – SUB FRNCE (SKU: JM00000448)
Position 148 – CAUTION LABEL (SKU: JM23580063)
Position 149 – KNOB BOLT M6X18 (SKU: JM00000449)
Position 150 – HEX SOCKET HEAD BOLT M8X20 (SKU: JM00000450)
Position 151 – SPRING WASHER 8 (SKU: JM23100061)
Position 152 – FLAT WASHER 8 (SKU: JM23100060)
Position 153 – RIP FENCE (SKU: JM00000447)
Position 154 – WRENCH HOLDER SLEEVE (SKU: JM00000446)
Position 156 – MITER SCALE LABEL (SKU: JM00000439)
Position 157 – KNOB BOLT M6X46 (SKU: JM00000444)
Position 158 – CAUTION LABEL (SKU: JM23180056)
Position 159 – LEFT EXTENSION TABLE (SKU: JM00000433)
Position 160 – EXTENSION PIPE 10X210 (SKU: JM00000434)
Position 161 – HEX SOCKET SET SCREW M6X8 (SKU: JM23100087)
Position 162 – PAN HEAD SCREW M4X8 (SKU: JM00000435)
Position 163 – RIGHT EXTENSION TABLE (SKU: JM00000442)
Position 164 – SET PLATE (SKU: JM00000443)
Position 165 – FLAT WASHER 6 (SKU: JM23100041)
Position 166 – HEX. LOCK NUT M6 (SKU: JM00000441)
Position 167 – PAN HEAD SCREW M6X20 (SKU: JM00000074)
Position 168 – FLAT WASHER 10 (SKU: JM23100010)
Position 169 – WAVE WASHER 10 (SKU: JM00000437)
Position 170 – FLAT WASHER 10 (SKU: JM23100010)
Position 171 – HEX LOCK NUT M10 (SKU: JM23100009)
Position 172 – RUBBER FOOT (SKU: JM00000436)
