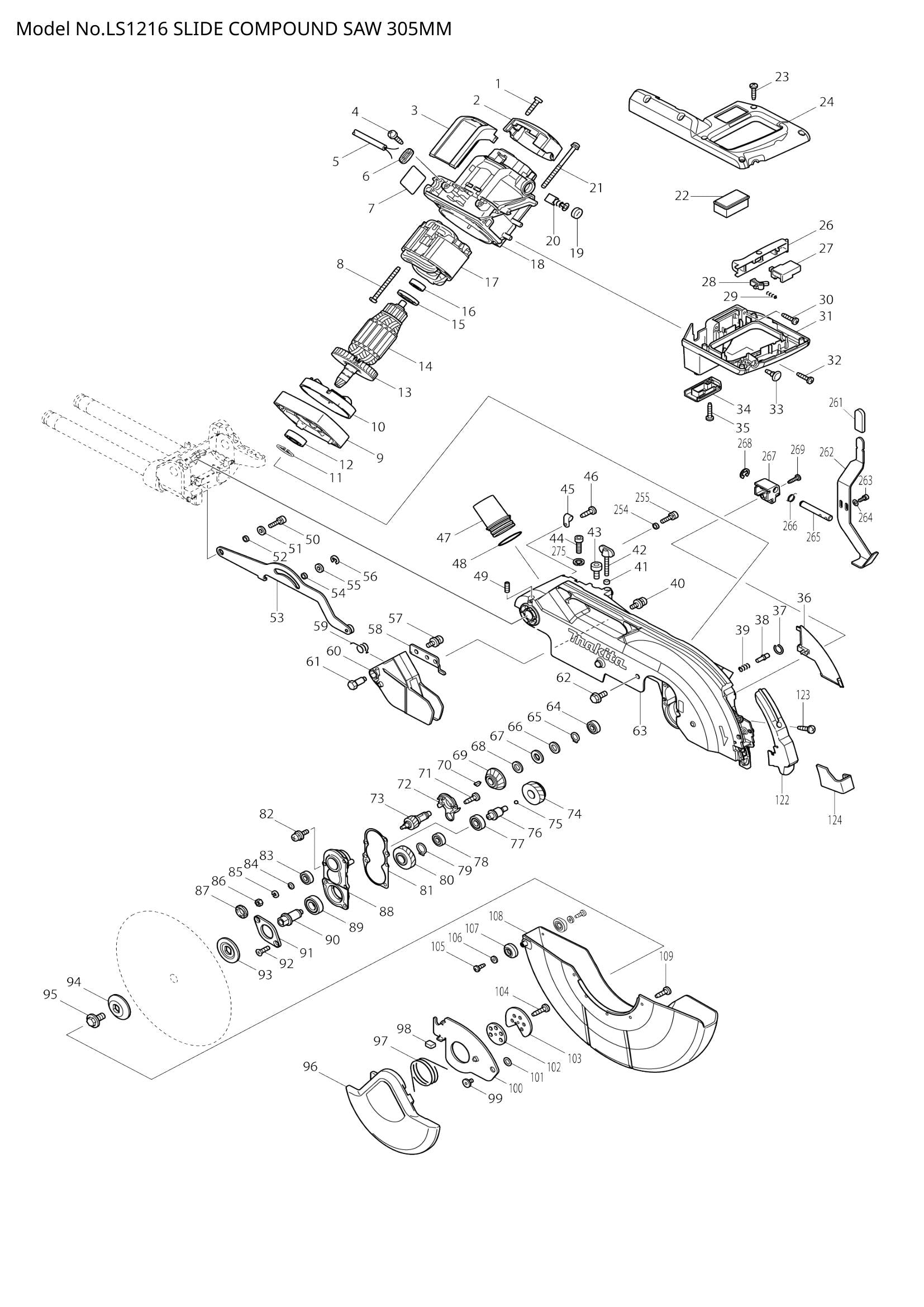

Exploded View – LS1216

Share this product

Position 001 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 002 – REAR COVER (SKU: 450999-3)
Position 003 – CONTROLLER (SKU: 631866-3)
Position 004 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 005 – POWER SUPPLY CORD 1.0-2-2.5 (SKU: 665865-3)
Position 006 – STRAIN RELIEF (SKU: 687052-4)
Position 007 – LS1216 NAME PLATE (SKU: 866946-8)
Position 009 – MOTOR BRACKET (SKU: 318471-0)
Position 010 – BAFFLE PLATE (SKU: 451194-8)
Position 011 – RETAINING RING S-17 (SKU: 961057-5)
Position 012 – BALL BEARING 6003DDW (SKU: 211275-8)
Position 013 – FAN 80 (SKU: 240001-8)
Position 014 – ARMATURE ASSEMBLY 240V (SKU: 517844-6)
Position 015 – INSULATION WASHER (SKU: 681642-5)
Position 016 – BALL BEARING 6000ZZ (SKU: 210067-2)
Position 017 – FIELD ASSEMBLY 240V (SKU: 596359-6)
Position 018 – MOTOR HOUSING COMPLETE (SKU: 158958-8)
Position 021 – PAN HEAD SCREW M6X80 WITH (SKU: 911948-0)
Position 022 – COVER (SKU: 451015-4)
Position 023 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 024 – HANDLE COVER (SKU: 450998-5)
Position 026 – SWITCH LEVER (SKU: 451003-1)
Position 027 – SWITCH TG72B-1 (SKU: 650618-3)
Position 028 – LOCK-OFF LEVER (SKU: 416356-5)
Position 029 – COMPRESSION SPRING 4 (SKU: 231026-3)
Position 030 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 031 – HANDLE COMPLETE (SKU: 140049-9)
Position 032 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 033 – SWITCH BUTTON (SKU: 451037-4)
Position 035 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 036 – LEAD COVER (SKU: 451199-8)
Position 037 – RING SPRING 8 (SKU: 231928-3)
Position 038 – PIN 6 (SKU: 256633-1)
Position 039 – COMPRESSION SPRING 7 (SKU: 231240-1)
Position 040 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 041 – URETHANE RING 5 (SKU: 262001-8)
Position 042 – SCREW M6X43 (SKU: 265717-4)
Position 043 – HEX SOCKET HEAD BOLT M8X20 (SKU: 266488-6)
Position 044 – HEX. SOCKET HEAD BOLT M6X20 (SKU: 922332-4)
Position 045 – STRAIN RELIEF (SKU: 687042-7)
Position 046 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 047 – DUST NOZZLE (SKU: 419277-0)
Position 048 – O RING 35 (SKU: 213460-9)
Position 049 – H.S.SET SCREW(FLAT POINT)M6X (SKU: 266321-2)
Position 050 – HEX. SOCKET HEAD BOLT M6X20 (SKU: 922331-6)
Position 051 – FLAT WASHER 6 (SKU: 253804-1)
Position 052 – RING 6 (SKU: 257163-5)
Position 053 – LINK PLATE COMPLETE (SKU: 140164-9)
Position 054 – RING 6 (SKU: 257163-5)
Position 055 – FLAT WASHER 6 (SKU: 253804-1)
Position 056 – STOP RING E-5 (SKU: 961018-5)
Position 057 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 058 – GUARD HOLDER (SKU: 346050-4)
Position 059 – TORSION SPRING 11 (SKU: 231675-6)
Position 061 – GUARD SHAFT (SKU: 325645-6)
Position 063 – BLADE CASE COMPLETE (SKU: 140152-6)
Position 064 – BALL BEARING 608DDW (SKU: 210005-4)
Position 065 – RETAINING RING (EXT) S-12 (SKU: 961052-5)
Position 066 – FLAT WASHER 12 (SKU: 253744-3)
Position 067 – RUBBER WASHER 12 (SKU: 261104-5)
Position 068 – FLAT WASHER 12 (SKU: 253744-3)
Position 069 – SPIRAL BEVEL GEAR 32 (SKU: 227550-2)
Position 070 – WOODRUFF KEY 4 (SKU: 254001-2)
Position 071 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 072 – GREASE HOLDER (SKU: 451002-3)
Position 073 – HELICAL GEAR 14 (SKU: 227701-7)
Position 074 – HELICAL GEAR 27 (SKU: 227702-5)
Position 075 – STEEL BALL 4 (SKU: 216024-8)
Position 076 – GEAR SHAFT (SKU: 325643-0)
Position 077 – BALL BEARING 6000ZZ (SKU: 210067-2)
Position 078 – BALL BEARING 608DDW (SKU: 210005-4)
Position 079 – RETAINING RING S-15 (SKU: 961055-9)
Position 080 – HELICAL GEAR 28 (SKU: 227703-3)
Position 081 – GASKET (SKU: 442147-8)
Position 082 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 083 – BALL BEARING 608DDW (SKU: 210005-4)
Position 084 – FLAT WASHER 5 (SKU: 267010-2)
Position 086 – HEX. NUT M5 (SKU: 931202-6)
Position 087 – BEARING RETAINER 14-23 (SKU: 285847-5)
Position 088 – BEARING BOX COMPLETE (SKU: 158957-0)
Position 089 – BALL BEARING 6002DDW (SKU: 211236-8)
Position 090 – SPINDLE (SKU: 325644-8)
Position 091 – BEARING RETAINER 51 (SKU: 285732-2)
Position 094 – OUTER FLANGE 62 (SKU: 224433-7)
Position 096 – SAFETY COVER A COMPLETE (SKU: 158959-6)
Position 097 – TORSION SPRING 45 (SKU: 233554-4)
Position 098 – CUSHION (SKU: 424190-9)
Position 099 – HEX.SOCKET HEAD BOLT M6 (SKU: 265985-9)
Position 100 – CENTER COVER (SKU: 346048-1)
Position 101 – WAVE WASHER 10 (SKU: 253932-2)
Position 102 – CENTER WASHER (SKU: 344539-6)
Position 103 – CENTER PLATE (SKU: 346047-3)
Position 104 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 105 – TAPPING SCREW 4X12 (SKU: 266020-6)
Position 106 – FLAT WASHER 4 (SKU: 941051-3)
Position 107 – ROLLER (SKU: 424193-3)
Position 108 – SAFETY COVER B (SKU: 451197-2)
Position 109 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 122 – BLADE CASE COVER (SKU: 451196-4)
Position 123 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 124 – PROTECTOR (SKU: 451038-2)
Position 127 – + PAN HEAD SCREW M4 (SKU: 265026-1)
Position 128 – FLAT WASHER 5 (SKU: 941102-2)
Position 129 – COMPRESSION SPRING 7 (SKU: 233267-7)
Position 130 – FLAT WASHER 5 (SKU: 941102-2)
Position 131 – LEVER 45 (SKU: 272261-4)
Position 132 – JOINT (SKU: 325651-1)
Position 133 – FLAT WASHER 6 (SKU: 253804-1)
Position 135 – GUIDE PLATE (SKU: 346058-8)
Position 137 – THUMB SCREW M6X18 (SKU: 265783-1)
Position 139 – H.S.H.BOLT M8X25 WITH WR (SKU: 922443-5)
Position 140 – PIN 4 (SKU: 256226-4)
Position 141 – H.S.SET SCREW(FLAT POINT)M5X (SKU: 266264-8)
Position 142 – THUMB SCREW M6X18 (SKU: 265783-1)
Position 145 – STOPPER ARM (SKU: 346049-9)
Position 146 – WAVE WASHER 8 (SKU: 253948-7)
Position 147 – FLAT WASHER 8 (SKU: 253835-0)
Position 148 – + PAN HEAD SCREW M6 (SKU: 251267-5)
Position 149 – SLEEVE 17 (SKU: 451202-5)
Position 150 – ROD 16 (SKU: 323740-6)
Position 151 – KNOB 20 (SKU: 271601-3)
Position 152 – O RING 7 (SKU: 213011-8)
Position 153 – STOPPER PIN (SKU: 322629-5)
Position 154 – TORSION SPRING 40 (SKU: 233542-1)
Position 155 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 156 – STOPPER LEVER COMPETE (SKU: 158962-7)
Position 158 – THUMB SCREW M6X18 (SKU: 265783-1)
Position 159 – COMPRESSION SPRING 7 (SKU: 231240-1)
Position 160 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 161 – ARM COMPLETE (SKU: 140155-0)
Position 163 – H.S.SET SCREW(CUP POINT)M6X8 (SKU: 266208-8)
Position 164 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 165 – STRAIN RELIEF (SKU: 687042-7)
Position 166 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 167 – HEX. LOCK NUT M10-17 (SKU: 252130-5)
Position 168 – FLAT WASHER 10 (SKU: 253024-7)
Position 169 – THRUST NEEDLE CAGE 1024 (SKU: 216413-7)
Position 170 – LEVER 105 (SKU: 451019-6)
Position 171 – HEX BOLT M10 (SKU: 265589-7)
Position 172 – FLAT WASHER 10 (SKU: 253024-7)
Position 173 – RELEASE BUTTON (SKU: 415208-7)
Position 174 – COMPRESSION SPRING 12 (SKU: 233031-6)
Position 175 – HEX SOCKET HEAD BOLT M8X20 (SKU: 266488-6)
Position 176 – STOPPER (SKU: 318405-3)
Position 177 – RETAINING RING (EXT) S-12 (SKU: 961052-5)
Position 178 – FLAT WASHER 12 (SKU: 253744-3)
Position 179 – TORSION SPRING 14 (SKU: 231646-3)
Position 180 – RUBBER RING 9 (SKU: 262158-5)
Position 181 – PLATE (SKU: 346071-6)
Position 182 – HEX SOCKET HEAD BOLT M8X20 (SKU: 266488-6)
Position 183 – ARM COVER (SKU: 451200-9)
Position 184 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 185 – POINTER (SKU: 343678-9)
Position 186 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 187 – ARM HOLDER COMPLETE (SKU: 158964-3)
Position 188 – HEX SOCKET HEAD BOLT M8X20 (SKU: 266488-6)
Position 189 – STOP RING E-4 (SKU: 961011-9)
Position 190 – CAM (SKU: 451044-7)
Position 191 – ROD 6 (SKU: 325656-1)
Position 192 – LEVER 22 (SKU: 272262-2)
Position 193 – PAN HEAD SCREW M4X10 WITH (SKU: 911113-1)
Position 194 – COMPRESSION SPRING 6 (SKU: 234122-6)
Position 195 – LOCK PIN 8 (SKU: 325865-2)
Position 196 – LEAF SPRING (SKU: 232250-1)
Position 197 – CENTER SHAFT (SKU: 325646-4)
Position 198 – POSITION PLATE (SKU: 451039-0)
Position 199 – ARM HOLDER COVER (SKU: 451070-6)
Position 200 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 201 – SQUARE ROD COMPLETE (SKU: 158967-7)
Position 202 – HEX.BOLT M5X30 (SKU: 925251-3)
Position 203 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 204 – KERF BOARD (SKU: 451201-7)
Position 205 – HEX BOLT M8X45 (SKU: 265585-5)
Position 206 – FLAT WASHER 8 (SKU: 253762-1)
Position 207 – TURN BASE COMPLETE (SKU: 140166-5)
Position 208 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 209 – INDICATION PLATE (SKU: 451009-9)
Position 210 – RACK BLOCK (SKU: 451011-2)
Position 211 – TAPPING SCREW 4X14 (SKU: 266385-6)
Position 212 – FLAT WASHER 4 (SKU: 941051-3)
Position 213 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 214 – SLIDE LOCK PLATE (SKU: 346052-0)
Position 215 – CAP (SKU: 286275-7)
Position 216 – STOP RING E-7 (SKU: 961013-5)
Position 217 – CAM (SKU: 313165-2)
Position 218 – COMPRESSION SPRING 11 (SKU: 231131-6)
Position 219 – FLAT WASHER 10 (SKU: 267047-9)
Position 220 – GRIP 50 (SKU: 273666-1)
Position 221 – PIN HOLDER (SKU: 318410-0)
Position 222 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 223 – LOCK LEVER (SKU: 451010-4)
Position 224 – LOCK LEVER PLATE (SKU: 345272-3)
Position 225 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 226 – H.S. BINDING HEAD SCREW M6X (SKU: 266505-2)
Position 228 – MITER LOCK PLATE A (SKU: 346094-4)
Position 229 – COMPRESSION SPRING 13 (SKU: 234104-8)
Position 230 – SHOULDER SCREW M5 (SKU: 266306-8)
Position 231 – COMPRESSION SPRING 6 (SKU: 231325-3)
Position 232 – PIN 3 (SKU: 256158-5)
Position 233 – LOCK PIN 6 (SKU: 325695-1)
Position 234 – LINEAR BEARING BOX COMPLET (SKU: 158968-5)
Position 235 – SPUR GEAR 43 (SKU: 451018-8)
Position 236 – LEAF SPRING (SKU: 232249-6)
Position 237 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 238 – HEX. SOCKET HEAD BOLT M8X25 (SKU: 922441-9)
Position 239 – FOOT (SKU: 421845-7)
Position 240 – FLAT WASHER 4 (SKU: 267195-4)
Position 241 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 243 – CAUTION LABEL (SKU: 810495-7)
Position 246 – CAUTION LABEL (SKU: 817283-3)
Position 247 – MITER SCALE PLATE (SKU: 816920-6)
Position 248 – SLIDE PLATE (SKU: 451012-0)
Position 249 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
Position 252 – CAUTION LABEL (SKU: 817283-3)
Position 254 – SLEEVE 6 (SKU: 257785-1)
Position 255 – HEX. SOCKET HEAD BOLT M5X18 (SKU: 922226-3)
Position 256 – STEEL BALL 4 (SKU: 216024-8)
Position 257 – FLAT WASHER 4 (SKU: 253874-0)
Position 258 – TAPPING SCREW BIND CT 4X20 (SKU: 266042-6)
Position 261 – CAP (SKU: 421589-9)
Position 262 – LOCK LEVER (SKU: 346097-8)
Position 263 – HEX. SOCKET HEAD BOLT M4X10 (SKU: 922111-0)
Position 264 – FLAT WASHER 4 (SKU: 941051-3)
Position 265 – ROD 8 (SKU: 325664-2)
Position 266 – TORSION SPRING 8 (SKU: 231633-2)
Position 267 – ROD HOLDER (SKU: 451129-9)
Position 268 – STOP RING E-6 (SKU: 961012-7)
Position 269 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 271 – MITER LOCK PLATE B COMPLETE (SKU: 140165-7)
Position 272 – PIN 6 (SKU: 256246-8)
Position 273 – PLATE (SKU: 346096-0)
Position 274 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 276 – H.S.SET SCREW(FLAT POINT)M4X (SKU: 266318-1)
Position 277 – THIN WASHER 14 (SKU: 253313-0)
Position 280 – DUST FILTER (SKU: 424438-9)

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Country

Province

Zip code

Recover password

Create my account

Exploded View – LS1216

Description

Payment & Security

Estimate shipping

Customer Reviews

You may also like

Recently viewed
