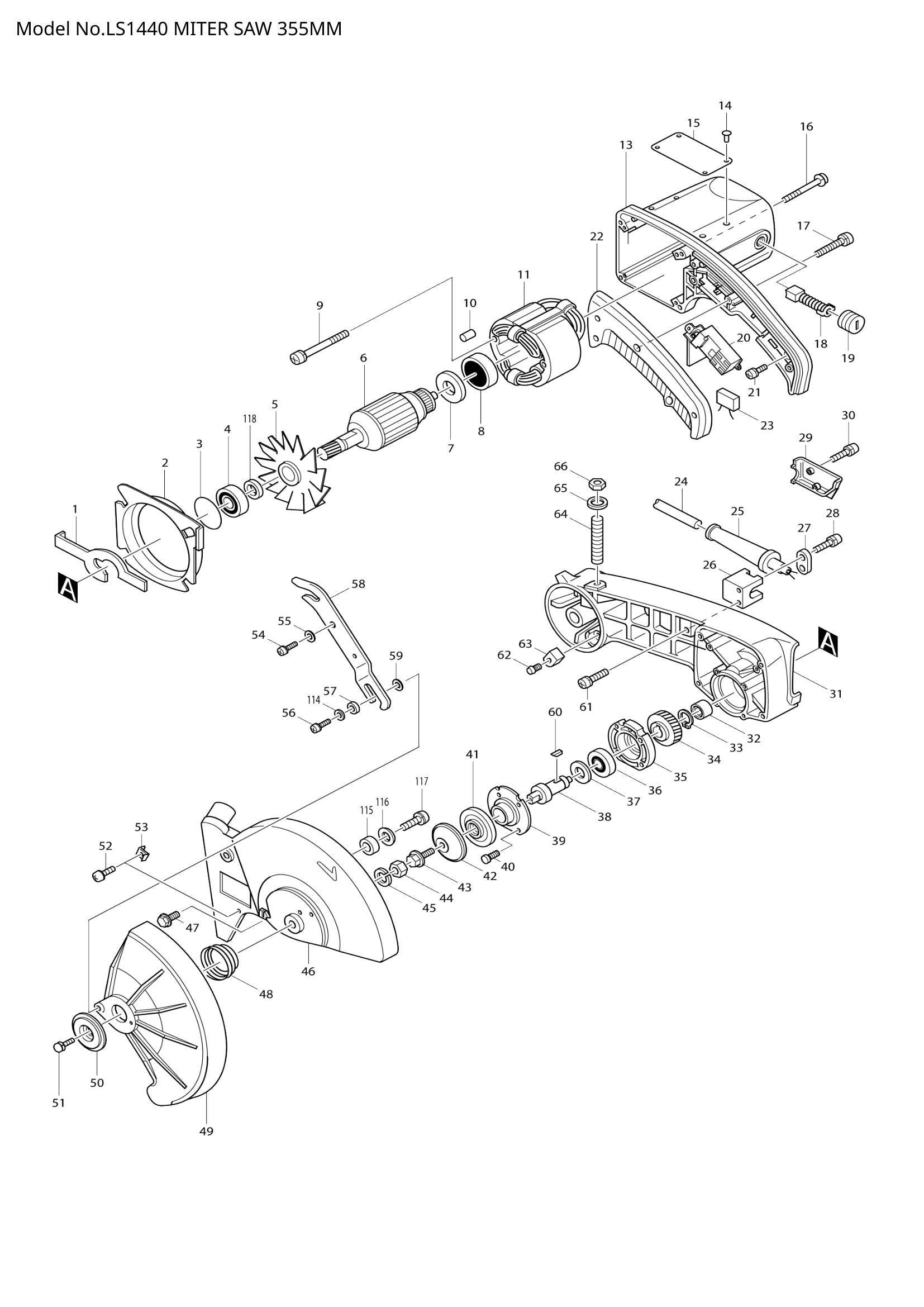

Name: Exploded View – LS1440
Brand: Makita
Availability: InStock

Roll over image to zoom in Click on image to zoom

Position 001 – SHAFT LOCK (SKU: 163100-8)
Position 002 – BAFFLE PLATE (SKU: 411466-3)
Position 003 – O RING 32 (SKU: 213459-4)
Position 007 – INSULATION WASHER (SKU: 681623-9)
Position 008 – BALL BEARING 6200LB (SKU: 211068-3)
Position 010 – RUBBER PIN 4 (SKU: 263013-4)
Position 016 – + PAN HEAD SCREW M5X80 (SKU: 251335-4)
Position 017 – PAN HEAD SCREW M4X30 (SKU: 911158-9)
Position 021 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 022 – HANDLE COVER (SKU: 410836-3)
Position 028 – PAN HEAD SCREW M4X18 (SKU: 911133-5)
Position 029 – CLAMP COVER (SKU: 411467-1)
Position 030 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 032 – NEEDLE BEARING 1212 (SKU: 212113-7)
Position 033 – RETAINING RING S-20 (SKU: 961060-6)
Position 035 – BEARING BOX (SKU: 315055-5)
Position 036 – BALL BEARING 6204LLB (SKU: 211306-3)
Position 037 – THIN WASHER 20 (SKU: 253327-9)
Position 039 – BEARING RETAINER 72 (SKU: 285649-9)
Position 040 – COUNTERSUNK HEAD SCREW M5 (SKU: 912231-8)
Position 044 – HEX. NUT M6 (SKU: 931302-2)
Position 045 – SPRING WASHER 6 (SKU: 942151-2)
Position 047 – HEX. FLANGE HEAD BOLT M8X12 (SKU: 265324-3)
Position 048 – SPRING 30 (SKU: 231939-8)
Position 050 – CENTER PLATE (SKU: 343358-7)
Position 051 – CAP SQUARE NECK BOLT M6X12 (SKU: 923311-5)
Position 052 – PAN HEAD SCREW M5X10 (SKU: 911206-4)
Position 053 – BLADE STOPPER (SKU: 343492-3)
Position 054 – + PAN HEAD SCREW M8 (SKU: 251333-8)
Position 055 – FLAT WASHER 10 (SKU: 253878-2)
Position 056 – + PAN HD. SCREW M8 (SKU: 251339-6)
Position 057 – RING 10 (SKU: 257146-5)
Position 059 – FLAT WASHER 8 (SKU: 253731-2)
Position 060 – KEY 4 (SKU: 254203-0)
Position 061 – PAN HEAD SCREW M4X14 (SKU: 911121-2)
Position 063 – CUSHION (SKU: 411479-4)
Position 064 – -SCREW (FLAT POINT)M10X80 (SKU: 251959-6)
Position 065 – FLAT WASHER 10 (SKU: 941252-3)
Position 066 – HEX. NUT M10 (SKU: 931501-6)
Position 067 – HEX. BOLT M10X30 (SKU: 921551-9)
Position 069 – SUPPORTER (SKU: 163279-5)
Position 070 – HEX. SOCKET HEAD BOLT M6X20 (SKU: 922331-6)
Position 071 – SET SCREW M10 (SKU: 322144-9)
Position 072 – HEX. BOLT M16 (SKU: 251698-8)
Position 073 – FLAT WASHER 16 (SKU: 253771-0)
Position 075 – TORSION SPRING 33 (SKU: 231533-6)
Position 076 – HANDLE LATCH (SKU: 341926-0)
Position 077 – WAVE WASHER 8 (SKU: 253948-7)
Position 078 – + PAN HEAD SCREW M8 (SKU: 251298-4)
Position 079 – FLAT WASHER 16 (SKU: 253771-0)
Position 080 – HEX. NUT M16-24 (SKU: 252044-8)
Position 083 – SET PLATE (SKU: 312511-6)
Position 084 – HOLDER (SKU: 322027-3)
Position 085 – SCREW M6X13 (SKU: 251804-5)
Position 086 – PAN HEAD SCREW M6X14 (SKU: 911317-5)
Position 087 – FLAT WASHER 6 (SKU: 253047-5)
Position 088 – VISE PLATE (SKU: 315891-9)
Position 089 – FLAT WASHER 12 (SKU: 253744-3)
Position 090 – NUT HOLDER (SKU: 341912-1)
Position 091 – SET PLATE (SKU: 342967-9)
Position 092 – PROTECTER (SKU: 341911-3)
Position 093 – RELEASE NUT R (SKU: 321490-7)
Position 094 – RELEASE NUT L (SKU: 321491-5)
Position 096 – KNOB 45 (SKU: 271275-0)
Position 097 – PAN HEAD SCREW M5X14 (SKU: 911216-1)
Position 098 – GRIP 37 (SKU: 273436-8)
Position 099 – PAN HEAD SCREW M4X8 (SKU: 911108-4)
Position 100 – INDICATION LABEL (SKU: 816173-7)
Position 101 – PLATE (SKU: 342823-3)
Position 102 – LATCH PIN (SKU: 321981-8)
Position 103 – PAN HEAD SCREW M5X35 (SKU: 911256-9)
Position 104 – HEX. BOLT M8X35 (SKU: 921456-3)
Position 105 – LEAF SPRING (SKU: 232093-1)
Position 106 – LATCH SPRING (SKU: 343359-5)
Position 107 – TURNING STAY (SKU: 311795-3)
Position 110 – HOLDER (SKU: 322027-3)
Position 111 – HEX. SOCKET HEAD BOLT M10X4 (SKU: 922562-7)
Position 112 – SPRING WASHER 10 (SKU: 942251-8)
Position 113 – TURN BASE (SKU: 311796-1)
Position 114 – FLAT WASHER 10 (SKU: 253878-2)
Position 115 – RUBBER RING 12 (SKU: 262044-0)
Position 116 – FLAT WASHER 6 (SKU: 253011-6)
Position 117 – PAN HEAD SCREW M5X14 (SKU: 911216-1)
Position 118 – WASHER 15 (SKU: 267710-4)
Position 400 – SOCKET WRENCH 13 (SKU: 782212-4)
Position 402 – DUST BAG ASS'Y (SKU: 122330-0)
Position 403 – FASTENER (SKU: 410602-8)
Position 900 – TUBE HOLDER (SKU: 321140-4)
Position 901 – PAN HEAD SCREW M4X8 (SKU: 911106-8)
Position 908 – LOCK LEVER (SKU: 164836-2)
Position 909 – COMPRESSION SPRING 9 (SKU: 231297-2)
Position 910 – LOCK PLATE (SKU: 165129-0)
Position 911 – + BINDING HEAD SCREW M6 (SKU: 251362-1)
Position 912 – CHOKE COIL (SKU: 646071-9)
Position 913 – PROTECTOR R (SKU: 416437-5)
Position 914 – PROTECTOR L (SKU: 416438-3)
Position 915 – GUARD (SKU: 345694-7)
Position 916 – SAFETY COVER (SKU: 345196-3)
Position 917 – TAPPING SCREW 4X14 (SKU: 266192-7)
Position 918 – TAPPING SCREW 4X14 (SKU: 266192-7)
Position 919 – PAN HEAD SCREW M4X8 (SKU: 911108-4)
Position 920 – H.S.SET SCREW(FLAT POINT)M6X (SKU: 266225-8)
Position 921 – SCREW M5X20 (SKU: 251896-4)
Position 922 – VISE ASS'Y (SKU: 122540-9)
